Indoor Motion Detector
Installation guide
INTRODUCTION
unum wireless is a digital Dual-Optic Motion Detector available in 2 versions, with and without Pet
Immunity up to 10 kg.
The Motion sensor is a dual PIR Digi Pyro™ with high Quality EvenEye™ Lens.
Thanks to the Bi-Directional wls Technology, the range selection (6 or 12 m.) and the number of impulses
programmable directly from the configuration software of lares 4.0 control panel, with no need of selecting
jumpers or annoying dip switches; furthermore it's possible to modify the configuration with no need to re-
open it.
Additionally, it is possible to deactivate the PIR sensor when the system is disarmed (default setting) so as to
reduce drastically the current consumption with consequent increase of the battery life.
Instead, with particular reference to Home-Automation applications, it is possible to program the PIR sensor
to be always powered.

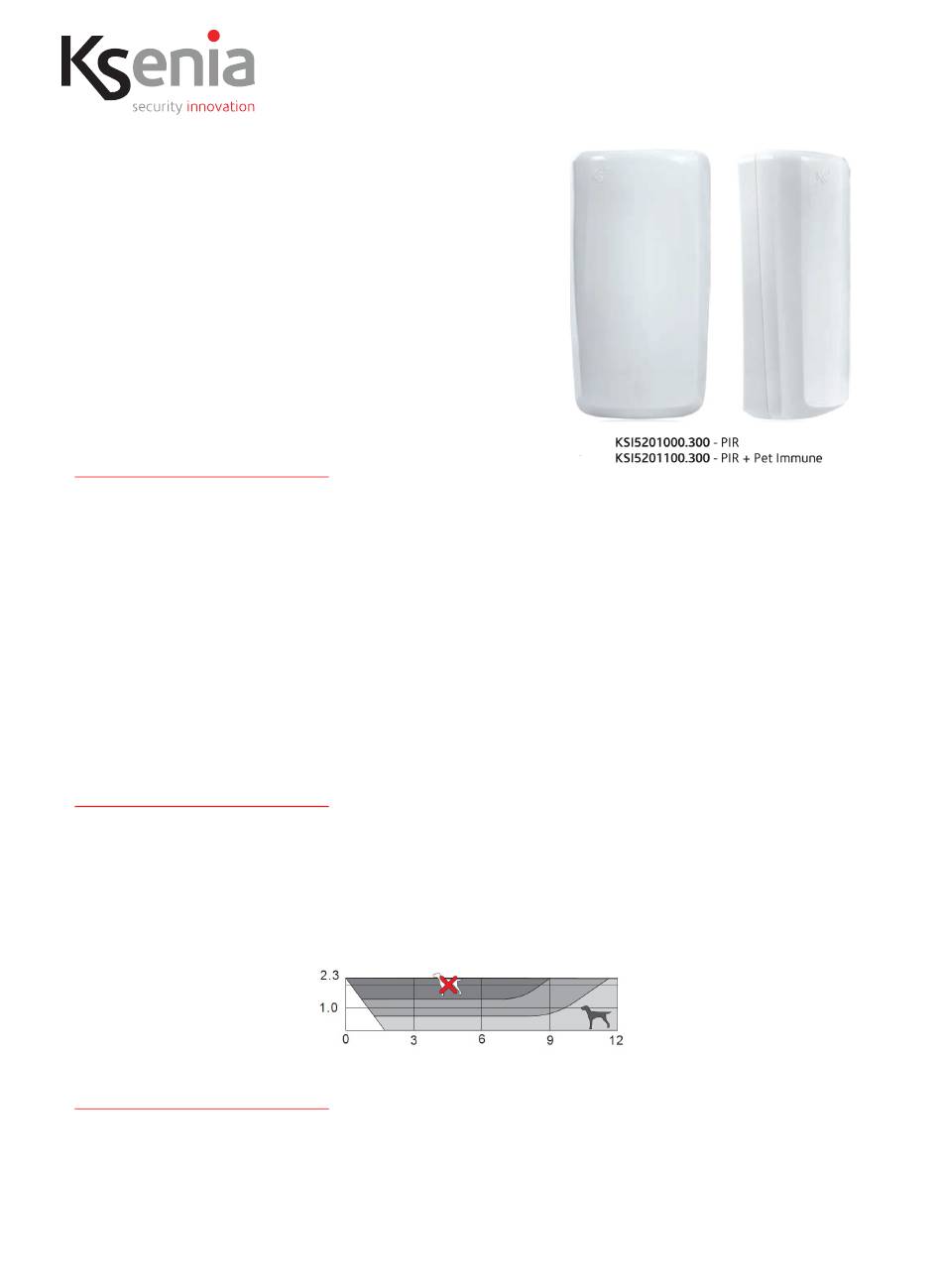

PET IMMUNITY (for KSI5201100.300)
The unum wls is designed to allow the presence of pets (10kg or lighter) without signaling an alarm. NOTE:
pets come in many varieties. Some pets (especially larger ones with very short hair), even if lighter than
10kg, may produce enough infrared radiation to cause alarms. It's highly recommended to test the sensor
with individual pets, in order to confirm lack of alarm.
See diagram below.
WALK TEST
The Walk-Test mode is activated every time you insert the battery and close the front cover. To enter this
mode when the device is already installed, you have to open the front cover, disconnect the battery then
reverse the procedure (insert the battery and close the front cover). During the Walk-Test, which has a
code R28009.100en
www.kseniasecurity.com
ed.04/2020
