Summary of Contents for Ksenia unum

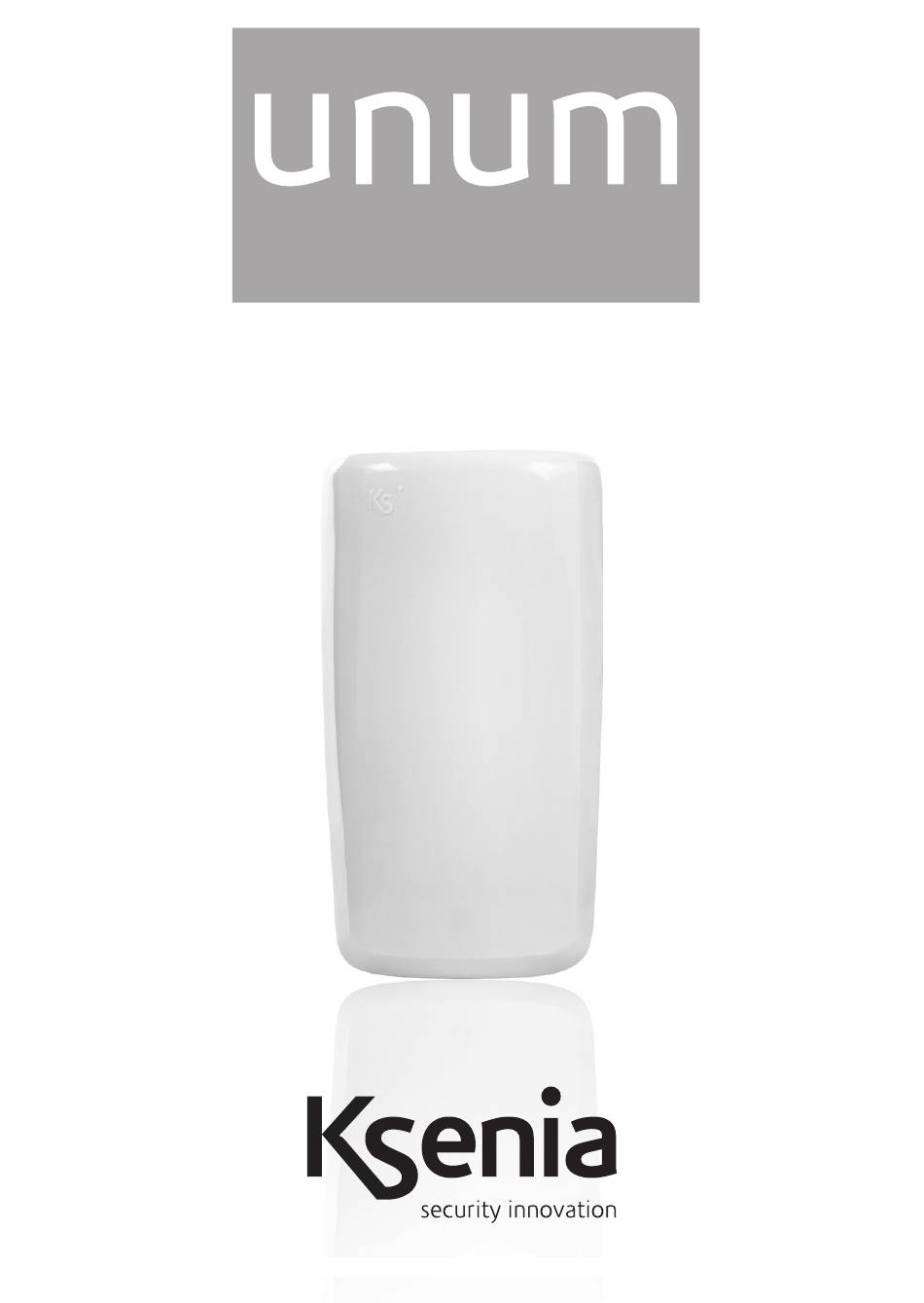

- Page 1 KSI5102000.300 KSI5102100.300 + Pet Immune KSI5102010.300 + Antimask KSI5102110.300 + Pet Immune + Antimask DUAL-TECHNOLOGY MOTION DETECTOR Installation manual...
- Page 2 DESCRIPTION Motion Detectors are professional state-of-the-art motion sensors unum engineered with the world’s best components and materials. Every aspect of these sensors provides the most reliable motion sensing, yet with freedom from false alarms. Additionally, the series introduces to the market the only sensors with a trendy unum invisible lens completely integrated into the front cover, thanks to E.L.T.
-
Page 3: Technical Data
(especially larger ones with very short hair), even if lighter than 10kg, may produce enough infrared radiation to cause alarms. DT-PI Motion Detectors UNUM users are strongly advised to test the sensor with their own pets, in order to verify that the unum will not signal an alarm when The diagram below shows the ’s zones... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. The wall temperature have to be similar to walls/floor of monitored area 2. The sensor have to be aimed away from windows and reflected sunlight 3. The sensor have to be aimed away from heaters or heater/cooler outlets 4. - Page 5 RED ALARM LED INDICATOR OPERATION unum DT Sensor State LED Display Warm-up if LED is enabled Alarm ON 5 seconds test mode if LED is enabled ON 5 seconds Alarm if LED is enabled Flashing Fault / Mask if LED is enabled...
-
Page 6: Parts Identification
PARTS IDENTIFICATION Microwave Module Connection Terminals Walk Test LED Trimmer Microwave Rotate clockwise to increase range of microwave detection PCBA placing indicator Signaling LED LED ON / OFF Programming Jumpers End-of-line protection* (remove the jumpers in case you don’t want use the integrated end-of-line resistances) Opening Tamper •... -
Page 7: Specifications
SPECIFICATIONS Optical view pattern side view in meters Supevised Zone Microwave Detection Area Long Range Short Range Medium Range Supevised Zone Microwave Detection Area Long Range Short Range Medium Range Optical view pattern top view in meters FOV - Fieled View Microwave detection area... -
Page 8: Sensor Disassembly
SENSOR DISASSEMBLY In slot at sensor bottom, use screwdriver to push inward (1). Remove cover (2). Push outward on PC board latch at sensor base right side. Using PC board as handle, gently lift PC board right side and remove. (3). Installation height: 2,3 m. -
Page 9: Base Hole Preparation
BASE HOLE PREPARATION 1. Wall installation 2. Corner installation 3. Bracket installation 4. Removal Tamper Note: All fixing devices required for the proper installation are included in the package. In order to maintain the conformities listed on page 10, the detector has to be installed WITHOUT bracket... - Page 10 WIRING 1. Connection with Ksenia panel (triple balancing) CETRALE PANEL MASK ALARM TAMPER 2. Connection with Ksenia panel (2 parallel EOL resistors) MASK CETRALE PANEL ALARM TAMPER * Only on Antimasking versions...
- Page 11 1141 Budapest, Fogarasi út 77. 1095 Budapest, Mester u. 34. Tel.: *220-7940, 220-7814, 220-7959, Tel.: *218-5542, 215-9771, 215-7550, 216-7017, 216-7018 Fax: 218-5542 220-8881, 364-3428 Fax: 220-7940 Mobil: 30 531-5454, 30 939-9989 Mobil: 30 940-1970, 30 959-0930 www.delton.hu E-mail: info@delton.hu Web: www.delton.hu...
