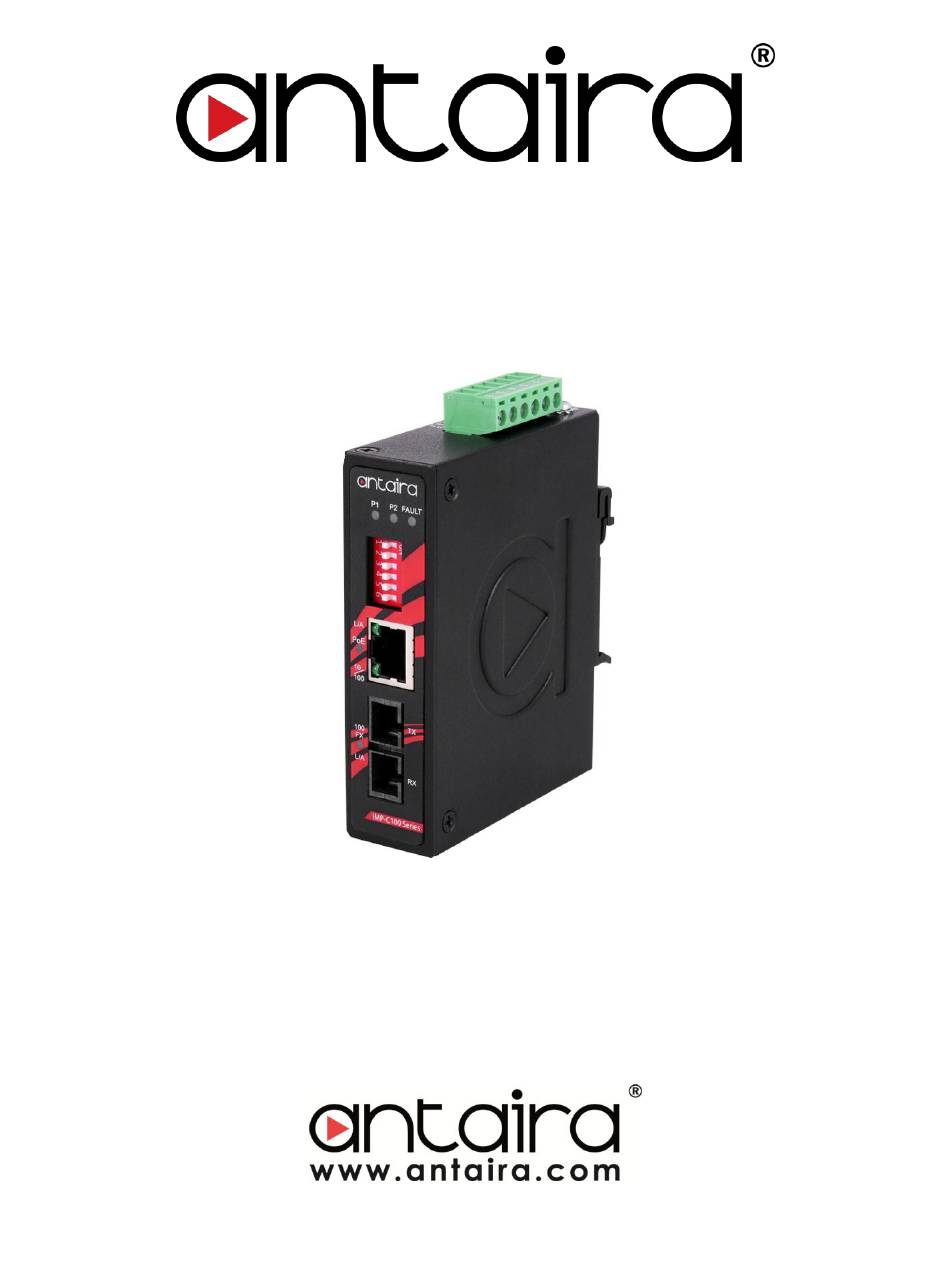

- Page 1 IMP-C100-XX Series 10/100TX to 100FX Industrial Media Converter with SC/ST Connector and PoE Injector Hardware Manual Version 1.1 (June 2025)
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows, and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 Increase the separation between the equipment and receiver. ● ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Page 4 IMP-C100-ST-M IMP-C100-ST-M-T IMP-C100-ST-S3 IMP-C100-ST-S3-T IMP-C100-WA-S2 IMP-C100-WA-S2-T IMP-C100-WB-S2 IMP-C100-WB-S2-T This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel 2.4 LED Indicators... -
Page 6: Overview
IMP-C100-XX Series - Hardware Manual - v1.1 1 Overview Antaira Technologies’ IMP-C100-XX series is a compact IP30 rated Ethernet-to-fiber media converter featuring a 10/100TX Ethernet port that support IEEE 802.3at high power PoE that can supply up to 30 watts, and a fixed fiber interface supporting ST and SC connectors depending on the model. There are Multi-mode and Single-mode models to support applications with a variety of fiber distances and types. -
Page 7: Package Contents
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 1.2 Package Contents IMP-C100-XX(-T) Quick Installation Guide Wall mounting bracket set with screws DC cable - 18AWG & DC jack 5.5 x 2.1mm **Wire: White (+) / Black (-) Dust cover set 1.3 Safety Precaution... - Page 8 Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 Warning Labels The caution label means that you should check certain information on the user manual when working Figure 1.1 with the device. (Shown in Étiquettes d'avertissement L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel...
-
Page 9: Hardware Description
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 2 Hardware Description 2.1 Physical Dimensions Figure 2.1 , below, shows the physical dimensions of this product series: (W x D x H) is 26mm x 95mm x 75mm... -
Page 10: Front View Panel
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 2.2 Front View Panel Figure 2.2 , below, shows the front panel of the product series: Grounding Screw 6-Pin Removal Terminal Block (Power Input) LED for Power 1, Power 2, and Fault DIP Switch LAN Port –... -
Page 11: Led Indicators
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial media converter that display the power status and network status. Each LED indicator has a different color and has its specific Table 2.1... -
Page 12: Dip Switch
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 2.5 DIP Switch There are 6 pins on DIP-switch on the front panel for setting LFP (Link Fault Pass) and Table 2.2 transmission control setup. The default setting for all DIP switches is “OFF”. See below for more details. -
Page 13: Ethernet Ports
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 OFF: Set copper port transmission speed at Full-Duplex (default) Caution: If changing the current DIP-switch setting, the device should be powered off and then powered on again to make the setting effective. -
Page 14: Cabling
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 8 / TP3- 5 / TP2- 8 / TP3- 8 / TP2- Table 2.4 - 1000BASE-T RJ45 Pin Assignments Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. -
Page 15: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 Figure 2.5 Power Terminal Block Figure 2. Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.6 Power Terminal Block Caution: Please follow the steps below when inserting the power wire. -
Page 16: Grounding Note
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 Figure 2.7: Wiring the Fault Alarm Contact Caution: The wire gauge for the terminal block should range between 12 ~ 24 AWG. If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. -
Page 17: Mounting Installation
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 3 Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial PoE injector from the factory. If the DIN-Rail is not on the Figure 3.1 industrial PoE injector, please see to learn how to install the DIN-Rail on the injector. -
Page 18: Wall Mounting
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 Figure 3.1 - Rear View of the Injector and DIN-Rail Figure 3.2 - Insert the Injector on the DIN-Rail Figure 3.3 - Stable the Injector on the DIN-Rail 3.2 Wall Mounting... - Page 19 Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 Figure 3.4 - Remove DIN-Rail bracket from the Injector Figure 3.5 Below, in are the dimensions of the wall mounting bracket. Figure 3.5 - Wall Mounting Bracket Dimensions...
-
Page 20: Hardware Installation
Antaira Technologies - Industrial Media Converter IMP-C100-XX Series - Hardware Manual - v1.1 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial PoE injector: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 21: Maintenance And Service
If the power indicator LED does not turn on when the power cord is plugged in, the user may ● have a problem with the power cord. Check for loose power connections, power losses, or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. - Page 22 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
