ANTAIRA IMC-C1000 Series User Manual
10/100/1000tx to 1000x industrial gigabit media converter with sc/st connector
Hide thumbs
Also See for IMC-C1000 Series:
- Quick installation manual (2 pages) ,
- Hardware manual (22 pages)
Related Manuals for ANTAIRA IMC-C1000 Series
Summary of Contents for ANTAIRA IMC-C1000 Series

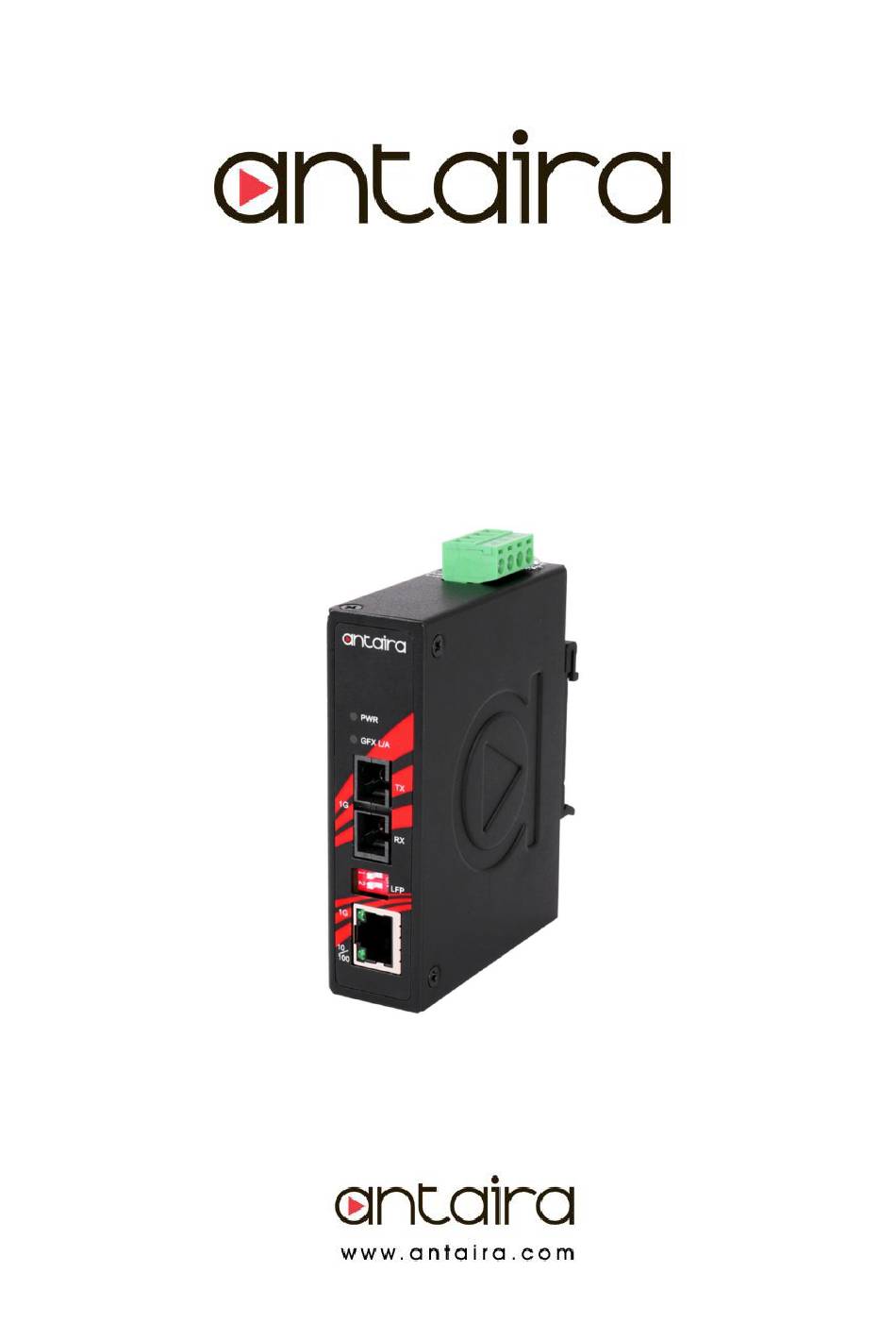

- Page 1 Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.0 IMC-C1000-XX Series 10/100/1000TX to 1000x Industrial Gigabit Media Converter with SC/ST Connector Version 1.1 (July 2018) User Manual...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC. Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. All other brand and product names are trademarks or registered trademarks of their respective owners.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Industrial Ethernet Media Converters User Manual This manual supports the following models: • IMC-C1000-XX • IMC-C1000-XX-T Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 Table of Contents Overview ............... 5 Key Features ..........5 Package Contents .......... 5 Safety Precaution ........... 6 Hardware Description .......... 7 2.1 Physical Dimensions .......... 7 2.2 Front Panel ............8 2.3 Top View ............ -
Page 5: Overview

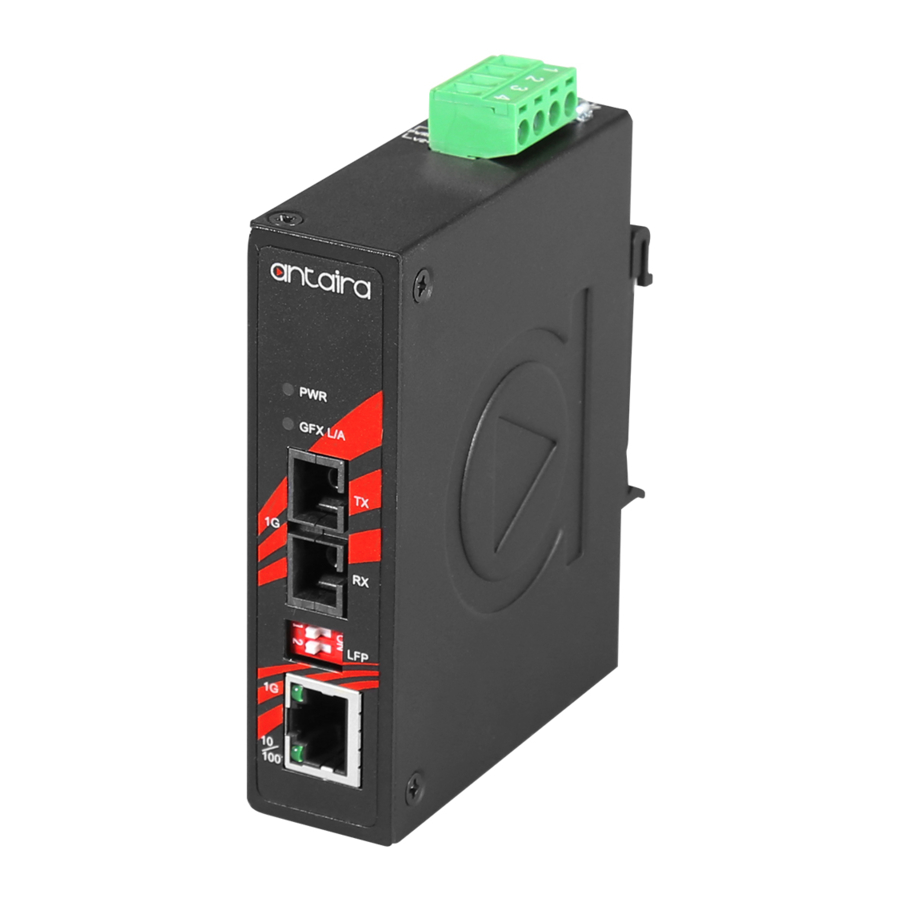

IMC-C1000-XX Series User Manual V1.1 1. Overview Antaira Technologies’ IMC-C1000-XX series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST and SC connectors depending on model. There are models that support Multimode and Single-Mode to support applications with a variety of fiber distances. -
Page 6: Safety Precaution
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 1.3 Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. Supply by UL Listed industrial use power. The industrial media converter’s hardware specs, ports, cabling information, and wiring installation will be described within this user manual. -
Page 7: Hardware Description
IMC-C1000-XX Series User Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ IMC-C1000-XX series: 10/100/1000Tx to 1000x compact industrial gigabit Ethernet media converter. (W x D x H) is 26mm x 95mm x 75mm Figure 2.1... -
Page 8: Front Panel
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 2.2 Front Panel The front panel of the IMC-C1000-XX series can be seen below (Figure 2.2). Grounding Screw 4-Pin Removal Terminal Block (Power Input) LED for PWR LED for Fiber Link/Act Fiber Port –... -
Page 9: Led Indicators
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet media converter that displays the power and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Dip-Switch Setting
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 2.5 DIP-Switch Setting Default setting: There are 2 pins on DIP-switch on the front panel for setting LFP (Link Fault Pass) function, see the Table 2.2 below for more details. -
Page 11: Cabling
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 Figure 2.4: RJ-45 Ethernet Port Pin Figure 2.5 Figure 2.6 Straight-Through Cables Schematic Crossover Cables Schematic 2.7 Cabling ◼ Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded Twisted Pair (STP) cable. -
Page 12: Wiring The Power Inputs
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 ◼ Figure 2.7 SC Connector Caution: This is a Class 1 Laser/LED product that complies with IEC 60825-1. Don’t stare into the Laser/LED Beam. ◼ 2.8 Wiring the Power Inputs Please follow the steps below to insert the power wire. -
Page 13: Grounding Note
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 Caution: Only use copper conductors, 70/80°C, tighten to 5 in-lbs (0.56 Nm). The wire gauge for the terminal block should range between 18~20 AWG. Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). -
Page 14: Mounting Installation
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet media converter from the factory. If the DIN-Rail is not on the industrial Ethernet media converter, please refer to Figure 3.1 to learn how to install the DIN-Rail on the media converter. - Page 15 Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 Follow the steps below to learn how to hang the industrial Ethernet media converter. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet media converter.
-
Page 16: Wall Mounting
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 6. To remove the industrial Ethernet media converter from the rail, do the opposite from the above steps. 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet media converter using the wall mounting bracket as shown below in Figure 3.4. - Page 17 Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 Below, in Figure 3.5, are the dimensions of the wall mounting bracket. Figure 3.5 Wall Mounting Bracket Dimensions...
-
Page 18: Hardware Installation
IMC-C1000-XX Series User Manual V1.1 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ IMC-C1000-XX series. Caution: 1. This device is intended for indoor use and at altitudes up to 2000 meters. 2. This device is intended to be installed in an industrial control enclosure and panel. -
Page 19: Maintenance And Service
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 4.2 Maintenance and Service • If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible. -
Page 20: Network Application
Antaira Technologies - Industrial Media Converter IMC-C1000-XX Series User Manual V1.1 5. Network Application This segment provides an example of an industrial Ethernet media converter application (Figure 5.1). Figure 5.1 Industrial Gigabit Media Converter Application Example... -
Page 21: Trouble Shooting
Check for loose power connections, power losses, or surges at the power outlet. Please contact Antaira for technical support if the problem cannot be resolved. • If the industrial media converter LED indicators are normal and the connected cables are correct but the packets still cannot transmit, please check the system’s Ethernet devices’... - Page 22 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
