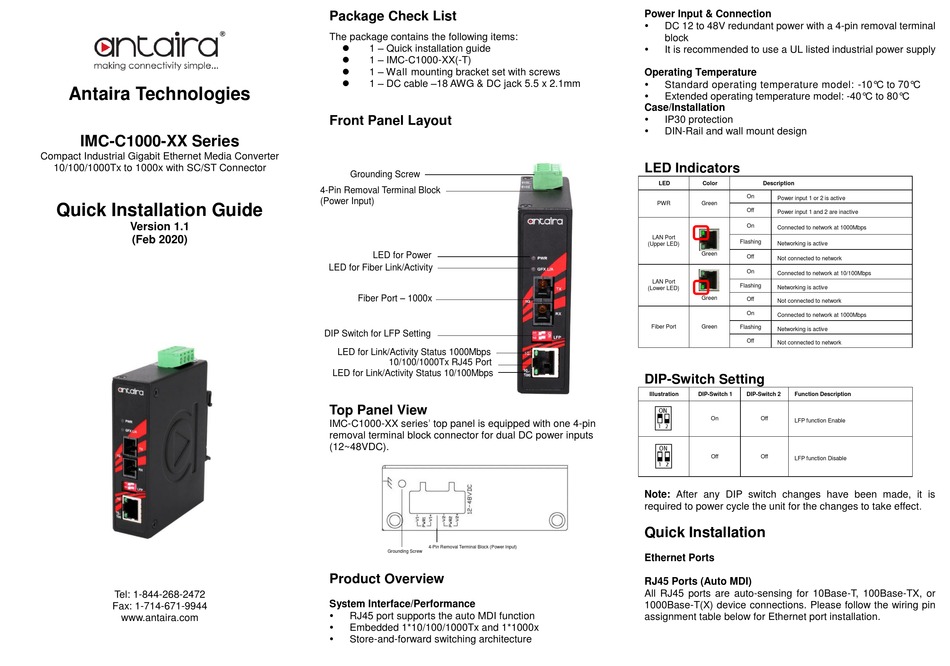

Antaira Technologies
IMC-C1000-XX Series
Compact Industrial Gigabit Ethernet Media Converter
10/100/1000Tx to 1000x with SC/ST Connector
Quick Installation Guide
Version 1.1
(Feb 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
1 – Quick installation guide
1 – IMC-C1000-XX(-T)
1 – Wall mounting bracket set with screws
1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm

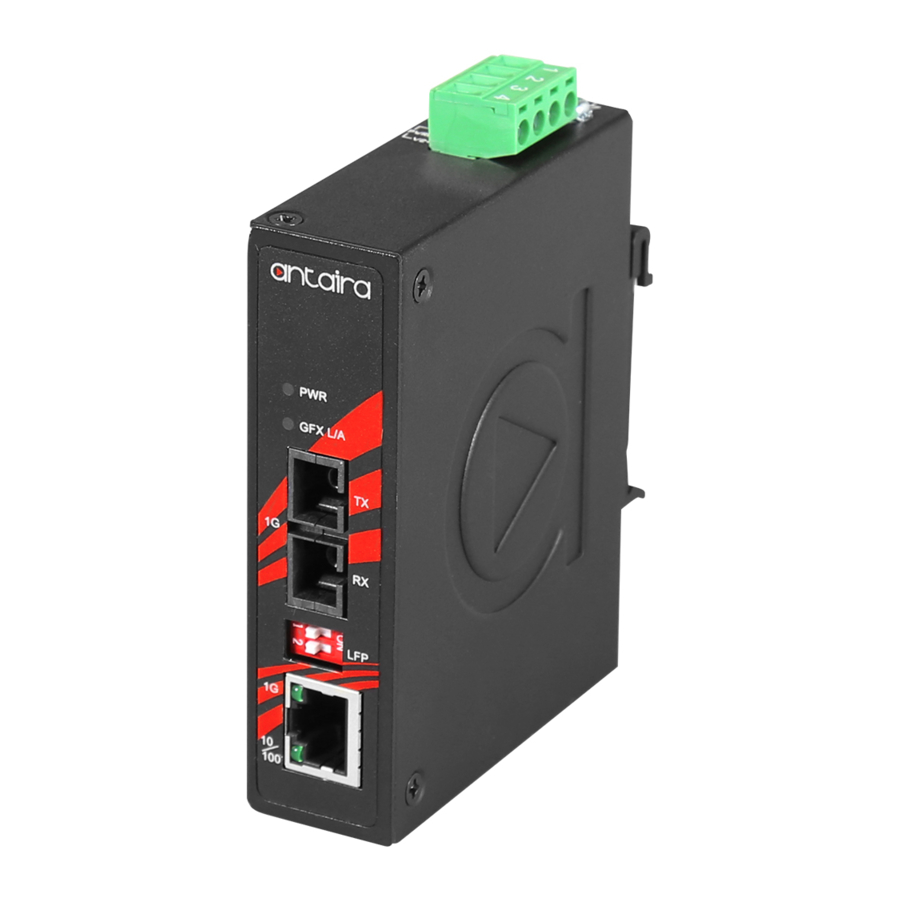

Front Panel Layout

Grounding Screw
4-Pin Removal Terminal Block
(Power Input)
LED for Power
LED for Fiber Link/Activity
Fiber Port – 1000x
DIP Switch for LFP Setting
LED for Link/Activity Status 1000Mbps
10/100/1000Tx RJ45 Port
LED for Link/Activity Status 10/100Mbps

Top Panel View

IMC-C1000-XX series' top panel is equipped with one 4-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
4-Pin Removal Terminal Block (Power Input)
Grounding Screw

Product Overview

System Interface/Performance

RJ45 port supports the auto MDI function
Embedded 1*10/100/1000Tx and 1*1000x
Store-and-forward switching architecture
Power Input & Connection
DC 12 to 48V redundant power with a 4-pin removal terminal
block
It is recommended to use a UL listed industrial power supply

Operating Temperature

Standard operating temperature model: -10°C to 70°C
Extended operating temperature model: -40°C to 80°C

Case/Installation

IP30 protection
DIN-Rail and wall mount design

LED Indicators

LED
Color
Description
On
Power input 1 or 2 is active
PWR
Green
Off
Power input 1 and 2 are inactive
On
Connected to network at 1000Mbps
LAN Port
Flashing
(Upper LED)
Networking is active
Green
Off
Not connected to network
On
Connected to network at 10/100Mbps
LAN Port
Flashing
Networking is active
(Lower LED)
Green
Off
Not connected to network
On
Connected to network at 1000Mbps
Fiber Port
Green
Flashing
Networking is active
Off
Not connected to network

DIP-Switch Setting

Illustration
DIP-Switch 1
DIP-Switch 2
Function Description
On
Off
LFP function Enable
Off
Off
LFP function Disable
Note: After any DIP switch changes have been made, it is
required to power cycle the unit for the changes to take

Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or
1000Base-T(X) device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
effect.
