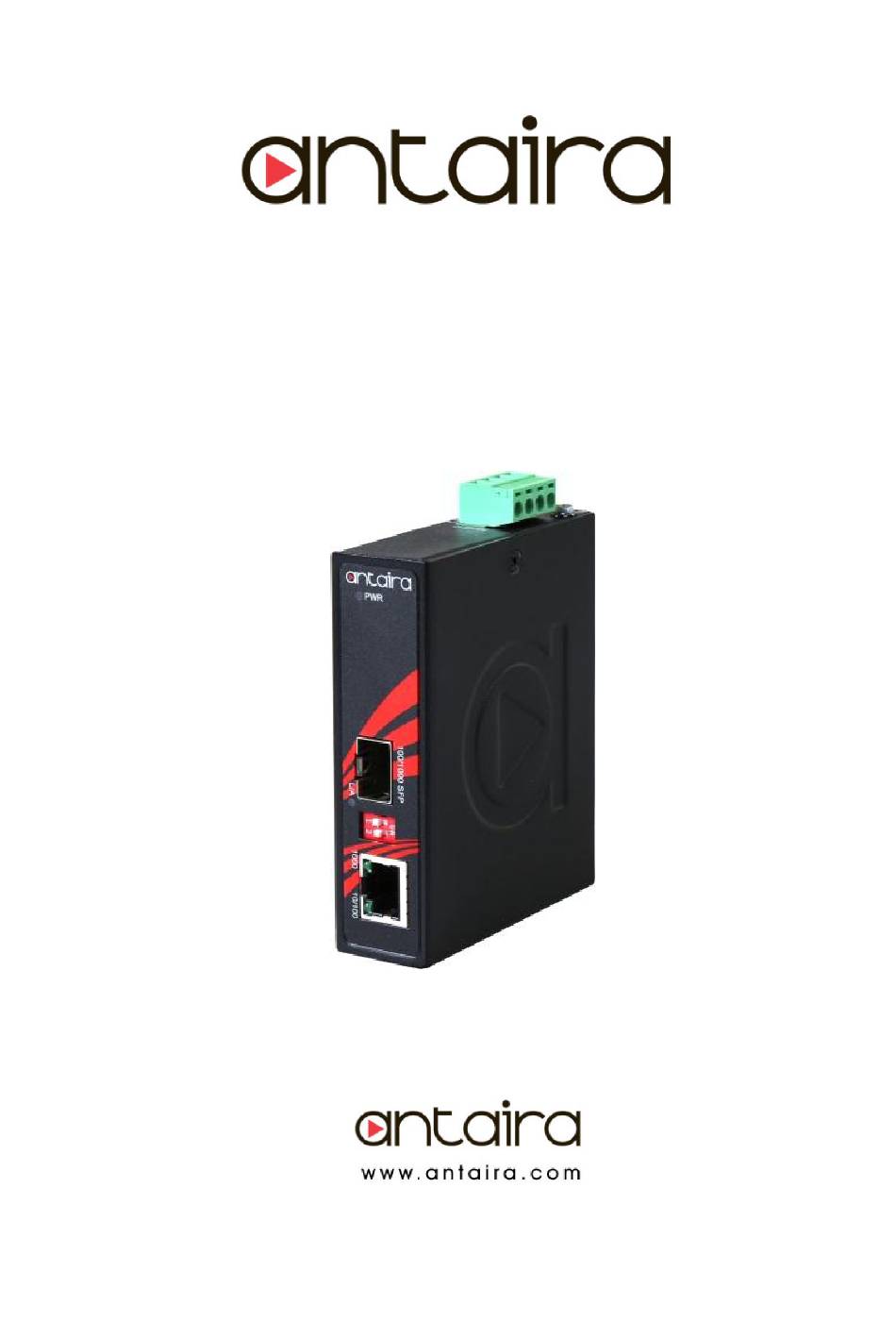

- Page 1 Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 IMC-C1000-SFP Series 10/100/1000Tx to 100/1000Fx Compact Industrial Gigabit Ethernet Media Converter Version 1.2 User Manual...
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Industrial Grade Unmanaged Ethernet Media Converters User Manual Version 1.2 (January 2018) This manual supports the following models: IMC-C1000-SFP IMC-C1000-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 Table of Contents 1. Overview ............... 1 1.1 Key Features ............1 1.2 Package Contents ..........1 1.3 Safety Precaution ..........1 2. Hardware Description ..........2 2.1 Physical Dimensions .......... 2 2.2 Front Panel ............ -
Page 5: Overview
IMC-C1000-SFP Series User Manual V1.2 1. Overview Antaira Technologies’ IMC-C1000-SFP series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a dual rate 100/1000 SFP slot. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. -
Page 6: Hardware Description
IMC-C1000-SFP Series User Manual V1.2 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ IMC-C1000-SFP series: 10/100/1000Tx to 100/1000Fx compact industrial gigabit Ethernet media converter. (W x D x H) is 26mm x 75mm x 95mm Figure 2.1... -
Page 7: Front Panel
Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 2.2 Front Panel The front panel of the IMC-C1000-SFP series: 10/100/1000Tx to 100/1000Fx industrial compact gigabit Ethernet media converter (Figure 2.2). Grounding screw 4-pin removal terminal block (power input) LED for PWR Fiber Port –... -
Page 8: Led Indicators
Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet media converter that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 9: Ethernet Ports
Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 2.6 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 port is auto-sensing for 10/100Base-Tx, or 1000Base- Tx device connections. Auto MDI/MDIX means that the media converter can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 10: Cabling
Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 The following figures show the cabling schematics for straight-through and crossover cables. Figure 2.4 Figure 2.5 Straight-Through Cables Schematic Crossover Cables Schematic 2.7 Cabling Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded twisted pair (STP) cable. - Page 11 Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 Figure 2.6 - Transceiver to the SFP Slot Figure 2.7 - Transceiver Inserted Step 2 - Insert the fiber cable of the LC connector into the transceiver as shown below in Figure 2.8.
-
Page 12: Wiring The Power Inputs
Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 2.8 Wiring the Power Inputs Please follow the steps below to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.11. -
Page 13: Mounting Installation
Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet media converter from the factory. If the DIN-Rail is not on the industrial Ethernet media converter, please refer to Figure 3.1 to learn how to install the DIN-Rail on the media converter. - Page 14 Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 Follow the steps below to learn how to hang the industrial Ethernet media converter. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet media converter.
-
Page 15: Wall Mounting
Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet media converter using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial media converter by loosening the screws. -
Page 16: Hardware Installation
IMC-C1000-SFP Series User Manual V1.2 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ IMC-C1000-SFP(-T) series: 10/100/1000Tx to 100/1000Fx industrial compact gigabit Ethernet media converter. Installation Steps 1. Unpack the industrial Media Converter from the original packing box. -
Page 17: Network Application
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support service, if the problem still cannot be resolved. ... -
Page 18: Technical Specifications
Antaira Technologies - Industrial Media Converter IMC-C1000-SFP Series User Manual V1.2 7. Technical Specifications Table 7.1 has the technical specifications for Antaira Technologies’ IMC-C1000-SFP series: 10/100/1000Tx to 100/1000Fx industrial compact Gigabit Ethernet media converter. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
