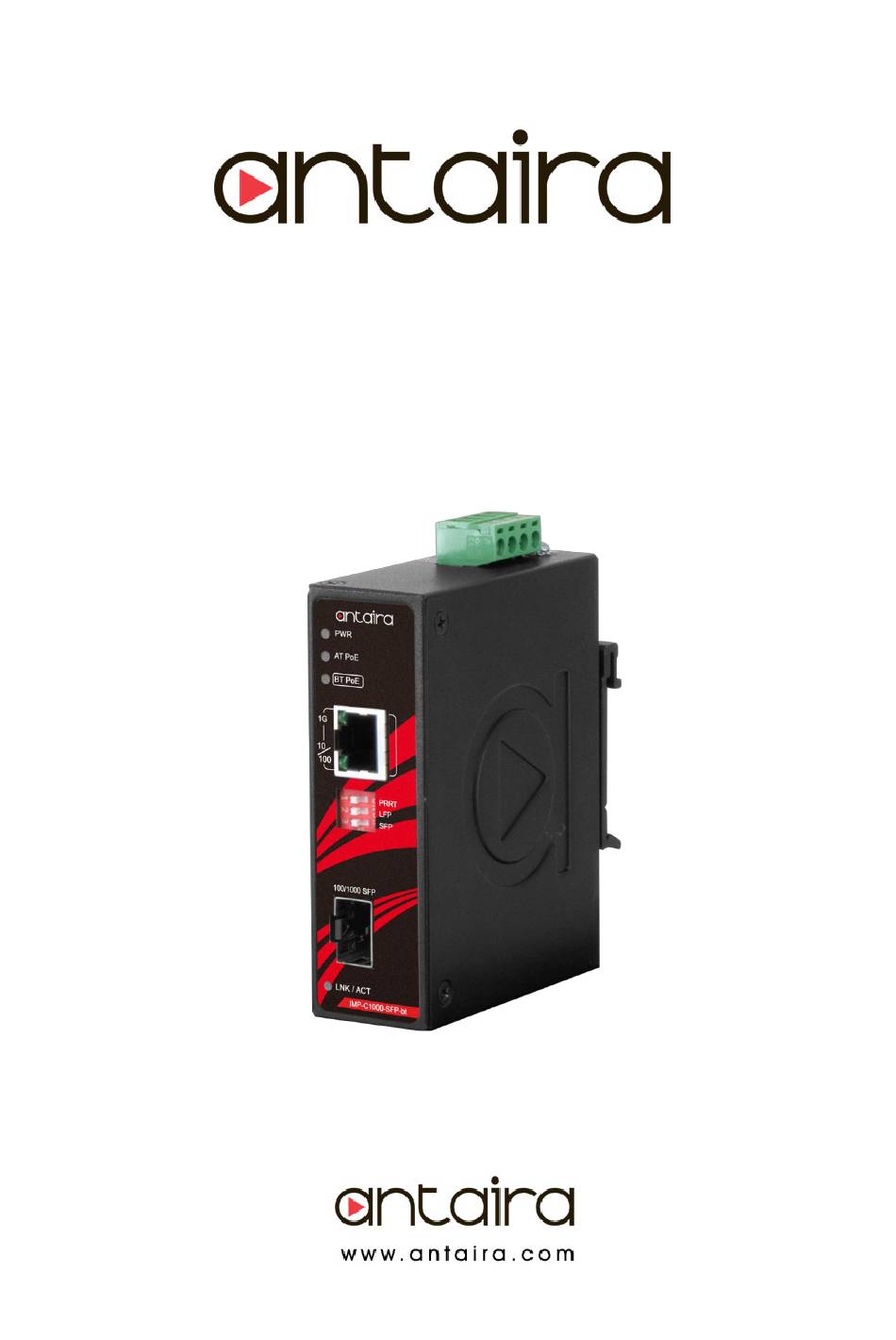

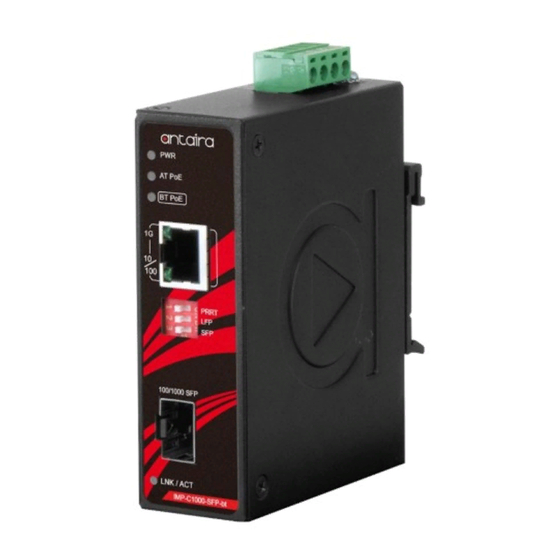

- Page 1 Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 IMP-C1000-SFP-bt Series Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter, 1*10/100/1000Tx (90W/Port) to 1*100/1000 SFP Slot Version 1.0 User Manual...
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Industrial Ethernet Media Converters User Manual (May 2020) This manual supports the following models: • IMP-C1000-SFP-bt • IMP-C1000-SFP-bt-T Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 Table of Contents Overview .............. 1 Key Features ..........1 Package Contents ........2 Safety Precaution ........2 Hardware Description ......... 3 Physical Dimensions ........3 Front Panel ..........4 Top View ............ -
Page 5: Overview
ITS transportation, power/utility, water wastewater treatment plants, and any other extreme ambient weather environments. The IMP-C1000-SFP-bt series has a built-in “Link Fault Pass Through” (LFP) and “PD Remote Reset Technology” (PRRT) function with 48~55VDC redundant power inputs with reverse polarity and overload current protection. -
Page 6: Package Contents
Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 1.2 Package Contents • 1 - Quick Installation Guide • 1 - IMP-C1000-SFP-bt(-T) • 1 - Wall mounting bracket set with screws • 1 - DC cable - 18 AWG & DC jack 5.5x2.1mm 1.3 Safety Precaution... -
Page 7: Hardware Description
Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ IMP-C1000-SFP-bt series. (W x D x H) is 30mm x 95mm x 75mm Figure 2.1... -
Page 8: Front Panel
LED for SFP Link/Activity Figure 2.2 Front Panel 2.3 Top View Figure 2.3, below, shows the top panel of the IMP-C1000-SFP-bt series media converter that is equipped with one 4-pin removal terminal block connector for dual DC power inputs (48~55VDC). Figure 2.3... -
Page 9: Led Indicators
Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet media converter that displays the power and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 10: Ethernet Ports
Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 2.6 Ethernet Ports ◼ RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 port is auto-sensing for 10/100Base-Tx or 1000Base- Tx device connections. Auto MDI/MDIX means that the media converter can connect to another switch or workstation without changing the straight-through or crossover cabling. - Page 11 Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 ▪ To connect the transceiver and LC cable, please follow the steps below: Step 1 - Insert the SFP transceiver module into the SFP slot as shown below in Figure 2.7.
- Page 12 Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 ▪ To remove the LC connector from the transceiver, please follow the steps shown below: Step 1 - Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.10.
-
Page 13: Wiring The Power Inputs
Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 2.8 Wiring the Power Inputs Please follow the steps below to insert the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.12. -
Page 14: Mounting Installation
Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet media converter from the factory. If the DIN-Rail is not on the industrial Ethernet media converter, please refer to Figure 3.1 to learn how to install the DIN-Rail on the media converter. - Page 15 Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 Follow the steps below to learn how to hang the industrial Ethernet media converter. 1. Use the screws to install the DIN-Rail bracket on the rear side of the industrial Ethernet media converter.
-
Page 16: Wall Mounting
Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet media converter using the wall mounting bracket as shown below in Figure 3.4. 1. Remove the DIN-Rail bracket from the industrial media converter by loosening the screws. -
Page 17: Hardware Installation
IMP-C1000-SFP-bt Series User Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira Technologies’ IMP-C1000-SFP-bt(-T) series. Installation Steps 1. Unpack the industrial media converter from the original packing box. 2. Check if the DIN‐Rail bracket is screwed on the industrial media converter. -
Page 18: Trouble Shooting
Check for loose power connections, power losses or surges at the power outlet. Please contact Antaira for technical support if the problem cannot be resolved. • If the industrial media converter LED indicators are normal and the connected cables are correct but the packets still cannot transmit, please check the system’s Ethernet devices’... -
Page 19: Technical Specifications
Antaira Technologies - Industrial Media Converter IMP-C1000-SFP-bt Series User Manual V1.0 6. Technical Specifications Table 6.1 has the technical specifications for Antaira Technologies’ IMP-C1000-SFP-bt series. IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet Standards IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3z... - Page 20 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
