Installing/Removing CF Card

Structure

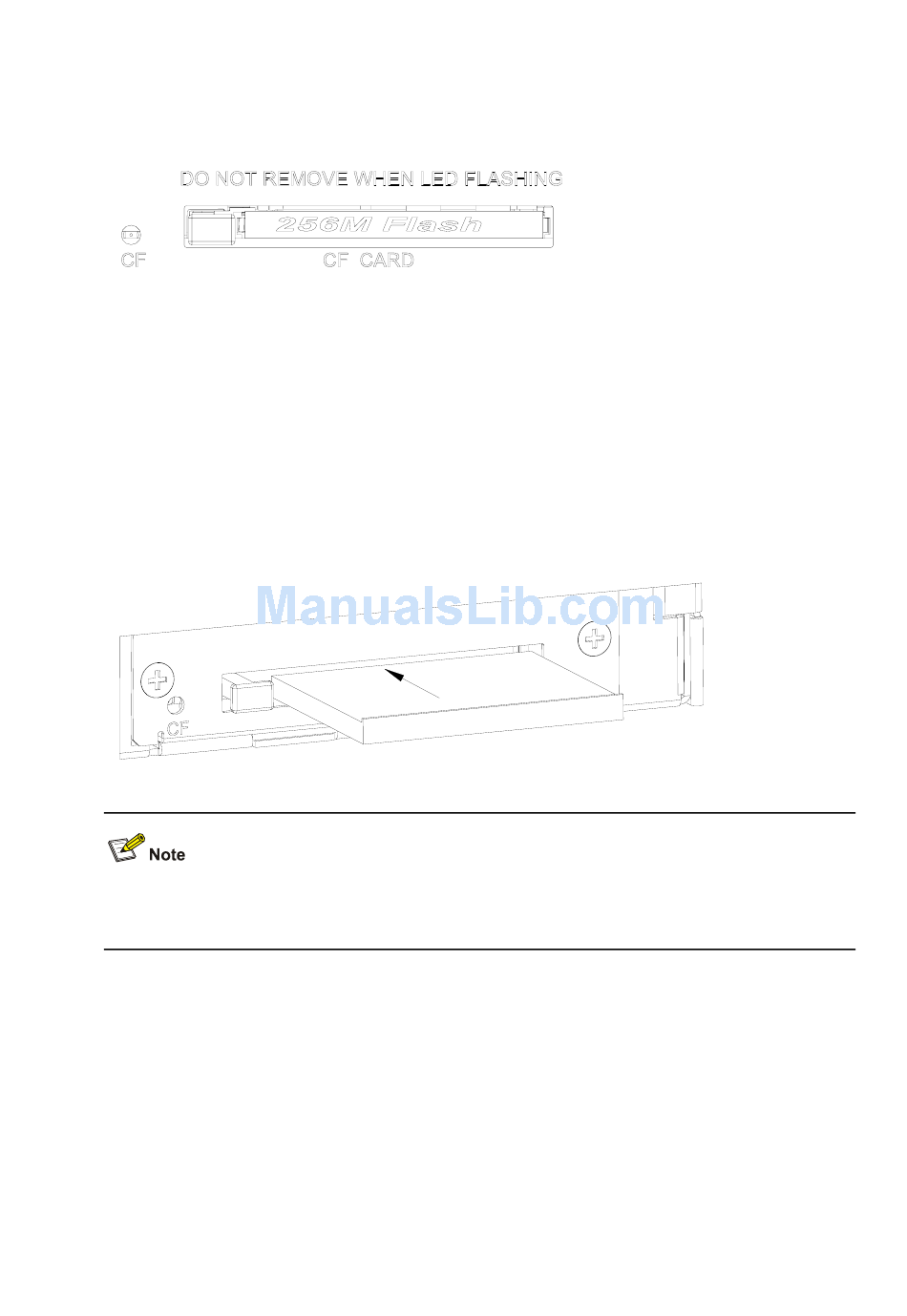

Figure 6-7 Front view of CF card

Installing CF Card

Install the CF card following these steps:
Step 1: Push the spring button into the slot completely, and make sure it only springs out with outside
force.
Step 2: Press the CF card into the slot in correct orientation, and make sure it only springs out with
outside force.
Figure 6-8 Press the CF card into the slot
Make sure the CF card with correct application program is properly installed in the slot; or, the system
cannot boot.

Removing CF Card

Remove the CF card following these steps:
Step 1: Check the CF card LED to make sure it is not blinking, and then proceed.
Step 2: Press the spring button to release the internal spring clip, making the card out of the slot a little.
Step 3: Push the spring button hard in the orientation shown in the figure below, and the CF card on the
right springs out a little. Then, take it out.
