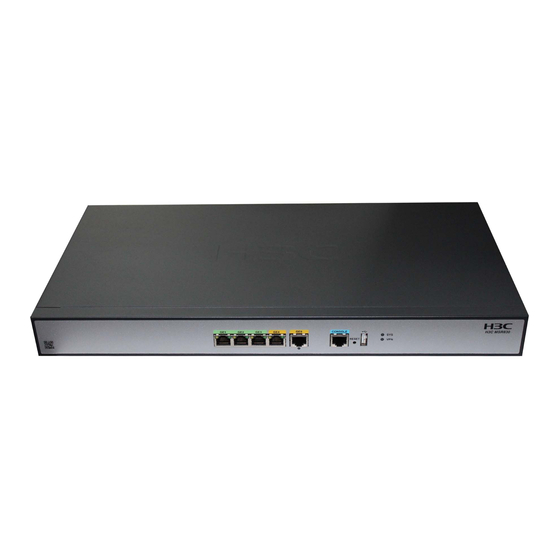

H3C MSR Series Probe Command Reference
Hide thumbs
Also See for MSR Series:
- Command reference manual (1187 pages) ,
- Configuration manual (80 pages) ,
- Manual (33 pages)
Subscribe to Our Youtube Channel
Related Manuals for H3C MSR Series
Summary of Contents for H3C MSR Series
- Page 1 H3C MSR Series Routers Probe Command Reference(V7) Hangzhou H3C Technologies Co., Ltd. http://www.h3c.com Software version: MSR-CMW710-R0007 Document version: 6W100-20140320...
- Page 2 Copyright © 2014, Hangzhou H3C Technologies Co., Ltd. and its licensors All rights reserved No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Hangzhou H3C Technologies Co., Ltd.
- Page 3 About the H3C MSR documentation set • Obtaining documentation • Technical support • • Documentation feedback These configuration guides apply to the following models of the H3C MSR series routers: Model • MSR 26-30 MSR 2600 • MSR 36- 1 0 •...
- Page 4 An alert that provides helpful information. Port numbering in examples The port numbers in this document are for illustration only and might be unavailable on your device. About the H3C MSR documentation set The H3C MSR documentation set includes: Category...
- Page 5 Obtaining documentation You can access the most up-to-date H3C product documentation on the World Wide Web at http://www.h3c.com. Click the links on the top navigation bar to obtain different categories of product documentation: [Technical Support & Documents > Technical Documents]—Provides hardware installation, software...
-
Page 6: Table Of Contents
Contents Common probe commands ········································································································································· 1 display hardware internal dump ···························································································································· 1 display hardware internal physical ························································································································ 1 debugging physical card········································································································································· 2 Switching module probe commands ·························································································································· 3 bcm ············································································································································································ 3 debugging physical lsw ··········································································································································· 3 ... -
Page 7: Common Probe Commands
Common probe commands display hardware internal dump Use display hardware internal dump to display the dump register information of a chip. Syntax display hardware internal dump if-name [ card ] chip chip-num [ global | channel ] Views Probe view Predefined user roles network-admin network-operator... -
Page 8: Debugging Physical Card
intinfo-priv: Displays private interface information. rxbd: Displays received BD information. statistic: Displays the statistics. txbd: Displays sent BD information. debugging physical card Use debugging physical card to enable debugging for the card system. Use undo debugging physical card to disable debugging for the card system. Syntax debugging physical if-name card [ all | error | event | packet ] undo debugging physical if-name card [ all | error | event | packet ]... -
Page 9: Switching Module Probe Commands
Switching module probe commands Use bcm to execute probe commands for a Broadcom chip. Syntax bcm chassis-num slot-num/subslot-num chip-num string Views Probe view Predefined user roles network-admin network-operator Parameters chassis-num: Specifies a chassis by its number, which is always 0. slot-num: Specifies a slot by its number in the range of 0 to 255. -
Page 10: Display Hardware Internal Physical Lsw
Predefined user roles network-admin network-operator Parameters all: Specifies all submodules of the switching module. acl: Specifies the ACL submodule of the switching module. ioctl: Specifies the ioctl submodule of the switching module. mac: Specifies the MAC submodule of the switching module. mc: Specifies the multicast submodule of the switching module. -
Page 11: Display Hardware Internal Physical Lsw Vlaninfo
Parameters acltable: Specifies the ACL information. boardinfo: Specifies the card information. chipnoinfo: Specifies the chip number information. globalinfo: Specifies the global variable information. debugging: Specifies the debugging information. isolationinfo: Specifies the port isolation information. mactable: Specifies the MAC address entry information. multicasttable: Specifies the multicast entry information. -
Page 12: Display Hardware Internal Dump Lsw Mactable
Parameters subslot-num: Specifies a subslot by its number in the range of 0 to 255. vlan-id: Specifies a VLAN by its ID in the range of 0 to 4095. display hardware internal dump lsw mactable Use display hardware internal dump lsw mactable to display MAC address entry information. Syntax display hardware internal dump lsw subslot-num mactable [ all | vlan vlan-id | interface-type { interface-number | interface-number.subnumber } ]... -
Page 13: Debugging Physical Mgf
chip-num: Specifies the chip number in the range of 0 to 31. debugging physical mgf Use debugging physical mgf to enable debugging for the forwarding card. Use undo debugging physical mgf to disable debugging for the forwarding card. Syntax debugging physical mgf { all | error | event | packet } undo debugging physical mgf { all | error | event | packet } Default Debugging for the forwarding card is disabled. -
Page 14: Display Hardware Internal Physical Mgf
display hardware internal physical mgf Use display hardware internal physical mgf to display information about the specified interface on the MGF. Syntax display hardware internal physical mgf [ port-num ] { counter | devicemap | rxbd | softinfo | statistic | txbd } Views Probe view... -
Page 15: Debugging Physical Poe
isolationtable: Displays port isolation group information. qosprofile: Displays QoS configuration information. statistics: Displays statistics. stptable: Displays STP table information. vlanqos: Displays VLAN QoS configuration information. all: Displays information about all entries. cpld: Displays CPLD information. global: Displays global register information. mac: Displays MAC register information. -
Page 16: Display Hardware Internal Physical Poe Debugging
Related commands display system internal dump poe debugging display hardware internal physical poe debugging Use display hardware internal physical poe debugging to display the enabled PoE module debugging. Syntax display hardware internal physical poe debugging Views Probe view Predefined user roles network-admin network-operator display hardware internal physical poe powerinfo... -
Page 17: Display Hardware Internal Physical Poe Portinfo
display hardware internal physical poe portinfo Use display hardware internal physical poe portinfo to display information about PoE ports in the specified range. Syntax display hardware internal physical poe slot-num start-port<0-63> end-port<0-63> portinfo Views Probe view Predefined user roles network-admin network-operator Parameters slot-num: Specifies a slot by its number. -
Page 18: Interface Probe Commands
Interface probe commands display hardware internal physical Use display hardware internal physical to display transmit queues and receive queues on a serial interface. Syntax display hardware internal physical interface-type interface-number { tx_queue | rx_queue } Views Probe view Predefined user roles network-admin network-operator Parameters... -
Page 19: Display Hardware Internal Dump Chassis Slot Inner-Port
display hardware internal dump chassis slot inner-port Use display hardware internal dump chassis slot inner-port to display register information about a specified internal interface or all internal interfaces in a slot. Syntax display hardware internal dump chassis chassis-num slot slot-num inner-port [ inner-port-num ] [ statistics ] Views Probe view... -
Page 20: Debugging Physical
keyregs: Displays addresses and values of the key registers. priv-info: Displays private information. debugging physical Use debugging physical to enable IPC-related debugging. Use undo debugging physical to disable IPC-related debugging. Syntax debugging physical chassis chassis-number slot slot-number { mbus | lipc | mbuf-relay } { all | error | event | input | output } undo debugging physical chassis chassis-number slot slot-number { mbus | lipc | mbuf-relay } { all | error | event | input | output }... - Page 21 Syntax reset hardware internal dump chassis slot slot-num inner-port counter Views Probe view Predefined user roles network-admin network-operator Parameters slot-num: Specifies a slot by its number in the range of 0 to 255.
-
Page 22: Voice Probe Commands
Voice probe commands dsp-capture pcm Use dsp-capture pcm to capture DSP PCM packets on a voice interface. Syntax dsp-capture pcm if-name { start | stop } Views Probe view Predefined user roles network-admin network-operator Parameters if-name: Specifies a voice interface. start: Starts capturing packets. -
Page 23: Vpm-Mirror
Usage guidelines The DSP numbers and addresses vary with different voice cards. Use the correct DSP number and address to view DSP memory information. vpm-mirror Use vpm-mirror to mirror the packets between a VPM card and CPU to a specified interface. Syntax vpm-mirror slot slot-num port port-num { all | command | data | stop } to if-name Views... -
Page 24: Display Hardware Internal Voice Fax Debugging
network-operator Parameters if-name: Specifies a voice interface. type: Specifies one of the following debugging types: all: Specifies all fax debugging. • api: Specifies API fax debugging • app-fs: Specifies APP FS fax debugging • • cc: Specifies CC fax debugging controller: Specifies controller fax debugging •... -
Page 25: Main Board Probe Commands
Main board probe commands display hardware internal pcicfg Use display hardware internal pcicfg to display the contents of the PCI configuration space, including the contents of the PCI-E configuration space. Syntax display hardware internal pcicfg slot-num pci-num bus-num dev-num func-num pci-offset width-num Views Probe view Predefined user roles... -
Page 26: Switch Console
Predefined user roles network-admin network-operator Parameters slot-num: Specifies a slot number. It must be 0 for an MSR 2600 or MSR 3600, and must be in the range of 0 to 2 for an MSR 5600. acc-addr: Specifies the hardware space in the range of 0 to 0xFFFFFFFFFFFFFFFF. width-num: Specifies the PCI configuration access bit width in bytes. -
Page 27: Host Probe Commands
Host probe commands display hardware internal cpu-version Use display hardware internal cpu-version to display version information about the CPUs on the host, forwarding cards, and interface cards. Syntax display hardware internal cpu-version Views Probe view Predefined user roles network-admin restore factory-default Use restore factory-default to clear the user information saved the router and interface cards and restore the factory-default configuration. -
Page 28: Index
Index B D R S V display hardware internal physical,12 display hardware internal physical isrque,12 bcm,3 display hardware internal physical lsw,4 display hardware internal physical lsw vlaninfo,5 display hardware internal physical mgf,8 debugging physical,14 display hardware internal physical mgf debugging,7 debugging physical card,2 display hardware internal physical...
