Table 3-3 Attributes of the console port
Attribute
Connector
Interface standard
Baud rate
Function
Console cable
Console cable is an eight-wire shielded cable. At one end of the cable is a crimped RJ-45 connector to
the console port on the router; at the other end of the cable is a DB-9 (female) connector to the serial
port on the console terminal.
The following figure illustrates the console cable.

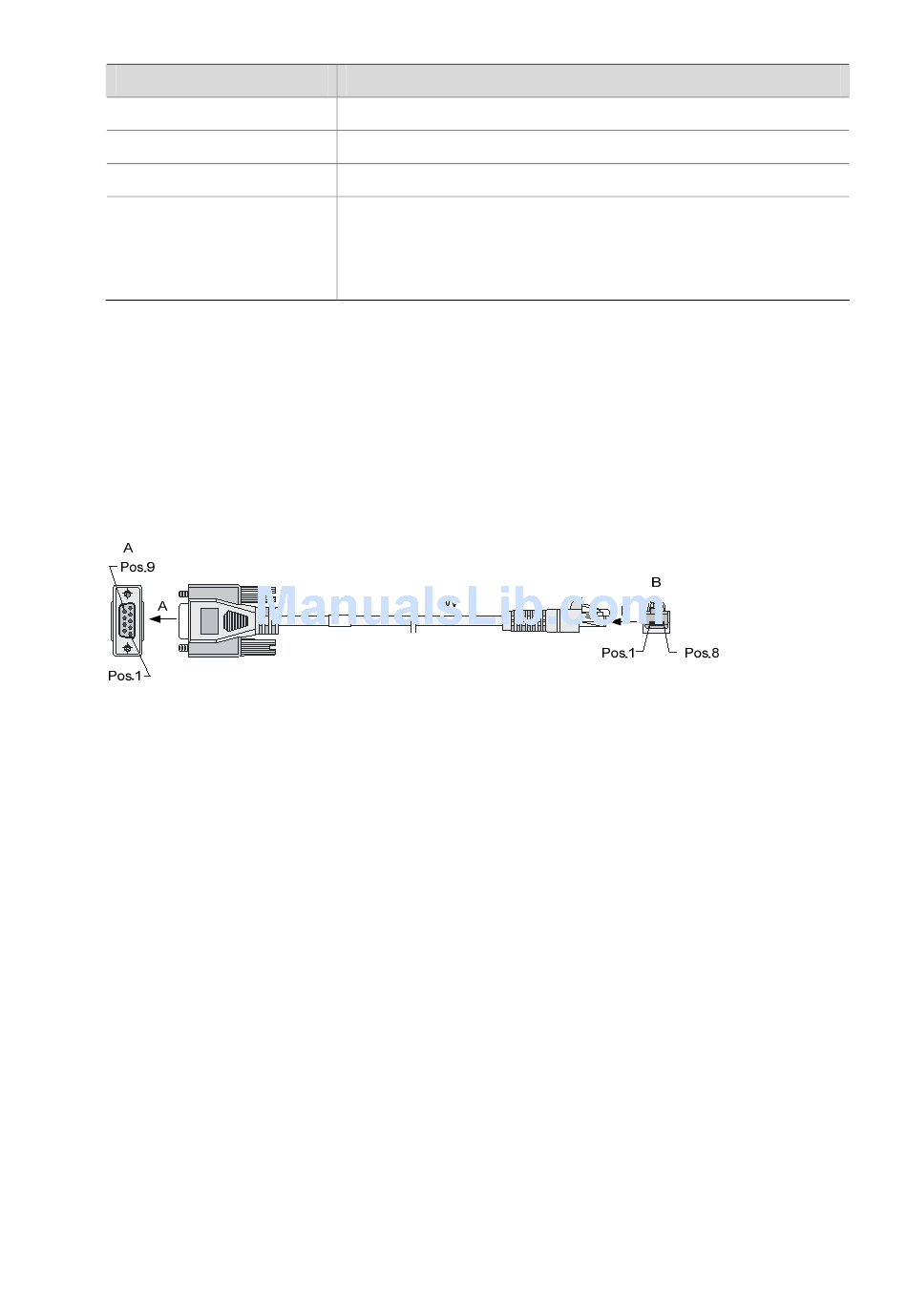

Figure 3-6 Console cable
Connecting the console cable
Follow these steps to connect the router to a console terminal:
Step 1: Select a console terminal.
It can be a standard ASCII terminal with an RS232 serial port, or more commonly, a PC.
Step 2: Connect the console cable.
Power down the router and the console terminal, connect the RS232 serial port on the console terminal
to the console port on the router through the console cable.
Verify the connection and power up the devices. The console terminal shows the startup information of
the router if the connection is correct.

Fixed Interfaces

Ethernet Interface

Ethernet interface

MSR 20 Series Routers are available with fixed 100Base-TX FE interface(s) and Ethernet
modules/cards for expansion. For more information, refer to MSR 20/30/50 Series Routers Interface
Card and Interface Module Manual. The following table describes Ethernet interface attributes.
RJ-45
RS232
9600 bps (default) to 115,200 bps
Connecting to the ASCII terminal
Connecting to the serial interface of the local PC and running
terminal emulation program on the PC
Command line interface
3-6
Description
