MSR 20-40 Router

Appearance
1) Front view

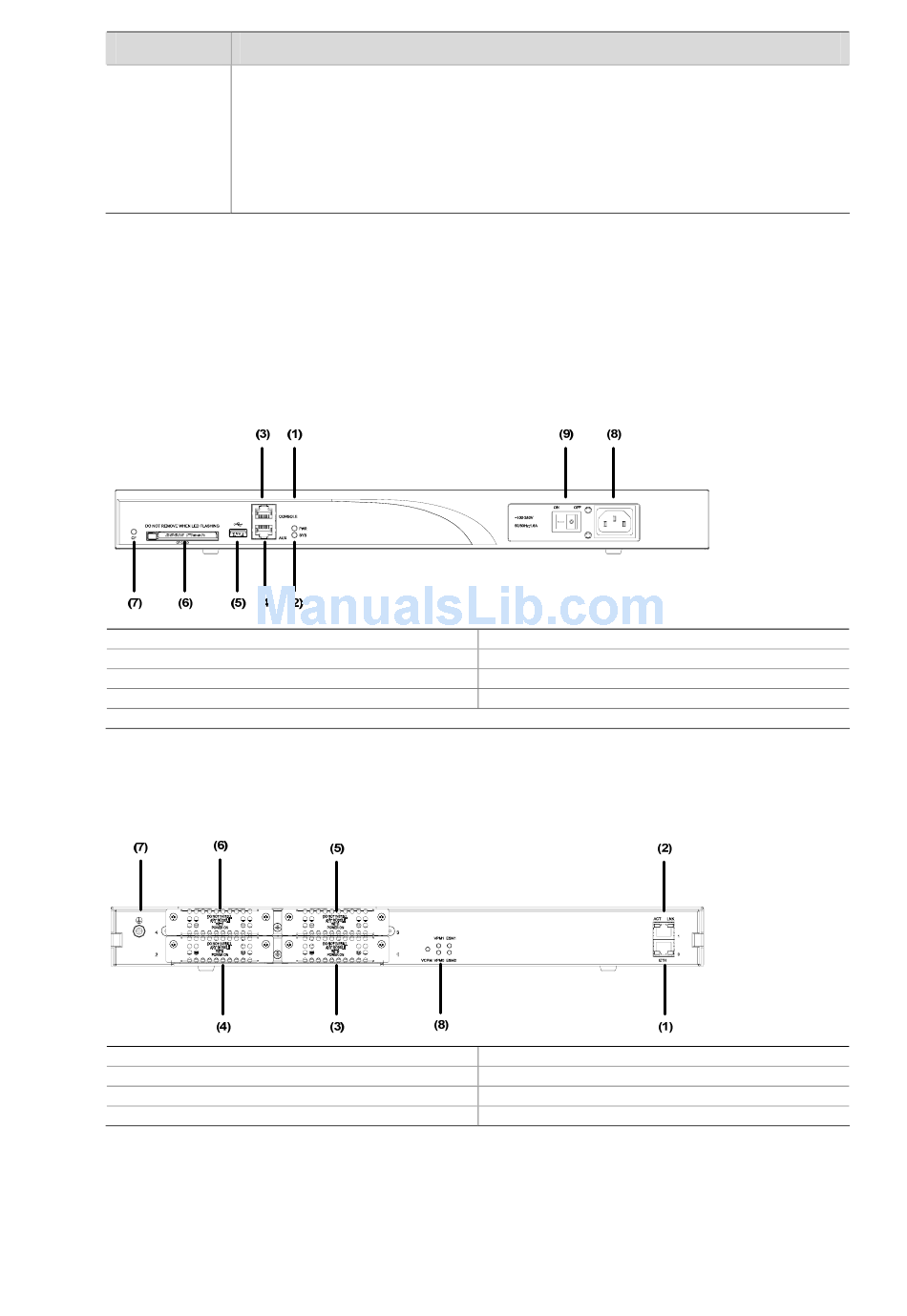

Figure 1-5 Front view of MSR 20-40
(1) Power LED (POWER)
(3) Console port (CONSOLE)
(5) USB interface
(7) CF card LED
(9) Power switch
2) Rear view
Figure 1-6 Rear view of MSR 20-40
(1) FE interface 0
(3) SIC slot1
(5) SIC slot3
(7) Grounding terminal
Panel LEDs
The description of LEDs on MSR 20-40 router is as follows:
Steady green means a CF card is present.
Green and blinking means the CF card is reading/writing data. To prevent data
corruption, do not remove the running CF card.
Steady yellow means the present CF card is malfunctioning.
Steady OFF means no CF card is present or the present CF card cannot be
identified by the system.
Description
(2) System LED (SYSTEM)
(4) Auxiliary port (AUX)
(6) CF card
(8) Power socket
(2) FE interface 1
(4) SIC slot2
(6) SIC slot4
(8) LEDs
1-6
