ITALIANO
ENGLISH
FRANÇAIS
International registered trademark n. 804888

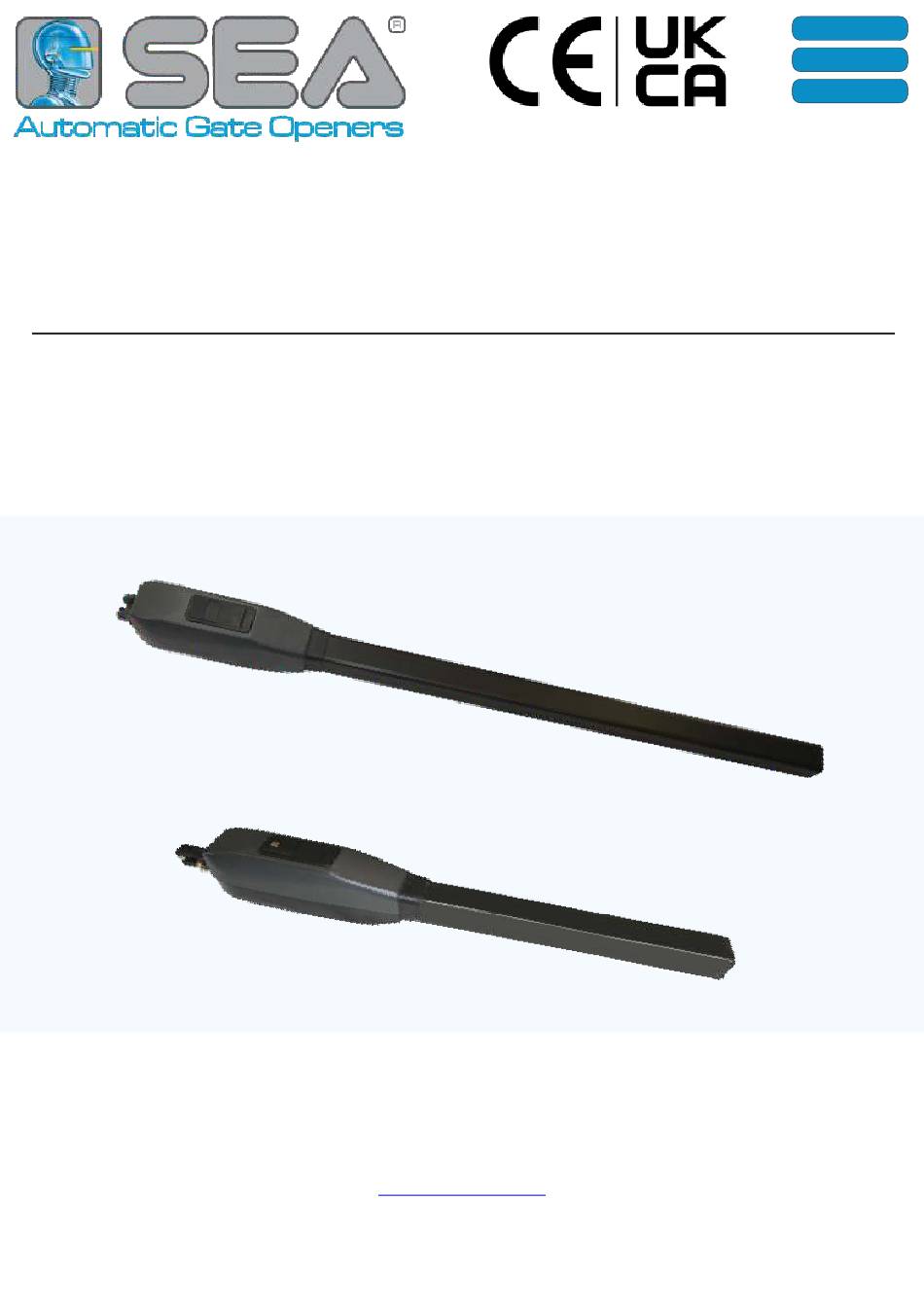

FOIL P
FOIL S
&
OPERATORI ELETTROMECCANICI PER CANCELLI A BATTENTI
ELECTROMECHANICAL OPERATORS FOR SWING GATES
OPERATEURS ELECTROMECANIQUES POUR PORTAILS A BATTANTS
SEA
S.p.A.
Zona Industriale Sant'Atto - 64100 - Teramo - ITALY
Telephone: + 39 0 861 588341
www.seateam.com
67412305
REV. 00 - 04/2025
Advertisement
Table of Contents
Related Manuals for SEA FOIL P
Summary of Contents for SEA FOIL P
- Page 1 ITALIANO ENGLISH FRANÇAIS International registered trademark n. 804888 FOIL P FOIL S & OPERATORI ELETTROMECCANICI PER CANCELLI A BATTENTI ELECTROMECHANICAL OPERATORS FOR SWING GATES OPERATEURS ELECTROMECANIQUES POUR PORTAILS A BATTANTS S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Telephone: + 39 0 861 588341 www.seateam.com...
-
Page 2: Foil P And Foil S
ENGLISH International registered trademark n. 804888 FEATURES FOIL P FOIL S are electromechanical operators for swing gates, irreversible, safe and easy to install; FOIL P is equipped with end support bracket and allows to automate leaves with a maximum length of 6 m and maximum weight per leaf of 600 Kg;... -
Page 3: Application Charts
International registered trademark n. 804888 APPLICATION CHARTS Fig. 4 Fig. 5 Leaf weight (Kg) OPERATOR Leaf length (m) TECHNICAL DATA FOIL P 36V BR FOIL S 24V FOIL P 230V FOIL P 24V FOIL S 230V FOIL S 36V BR Power supply 36Vac... -
Page 4: Fig. 6
INSTALL The max. stroke is referred to the max. opening angle INSIDE indicated in the side column THE PROPERTY! Fig. 7 FOIL P 500 FOIL S 400 500 mm - 480 mm 400 mm - 380 mm TOTAL STROKE... -
Page 5: Fig. 8
1219 100° 100° INSTALLATION ON MASONRY PILLARS, BY MAKING A RECESS DIMENSIONS IN mm * FOIL S 400 *1150 ** FOIL S 500 *** FOIL P 400 **1250 **** FOIL P 500 180 Min. ***1600 90 Min. ****1800 Fig. 11 180 Min. -
Page 6: Table Of Contents
ENGLISH International registered trademark n. 804888 INSTALLATION - PRELIMINARY NOTES Open package carefully, making sure loose parts fixing accessories For a proper operation, it is important to place as the operator as the front and rear brackets in a perfectly horizontal position with the help of a level, as shown in Fig. 13 LEVEL THE REAR BRACKET Example... - Page 7 ENGLISH International registered trademark n. 804888 ONLY FOR «FOIL P» SPHERIC JOINT MOUNTING Fig. 20 Fig. 19 FRONT BRACKET INSTALLATION Once the operator has been fixed on the rear bracket, close the leaf and proceed as follows: Pull completely chrome...
- Page 8 ENGLISH International registered trademark n. 804888 INSTALLATION OF THE OPERATOR ON THE FRONT BRACKET Place the operator shaft in the housing of the front bracket - Fig. 25 Secure the shaft to the front bracket by tightening the screw - Fig. 25 Fig.
- Page 9 ENGLISH International registered trademark n. 804888 ONLY FOR «FOIL S» FRONT BRACKET INSTALLATION Once the operator has been fixed on the rear bracket, and proceed as follows: CLOSE THE LEAF Place the front bracket on the gate and place the shaft in the housing - Fig. 29 With the help of a level - Fig.
- Page 10 ENGLISH International registered trademark n. 804888 INSTALLATION OF THE OPERATOR ON THE FRONT BRACKET Place the operator shaft in the housing of the front bracket - Fig. 34 Secure the shaft to the front bracket by tightening the screw - Fig. 34 Fig.
- Page 11 ENGLISH International registered trademark n. 804888 EXTERNAL RELEASE INSTALLATION - ACCESSORY ON DEMAND Unlock the operator by lifting the release flap - release instructions chapter 21 Once the flap is open, unscrew and remove the complete release group - Fig. 37 Unscrew and remove the lower shell of the operator as well, as shown in Fig.
- Page 12 * Increase the cable section in case of high distance from the control unit Fig. 46 MOTOR TERMINAL BOARD WIRING FOIL S (24 V ) FOIL P FOIL S (230 V ) FOIL P FOIL P FOIL S (36 V )
-
Page 13: Periodic Maintenance
(rear and front brackets, swing fork) Check the correct operation and the conditions of all accessories, especially the safety devices ANNUAL Lubricate the shaft with SEA grease (GREASE GL 00 code 65000009) ANNUAL FTER THE MAINTENANCE IT IS NECESSARY TO REPEAT THE AUTOMATION TESTING AND COMMISSIONING... - Page 14 14. Transit through the leaves is allowed only when the gate is fully open. 15. The User must not attempt to repair or to take direct action on the system and must solely contact qualified SEA personnel or SEA service centers. The User can apply only the manual function of emergency.
-
Page 15: Declaration Of Conformity
La SEA S.p.A. dichiara sotto la propria responsabilità e, se applicabile, del suo rappresentante autorizzato che, con l’installazione degli adeguati dispositivi di sicurezza e di filtraggio disturbi, i prodotti:... - Page 16 International registered trademark n. 804888 S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Telephone: + 39 0 861 588341 www.seateam.com...
