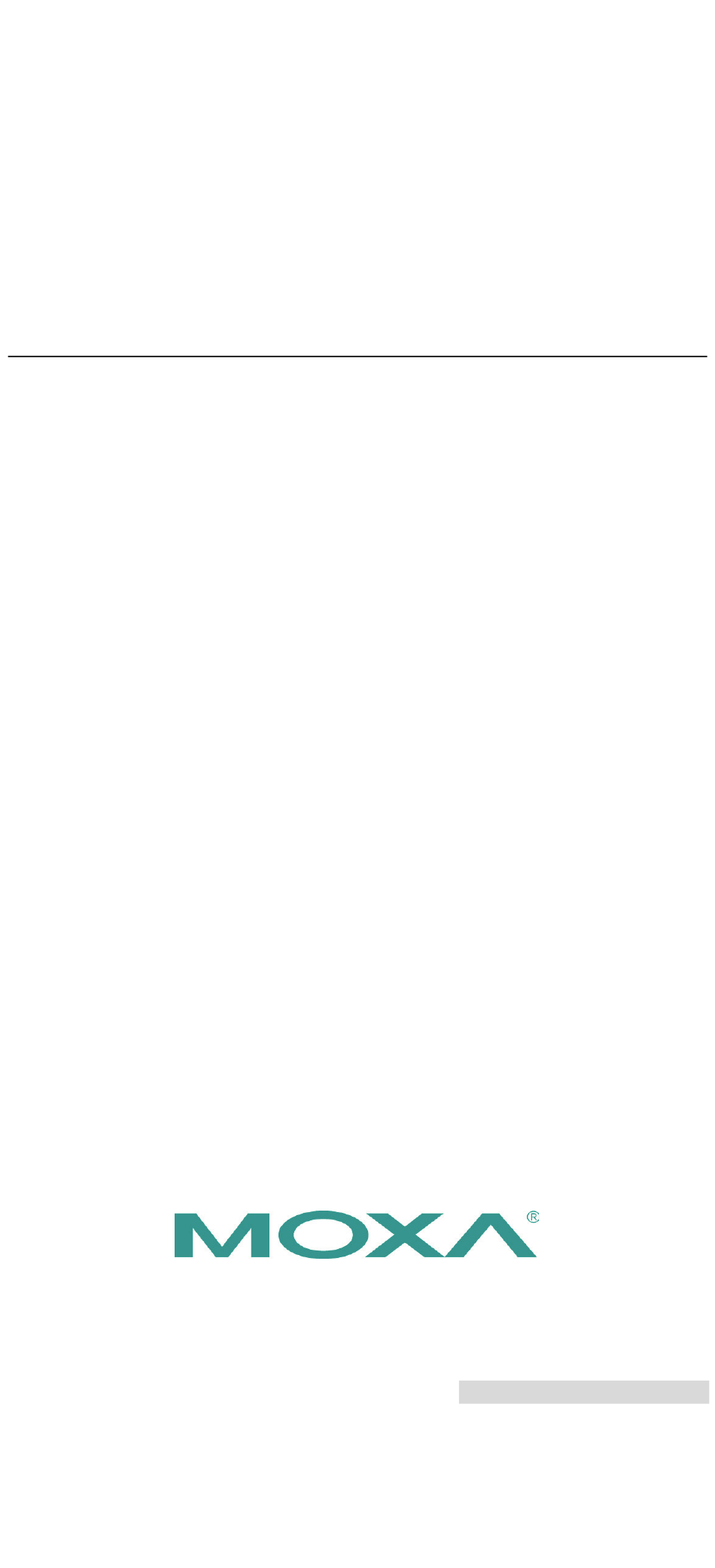

- Page 1 EDS-205A/208A Series Quick Installation Guide Moxa EtherDevice Switch Version 8.5, September 2024 Technical Support Contact Information www.moxa.com/support 2024 Moxa Inc. All rights reserved. P/N: 180200205002D *180200205002D*...
-
Page 2: Package Checklist
Overview The EDS-205A/208A Series industrial Ethernet switches are entry-level industrial 5 and 8-port Ethernet switches that support IEEE 802.3, IEEE 802.3u, and IEEE 802.3x with 10/100M, full/half-duplex, and MDI/MDIX auto-sensing. The EDS-205A/208A Series provides 12-48 VDC redundant power inputs. The switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C, and IP30 metal housing makes them rugged enough for any harsh industrial environment. - Page 3 Panel Layout of EDS-205A/208A (Standard) 1. Grounding screw 2. Terminal block for power input P1/P2 3. Heat dissipation orifices 4. DIP switches 5. Power input P1 LED 6. Power input P2 LED 7. 10/100BaseT(X) port 8. TP port’s 10/100 Mbps 9.
- Page 4 Panel Layout of EDS-205A-M-SC/ST NOTE: The appearance of EDS- 205A-S-SC is identical to the EDS-205A-M-SC. 1. Grounding screw 2. Terminal block for power input P1/P2 3. Heat dissipation orifices 4. DIP switches 5. Power input P1 LED 6. Power input P2 LED 7.
- Page 5 Panel Layout of EDS-208A-M-SC/ST NOTE: The appearance of EDS- 208A-S-SC is identical to the EDS-208A-M-SC. 1. Grounding screw 2. Terminal block for power input P1/P2 3. DIP switches 4. Power input P1 LED 5. Power input P2 LED 6. 10/100BaseT(X) Port 7.
- Page 6 Panel Layout of EDS-208A-MM-SC/ST NOTE: The appearance of EDS- 208A-SS-SC is identical to EDS-208A-MM-SC. 1. Grounding screw 2. Terminal block for power input P1/P2 3. DIP switches 4. Power input P1 LED 5. Power input P2 LED 6. 10/100BaseT(X) port 7.
-
Page 7: Mounting Dimensions
Mounting Dimensions EDS-205A EDS-208A Unit = mm (inch) - 7 -... -
Page 8: Din Rail Mounting
DIN-rail Mounting The aluminum DIN-rail attachment plate which adheres to the EN 69715 standard should already be fixed to the back panel of the EDS when you take it out of the box. If you need to reattach the DIN-rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 9: Wiring Requirements
Do not screw the screws in completely—leave about 2 mm to allow room for sliding the wall mount panel between the wall and the screws. STEP 3: Once the screws are fixed on the wall, insert the four screw heads through the large parts of the keyhole-shaped apertures, and then slide the EDS-205A/208A... -
Page 10: Grounding The Etherdevice Switch
Grounding the EtherDevice Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. -
Page 11: Communication Connections
Communication Connections The EDS-205A models have 4 or 5 10/100BaseT(X) Ethernet ports, and 1 or 0 (zero) 100 BaseFX multi/single-mode (SC/ST-type connector) fiber ports. The EDS-208A models have 6, 7 or 8 10/100BaseT(X) Ethernet ports, and 2, 1 or 0 (zero) 100 BaseFX multi/single-mode (SC/ST-type connector) fiber ports. -
Page 12: Redundant Power Inputs
Remember to connect the Tx (transmit) port of device I to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II. If you make your own cable, we suggest labeling the two sides of the same line with the same letter (A-to-A and B-to-B, as shown below, or A1-to-A2 and B1-to-B2). -
Page 13: Led Indicators
QoS priority mapping matrix in each queue: QoS 3bit priority 7, 6 5, 4 3, 2 1, 0 Queues Note: Enabling the QoS DIP switch will also enable Multicast Filtering which will block LLDP & PROFINET PTCP-Delay traffic by filtering frames with a destination MAC address within the range of 01-80-C2-00-00-02 to 01-80-C2- 00-00-0F. -
Page 14: Switching, Filtering, And Forwarding
Switching, Filtering, and Forwarding Each time a packet arrives at one of the switched ports, a decision is made to either filter or forward the packet. Packets with source and destination addresses belonging to the same port segment will be filtered, constraining those packets to one port, and relieving the rest of the network from the need to process them. -
Page 15: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control Processing Type Store and Forward Flow Control IEEE 802.3x flow control, back pressure flow control Interface RJ45 Ports 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection Fiber Ports... - Page 16 Typical Distance: To reach the typical distance of a specified fiber transceiver, please refer to the following formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB). Power Rated Input Voltage and EDS-205A Series: 12/24/48 VDC, Current 0.29 A (max.), Class 2 EDS-208A Series: 12/24/48 VDC, 0.3/0.15/0.08 A, Class 2 Input Voltage...
- Page 17 EN 61000-4-5 (Surge), Level 3 EN 61000-4-6 (CS), Level 3 EN 61000-4-8 Hazardous Location UL/cUL Class I, Division 2, Groups A, B, C, and D; ATEX Zone 2, Ex ec IIC T4 Gc IECEx (EDS-205A Series only): IECEx UL 14.0085X IEC 60079-0:2018 IEC 60079-7:2015/A1:2018 Railway...
-
Page 18: Hazardous Location
WARNING • The PWR terminal block plug requires 24 to 12 AWG wiring size, (0.205 to 3.31 mm ) torque 4.5 in-lb, (0.509 N-m) min.105 ˚C, copper conductors only. • The recommended stripping length is 7 to 8 mm. • Please use optional optical transceivers (SFP/Fixed Fiber) that comply with IEC 60825-1, 21 CFR 1040 Section 1040.10 and 1040.11, classified as Class 1 laser products. -
Page 19: Usage Guidelines
IP54 in accordance with EN/IEC 60079-0 and accessible only with use of a tool. • Transient protection shall be provided that is set at a level not exceeding 140 % of the peak rated voltage value at the supply terminals to the equipment.
