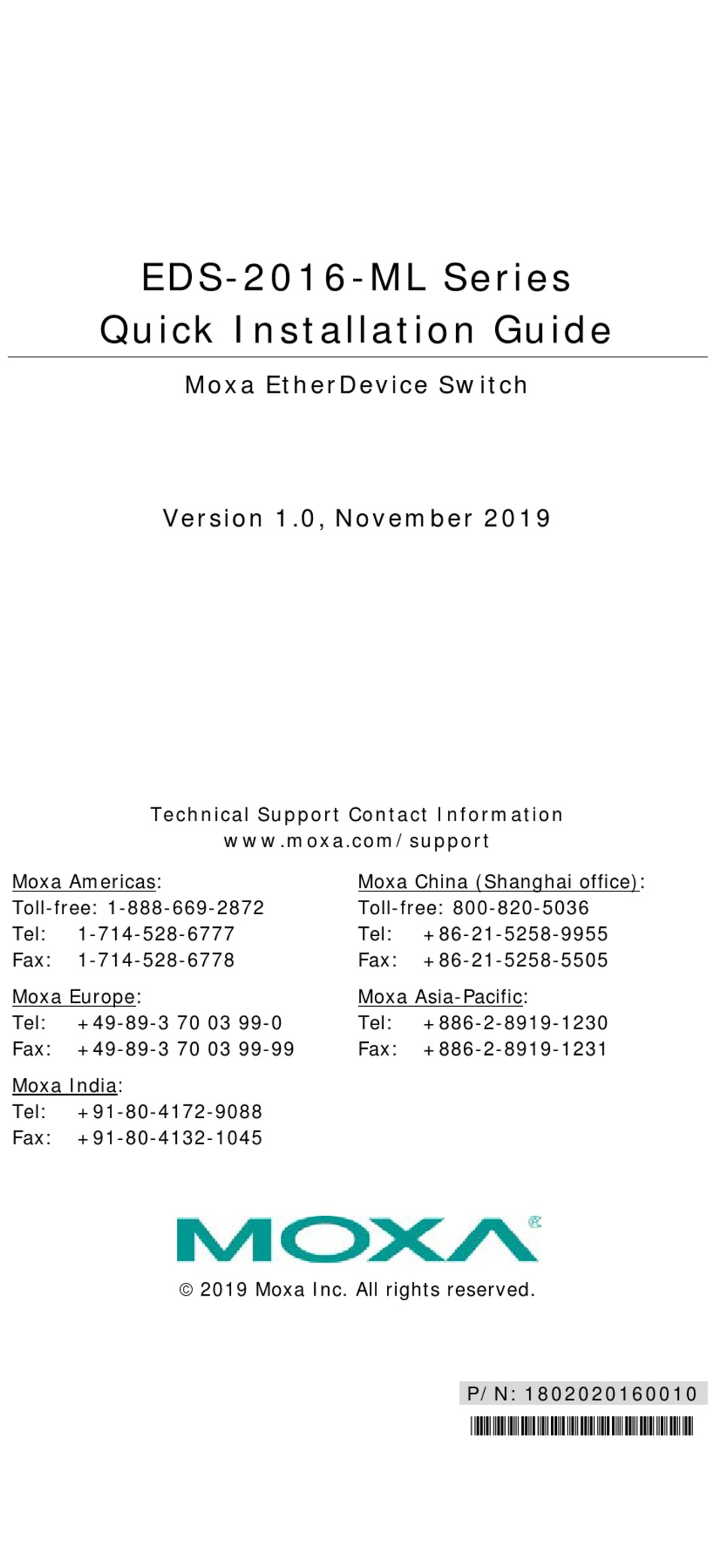

EDS-2016-ML Series
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Moxa EtherDevice Switch
Version 1.0, November 2019
Technical Support Contact Information
www.moxa.com/support
2019 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802020160010
*1802020160010*
Advertisement
Table of Contents
Related Manuals for Moxa Technologies EtherDevice EDS-2016-ML Series
Summary of Contents for Moxa Technologies EtherDevice EDS-2016-ML Series
- Page 1 EDS-2016-ML Series Quick Installation Guide Moxa EtherDevice Switch Version 1.0, November 2019 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230...
-
Page 2: Package Checklist

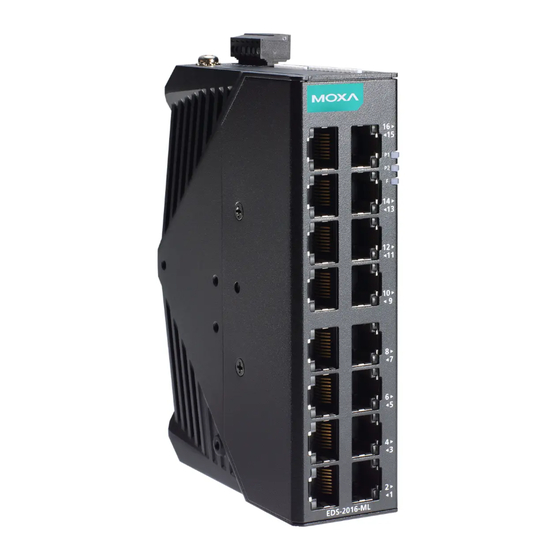

Overview The EDS-2016-ML Series industrial Ethernet switches have 16 10/100M ports and up to two optical fiber ports with SC/ST connector type options. The EDS-2016-ML provides 12/24/48 VDC redundant power inputs, and the switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. - Page 3 Features High Performance Network Switching Technology • 10/100BaseT(X) auto-negotiation speed, full/half duplex mode, auto MDI/MDI-X connection, and 100BaseFX (SC/ST type, Multi/Single mode). • IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX. • IEEE 802.1p for Quality of Service (QoS) traffic prioritized function. •...
- Page 4 Panel Layout of EDS-2016-ML (Standard type) 1. Grounding screw 2. Terminal block for power input (PWR1, PWR2) and relay output 3. DIP switch 4. Power input PWR1 LED 5. Power input PWR2 LED 6. Fault LED 7. Port number 8. 10/100 BaseT(X) Port 9.
- Page 5 Panel Layout of EDS-2016-ML (SC type) 1. Grounding screw 2. Terminal block for power input (PWR1, PWR2) and relay output 3. DIP switch 4. Power input PWR1 LED 5. Power input PWR2 LED 6. Fault LED 7. Port number 8. 10/100 BaseT(X) Port 9.
- Page 6 Panel Layout of EDS-2016-ML (ST type) 1. Grounding screw 2. Terminal block for power input (PWR1, PWR2) and relay output 3. DIP switch 4. Power input PWR1 LED 5. Power input PWR2 LED 6. Fault LED 7. Port number 8. 10/100 BaseT(X) Port 9.
-
Page 7: Mounting Dimensions
Mounting Dimensions EDS-2016-ML Series EDS-2016-ML Fiber Series - 7 -... -
Page 8: Din-Rail Mounting
DIN-Rail Mounting There are two options for DIN-rail mounting that can be used on an EDS. Option 1 is the default type when the product is shipped. Option 1 (Default): When shipped, the metal DIN-rail mounting kit is fixed to the back panel of the EDS. - Page 9 Suggested Installation Method STEP 1: Detach the metal DIN-rail mounting kit from the back panel and attach it to the side panel (mold side) in either the horizontal or vertical direction as indicated in the figure below. STEP 2: Insert the upper lip of the DIN-rail kit into the mounting rail.
-
Page 10: Wall Mounting (Optional)
Wall Mounting (optional) For some applications, you will find it convenient to mount EDS on the wall, as illustrated below. STEP 1: Remove the aluminum DIN-Rail attachment plate from EDS’s rear panel, and then attach the wall mount plates, as shown in the diagram below. -
Page 11: Wiring Requirements
Wiring Requirements WARNING Do not disconnect modules or wires unless the power supply has been switched off or the area is known to be non- hazardous. The devices may only be connected to the supply voltage shown on the type plate. The devices are designed for operation with a Safety Extra-Low Voltage. -
Page 12: Wiring The Alarm Contact
ATTENTION This product is intended to be mounted to a well-grounded mounting surface, such as a metal panel. Wiring the Alarm Contact The Alarm Contact consists of the two middle contacts of the terminal block on EDS’s top panel. You may refer to the next section for detailed instructions on how to connect the wires to the terminal block connector, and how to attach the terminal block connector to the terminal block receptor. -
Page 13: Communication Connections
ATTENTION One individual conductor in a clamping point with 28-14 AWG wire size, and a torque value of 1.7 lb-in should be used. Communication Connections The EDS-2016-ML models have 14 or 16 10/100BaseT(X) Ethernet ports, and 0 or 2 100BaseFX (SC/ST-type connector) fiber ports. 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on the EDS’s front panel are used to connect to Ethernet-enabled devices. -
Page 14: Redundant Power Inputs
signals, optical signals do not require a circuit in order to transmit data. Consequently, one of the optical lines is used to transmit data from device I to device II, and the other optical line is used transmit data from device II to device I, for full-duplex transmission. All you need to remember is to connect the Tx (transmit) port of device I to the Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx (transmit) port of device II. -
Page 15: Dip Switch Settings
corresponding PORT ALARM DIP Switch is set to ON is not properly connected. If neither of these two conditions occurs, the Fault circuit will be closed. NOTE The DIP settings will be activated when the device is powered on the next time. DIP Switch Settings EDS-2016-ML Series DIP Switches DIP Switch... -
Page 16: Auto Mdi/Mdi-X Connection
Color State Description When the corresponding PORT alarm is enabled and the port’s link is active, or when the corresponding PORT alarm is disabled. TP port’s 100Mbps link is active. 100M Fiber Green Blinking Data is being transmitted at 100Mbps. TP port’s 100Mbps link is inactive. -
Page 17: Switching, Filtering, And Forwarding
Switching, Filtering, and Forwarding Each time a packet arrives at one of the switched ports, a decision is made to either filter or forward the packet. Packets with source and destination addresses belonging to the same port segment will be filtered, constraining those packets to one port, and relieving the rest of the network from the need to process them. -
Page 18: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100Base FX, IEEE 802.1p for Class of Service Flow Control EEE 802.3x flow control, back pressure flow control Interface RJ45 Ports 10/100BaseT(X) auto negotiation speed Fiber Ports 100BaseFX ports (SC/ST connector) LED Indicators PWR1, PWR2, Fault, 10/100M, 100M DIP Switch... - Page 19 Input Current EDS-2016-ML: 0.296 A (max.) EDS-2016-ML-MM-SC: 0.443 A (max.) EDS-2016-ML-MM-ST: 0.458 A (max.) EDS-2016-ML-SS-SC: 0.460 A (max.) Relay output: 24 VDC, 1 A, Resistance Connection Removable 6-contact terminal block 28-14 AWG, 1.7 lb-in All wires must be able to withstand at least 85°C Overload Current Present Protection...
