- Page 1 Moxa EtherDevice Switch EDS-205A/208A Series Hardware Installation Guide Fourth Edition, October 2009 © 2009 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802002050023...
-
Page 2: Package Checklist

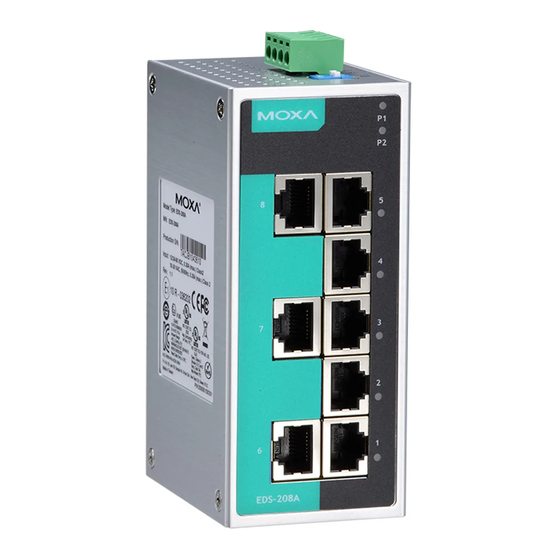

Overview The EDS-205A/208A series of industrial Ethernet switches are entry-level industrial 5 and 8-port Ethernet switches that support IEEE 802.3, IEEE 802.3u, and IEEE 802.3x with 10/100M, full/half-duplex, and MDI/MDIX auto-sensing. The EDS-205A/208A series provides 12/24/48 VDC (9.6 to 60VDC)/18 to 30 VAC redundant power inputs that can be connected simultaneously to a live AC/DC power source. - Page 3 Panel Layout of EDS-205A/208A (Standard) EDS-205A EDS-208A Front Panel View Front Panel View Grounding screw Terminal block for power input P1/P2 Heat dissipation orifices DIP Switches Power input P1 LED Power input P2 LED 10/100BaseT(X) Port TP port’s 10/100 Mbps LED Top Panel View Top Panel View Model Name...
- Page 4 Panel Layout of EDS-205A-M-SC/ST EDS-205A-M-SC EDS-205A-M-ST NOTE: Front Panel View Front Panel View The appearance of EDS-205A-S-SC is identical to EDS-205A-M-SC. Grounding screw Terminal block for power input P1/P2 Heat dissipation orifices DIP Switches Top Panel View Top Panel View Power input P1 LED Power input P2 LED 10/100BaseT(X) Port...
- Page 5 Panel Layout of EDS-208A-M-SC/ST EDS-208A-M-ST EDS-208A-M-SC NOTE: Front Panel View Front Panel View The appearance of EDS-208A-S-SC is identical to EDS-208A-M-SC. Grounding screw Terminal block for power input P1/P2 Heat dissipation Top Panel View Top Panel View orifices DIP Switches Power input P1 LED Power input P2 LED 10/100BaseT(X) Port...
- Page 6 Panel Layout of EDS-208A-MM-SC/ST EDS-208A-MM-ST EDS-208A-MM-SC NOTE: Front Panel View Front Panel View The appearance of EDS-208A-SS-SC is identical to EDS-208A-MM-SC. Grounding screw Terminal block for power input P1/P2 Heat dissipation Top Panel View Top Panel View orifices DIP Switches Power input P1 LED Power input P2 LED 10/100BaseT(X) Port...
-
Page 7: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) - 7 -... -
Page 8: Din-Rail Mounting
DIN-Rail Mounting The aluminum DIN-rail attachment plate should already be fixed to the back panel of the EDS when you take it out of the box. If you need to reattach the DIN-rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 9: Wiring Requirements
STEP 3: Once the screws are fixed on the wall, insert the four screw heads through the large parts of the keyhole-shaped apertures, and then slide the EDS-205A/208A downwards, as indicated. Tighten the four screws for added stability. ⇒ Wiring Requirements WARNING Safety First! Turn the power off before disconnecting modules or wires. -
Page 10: Grounding The Etherdevice Switch
Grounding the EtherDevice Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. - Page 11 MDI Port Pinouts MDI-X Port Pinouts 8-pin RJ45 Signal Signal RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring Straight-Through Cable Switch Port NIC Port RJ45 Plug Pin 1 RJ45 RJ45 Connector Cable Wiring Connector RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring Switch Port Cross-Over Cable Switch Port...
-
Page 12: Redundant Power Inputs
ST-Port Pinouts ST-Port to ST-Port Cable Wiring Cable Wiring ATTENTION This is a Class 1 Laser/LED product. To avoid causing serious damage to your eyes, do not stare directly into the Laser Beam. Redundant Power Inputs Both power inputs can be connected simultaneously to live AC/DC power sources. -
Page 13: Led Indicators
LED Indicators The front panel of the Moxa EtherDevice Switch contains several LED indicators. The function of each LED is described in the table below. Color State Description Power is being supplied to power input P1. AMBER Power is not being supplied to power input Power is being supplied to power input P2. -
Page 14: Switching And Address Learning
Switching and Address Learning The EDS has an address table that can hold up to 1024 addresses, which makes it suitable for use with large networks. The address tables are self-learning, so that as nodes are added or removed, or moved from one segment to another, the EDS automatically keeps up with new node locations. - Page 15 Power Input Voltage 12/24/48 VDC (9.6 to 60 VDC), 18 to 30VAC (47 to 63 Hz) Input Current @ 24VDC 0.1 A (EDS-205A) 0.11 A (EDS-205A-M/S) 0.13 A (EDS-208A) 0.17 A (EDS-208A-M/S) 0.22 A (EDS-208A-MM/SS) Connection Removable 4-contact terminal block Overload Current 1.1 A Protection...
- Page 16 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa Europe: Toll-free: 1-888-669-2872 Tel: +49-89-3 70 03 99-0 Tel: +1-714-528-6777 Fax: +49-89-3 70 03 99-99 Fax: +1-714-528-6778 Moxa Asia-Pacific: Moxa China (Beijing office): Tel: +886-2-8919-1230 Tel: +86-10-6872-3959/60/61 Fax: +886-2-8919-1231 Fax: +86-10-6872-3958 - 16 -...
