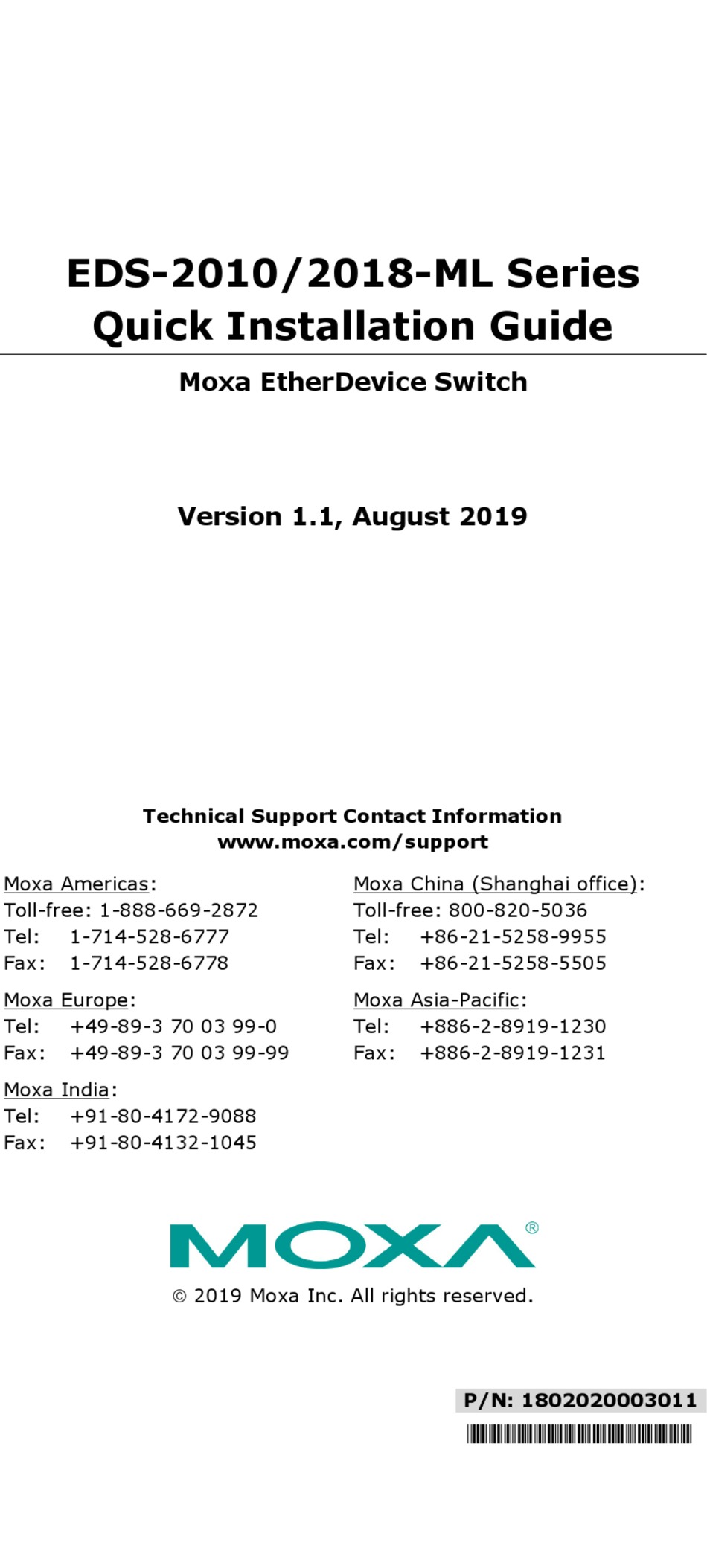

EDS-2010/2018-ML Series
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Moxa EtherDevice Switch
Version 1.1, August 2019
Technical Support Contact Information
www.moxa.com/support
2019 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802020003011
*1802020003011*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies EDS-2010-ML Series
Summary of Contents for Moxa Technologies EDS-2010-ML Series
- Page 1 EDS-2010/2018-ML Series Quick Installation Guide Moxa EtherDevice Switch Version 1.1, August 2019 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230...
-
Page 2: Package Checklist

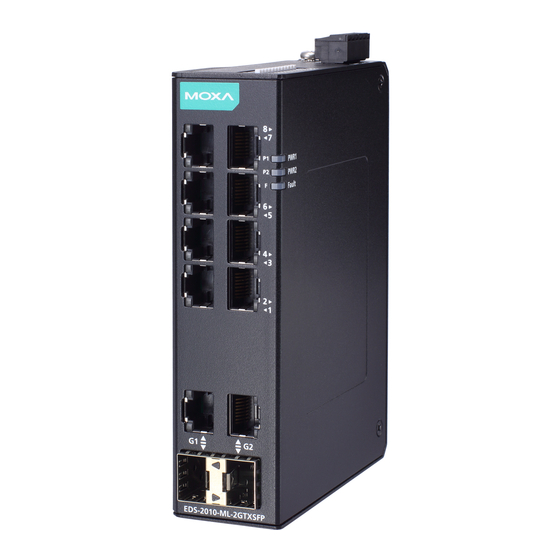

Overview The EDS-2010/2018-ML series of industrial Ethernet switches are equipped with 8/16-ports 10/100M copper ports and 2 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports. The switches are ideal for applications that require high-bandwidth data convergence and long-distance uplinks. The EDS-2010/2018-ML provides 12/24/48 VDC redundant power inputs, and the switches are available with a standard operating temperature range from -10 to 60°C, or with a wide operating temperature range from -40 to 75°C. - Page 3 Features High Performance Network Switching Technology • 10/100/1000BaseT(X), 10/100BaseT(X) auto-negotiation speed, full/half duplex mode, auto MDI/MDI-X connection, and 100/1000Base SFP slot. • IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT, and IEEE 802.3z for 1000BaseX. • IEEE 802.1p for Quality of Service (QoS) traffic prioritized function.
- Page 4 Panel Layout of EDS-2010-ML-2GTXSFP / EDS- 2018-ML-2GTXSFP 1. Grounding screw 2. Terminal block for power input (PWR1, PWR2) and relay output 3. DIP switch 4. Power input PWR1 LED 5. Power input PWR2 LED 6. Fault LED 7. Port number 8.
-
Page 5: Mounting Dimensions
Mounting Dimensions EDS-2010-ML Series EDS-2018-ML Series - 5 -... -
Page 6: Din Rail Mounting
DIN-rail Mounting There are two options for DIN-rail mounting that can be used on an EDS. Option 1 is the default type when the product is shipped. Option 1 (Default): When shipped, the metal DIN-rail mounting kit is fixed to the back panel of the EDS. - Page 7 Suggested Installation Method STEP 1: Detach the metal DIN-rail mounting kit from the back panel and attach it to the side panel (mold side) in either the horizontal or vertical direction as indicated in the figure below. STEP 2: Insert the upper lip of the DIN-rail kit into the mounting rail.
-
Page 8: Wall Mounting (Optional)
STEP 1: Remove the aluminum DIN-Rail attachment plate from EDS’s rear panel, and then attach the wall mount plates, as shown in the diagram below. EDS-2010-ML Series EDS-2018-ML Series STEP 2: Mounting EDS on the wall requires 4 screws. Use the switch, with wall mount plates attached, as a guide to mark the correct locations of the 4 screws. -
Page 9: Wiring Requirements
Wiring Requirements WARNING Do not disconnect modules or wires unless the power supply has been switched off or the area is known to be non- hazardous. The devices may only be connected to the supply voltage shown on the type plate. The devices are designed for operation with a Safety Extra-Low Voltage. -
Page 10: Wiring The Alarm Contact
Grounding Moxa EtherDevice Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. A 4 mm conductor must be used when a connection to the external grounding screw is utilized. -
Page 11: Wiring The Redundant Power Inputs
Wiring the Redundant Power Inputs The top two contacts and the bottom two contacts of the 6-contact terminal block connector on the EDS’s top panel are used for the EDS’s two DC inputs. Top and front views of one of the terminal block connectors are shown here. - Page 12 10/100Base T(x) RJ45 Pinouts MDI-X Port Pinouts 8-pin RJ45 MDI Port Pinouts Signal Signal RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-over Cable Wiring 10/100/1000BaseT(X) Ethernet Port Connection The 10/100/1000BaseT(X) ports located on Moxa EtherDevice Switch’s front panel are used to connect to Ethernet-enabled devices.
- Page 13 1000BaseT RJ45 Pinouts MDI-X BI_DA+ BI_DB+ BI_DA- BI_DB- BI_DB+ BI_DA+ BI_DC+ BI_DD+ BI_DC- BI_DD- BI_DB- BI_DA- BI_DD+ BI_DC+ BI_DD- BI_DC- RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-over Cable Wiring - 13 -...
-
Page 14: Redundant Power Inputs
100/1000Base-X Fiber Port The Fiber ports on the EDS-2010/2018-ML Series are SFP type slots, which support both 100Base-FX and 1000Base-X speeds. Moxa provides complete transceiver models for various distance requirements. The concept behind the LC port and cable is quite straightforward. Suppose you are connecting devices I and II. -
Page 15: Dip Switch Settings
If neither of these two conditions occurs, the Fault circuit will be closed. NOTE The DIP settings will be activated when the device is powered on the next time. DIP Switch Settings EDS-2010-ML Series DIP Switches DIP Switch Setting Description Port Alarm Enables the corresponding PORT Alarm. -
Page 16: Led Indicators
EDS-2018-ML Series DIP Switches DIP Switch Setting Description Port Alarm Enables the corresponding PORT Alarm. If Function the port’s link fails, the relay will form an P1 to P16 open circuit and the fault LED will light up. P17 is G1 Disables the corresponding PORT Alarm. -
Page 17: Auto Mdi/Mdi-X Connection
Color State Description TP port’s 10/100Mbps link is active. 10M/100M/ Data is being transmitted at 1000M Blinking Green 10/100Mbps. Copper TP port’s 10/100Mbps link is Bottom LED inactive. TP port’s 100Mbps link is active. 10M/100M Data is being transmitted at Copper Top Green Blinking... -
Page 18: Switching, Filtering, And Forwarding
Switching, Filtering, and Forwarding Each time a packet arrives at one of the switched ports, a decision is made to either filter or forward the packet. Packets with source and destination addresses belonging to the same port segment will be filtered, constraining those packets to one port, and relieving the rest of the network from the need to process them. -
Page 19: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100Base FX, IEEE 802.3ab for 1000BaseT, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.1p for Class of Service Flow Control IEEE 802.3x flow control, back pressure flow control Interface RJ45 Ports 10/100BaseT(X) and 10/100/1000BaseT(X) auto negotiation speed Fiber Ports... - Page 20 Regulatory Approvals Safety UL 61010-2-201, EN 62368-1(LVD) FCC Part 15, CISPR (EN55032) class A EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 EN61000-4-6 (CS), Level 3 EN61000-4-8 Hazardous UL/cUL Class I, Division 2, Groups A, B, C, and D; Location* ATEX Zone 2, Ex nA nC IIC T4 Gc Maritime*...
