  • Page 1 MOXA EtherDevice™ Switch EDS-518A Series Hardware Installation Guide First Edition, March 2006 Moxa Networking Co., Ltd. Tel: +886-2-2910-1230 Fax: +886-2-2910-1231 www.moxa.com support@moxanet.com (Worldwide) support@moxa.com (The Americas) P/N: 1802005180000...
  • Page 2: Package Checklist

    Package Checklist MOXA EtherDevice™ Switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. 1 MOXA EtherDevice Switch EDS-518A Hardware Installation Guide CD-ROM with User’s Manual and Windows Utility Moxa Product Warranty Booklet RJ45 to DB9 Console port cable Protective caps for unused ports...

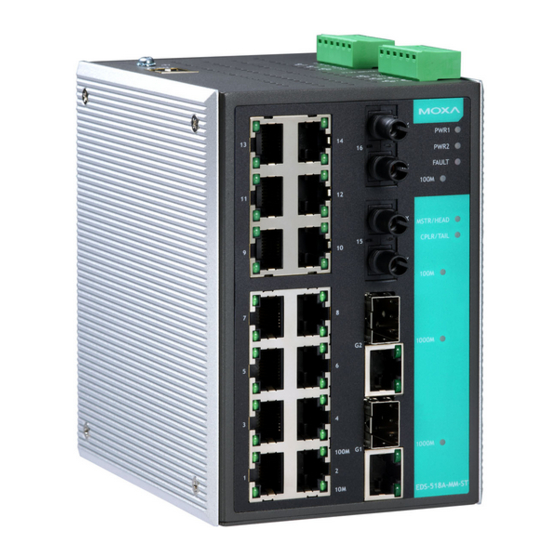

  • Page 3 Panel Views of EDS-518A Grounding screw Console port Heat dissipation orifices 6-pin terminal block for DI 1, DI 2, and PWR 2 6-pin terminal block for PWR1, Relay 1, and Relay 2 10/100BaseT(X), ports 1 to 16 PWR 1: LED for power input 1 PWR 2: LED for power input 2 Fault LED 10.
  • Page 4 Panel Views of EDS-518A (SC/ST Type) NOTE: The appearance of EDS-518A-SS-SC is identical to EDS-518A-MM-SC. The appearance of EDS-518A-MM-ST is identical to EDS-518A-MM-SC. Grounding screw Console port Heat dissipation orifices 6-pin terminal block for DI 1, DI 2, and PWR 2 6-pin terminal block for PWR1, Relay 1, and Relay 2 10/100BaseT(X), ports 1 to 14...
  • Page 5: Mounting Dimensions (Unit = Mm)

    Mounting Dimensions (unit = mm) 30.00 15.00 13.4 36.91 71.01 0.79 PWR1 PWR2 DlN-Rail FAULT 100M MASTER COUPLER 100M 1000M DlN-Rail Kit 1000M 100M EDS-518A-MM-SC Front View 127.52 Side View 18.2 13.9 13.9 DlN-Rail Kit 30.50 86.80 7.75 7.75 Rear View Wall Mounting Kit DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be fixed to the back...
  • Page 6: Wall Mounting (Optional)

    Wall Mounting (Optional) For some applications, you will find it convenient to mount MOXA EDS-518A on the wall, as shown by the following illustrations: STEP 1—Remove the aluminum DIN-Rail attachment plate from the MOXA EDS-518A rear plate panel, and then attach the wall mount plates, as shown by the figure on the right.
  • Page 7: Wiring The Relay Contact

    ATTENTION This unit is a built-in type. When the unit is installed in another piece of equipment, the equipment enclosing the unit must comply with fire enclosure regulation IEC 60950/EN60950 (or similar regulation). ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your MOXA EtherDevice Switch.
  • Page 8: Wiring The Redundant Power Inputs

    FAULT: The two sets of relay contacts of the 6-pin terminal block connector are used to detect user-configured events. The two wires attached to Relay1 Relay2 the Fault contacts form an open circuit when a user-configured event is triggered. If a user-configured event does not occur, the Fault circuit remains Relay1...
  • Page 9: Communication Connections

    Communication Connections All models of EDS-518A have one RJ45 console port (RS-232 interface), between 14 and 16 10/100BaseTX Ethernet ports, and 2 10/100/1000BaseTX gigabit Ethernet ports. Some models also have 2 100BaseFX (SC/ST-type connector) fiber ports. In this section, we present two types of diagrams—Pinout Diagrams and Cable Wiring Diagrams—to convey information about the ports and the cables used to connect MOXA EDS-518A to other devices: Pinouts—The meaning of the “Pinouts”...
  • Page 10 RS-232 Connection MOXA EDS-518A has one RS-232 (10-pin RJ45) console port, located on the top panel. Use either an RJ45-to-DB9 or RJ45-to-DB25 cable (see the cable following wiring diagrams) to connect MOXA EDS-518A’s console port to your PC’s COM port. You may then use a console terminal program, such as MOXA PComm Terminal Emulator, to access MOXA EDS-518A’s console configuration utility.
  • Page 11: 10/100Baset(X) Ethernet Port Connection

    10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on MOXA EtherDevice Switch’s front panel are used to connect to Ethernet-enabled devices. Most users will choose to configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically depending on the type of Ethernet cable used (straight-through or cross-over), and the type of device (NIC-type or HUB/Switch-type) connected to the port.
  • Page 12: 1000Baset Ethernet Port Connection

    1000BaseT Ethernet Port Connection 1000BaseT data is transmitted on differential TRD+/- signal pairs over copper wires. MDI/MDI-X Port Pinouts Signal TRD(0)+ TRD(0)- TRD(1)+ TRD(2)+ TRD(2)- TRD(1)- TRD(3)+ TRD(3)- 100BaseFx Ethernet Port Connection The concept behind the SC/ST port and cable is quite straightforward. Suppose you are connecting devices I and II.
  • Page 13: Led Indicators

    LED Indicators The front panel of MOXA EDS-518A contains several LED indicators. The function of each LED is described in the following table: Color State Description Power is being supplied to power input P1. PWR1 AMBER Power is not being supplied to power input P1.
  • Page 14: Specifications

    Specifications Technology Standards IEEE802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1Q, 802.1p, 802.1X, 802.3ad, 802.3z Protocols IGMP V1/ V2/ V3 device, GMRP, GVRP, SNMP V1/V2c/V3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON and EDS-SNMP OPC Server Pro (Optional) MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1,2,3,9 Interface...
  • Page 15 Optical Fiber—1000BaseSX/LX/LHX/ZX Distance: Multi mode: 0 to 500 m, 850 nm (50/125 µm, 400 MHz*km) ‧1000BaseSX 0 to 275 m, 850 nm (62.5/125 µm, 200 MHz*km) 0 to 1100 m, 1310 nm (50/125 µm, 800 MHz*km) ‧1000BaseLX 0 to 550 m, 1310 nm (62.5.125 µm, 500 MHz*km) Single mode: 0 to 10 km, 1310 nm (9/125 µm, 3.5 PS/(nm*km)) ‧1000BaseLX...
  • Page 16: Moxa Internet Services

    Regulatory Approvals Safety UL60950, UL 508 (Pending), CSA C22.2 No. 60950, EN60950 Hazardous Location UL/cUL Class I, Division 2, Groups A, B, C, and D, ATEX Class I, Zone 2, EEx nC IIC (Pending) FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3...
