Moxa EtherDevice Switch

EDS-205 Hardware Installation Guide
Third Edition, June 2008
© 2008 Moxa Inc., all rights reserved.
Reproduction without permission is prohibited.
P/N: 1802002050000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EtherDevice EDS-205 and is the answer not in the manual?

Questions and answers

Summary of Contents for Moxa Technologies EtherDevice EDS-205

  • Page 1: Moxa Etherdevice Switch

    Moxa EtherDevice Switch EDS-205 Hardware Installation Guide Third Edition, June 2008 © 2008 Moxa Inc., all rights reserved. Reproduction without permission is prohibited. P/N: 1802002050000...
  • Page 2: Package Checklist

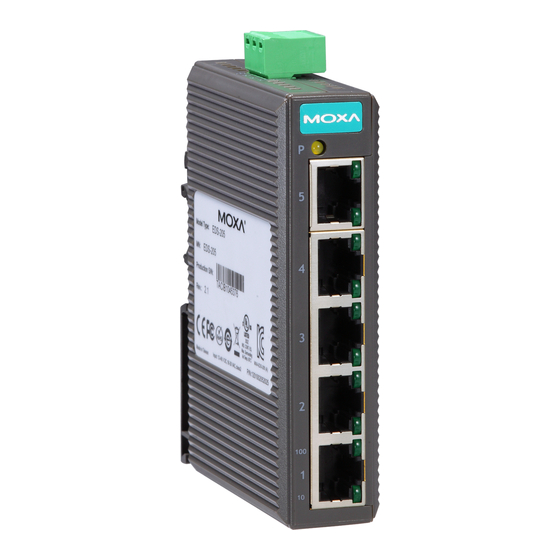

    Overview The Moxa EtherDevice™ Switches, EDS-205 series, are entry-level 5- port Ethernet Switches that provide a cost-effective solution for your industrial Ethernet connection. For EDS-205, you could choose either DC power input from 12 to 48 V or AC power input from 18 to 30V. These products can operation from –10 to 60 and the rugged hardware design makes EDS-205 perfect for ensuring that your Ethernet equipment can meet demanding industrial applications.
  • Page 3: Top View

    Panel Layout of EDS-205 Serieseries Top View 1. Heat dissipation orifices 2. Terminal block for power input and grounding 3. Moxa Logo 4. Power input LED 24 VDC 24 VAC 5. 10/100BaseT(X) Port 6. TP port’s 100 Mbps LED 7. TP port’s 10 Mbps LED 8.
  • Page 4: Mounting Dimensions

    Mounting Dimensions DIN-Rail Mounting The plastic DIN-Rail attachment plate should already be fixed to the rear panel of EDS when you take it out of the box. If you need to reattach the DIN-Rail attachment plate to EDS, make sure the DIN-Rail kit is situated towards the top, as shown in the figures below.
  • Page 5: Wiring Requirements

    To remove Moxa EDS-205 from the DIN-Rail, insert a flat-blade screw driver horizontally into the DIN-Rail kit under the EDS-205, and then pull it upwards and release EDS towards you away from the DIN-Rail. Wiring Requirements Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa EtherDevice Switch.
  • Page 6: Wiring The Power Inputs

    Grounding Moxa EtherDevice Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the right most of 3-contact terminal block to the grounding surface prior to connecting devices. This product is intended to be mounted to a well-grounded mounting surface such as a metal panel.
  • Page 7: Communication Connections

    Communication Connections EDS-205 has five10/100BaseT(X) Ethernet ports. 10/100BaseT(X) Ethernet Port Connection The 10/100BaseT(X) ports located on EDSS’s front panel are used to connect to Ethernet-enabled devices. Below we show pinouts for both MDI (NIC-type) ports and MDI-X (HUB/Switch-type) ports, and also show cable wiring diagrams for straight-through and cross-over Ethernet cables.
  • Page 8: Led Indicators

    LED Indicators The front panel of Moxa EtherDevice Switch contains several LED indicators. The function of each LED is described in the table below. Color State Description Power is being supplied to power input. AMBER Power is not being supplied to power input.
  • Page 9: Switching And Address Learning

    Switching and Address Learning Moxa EtherDevice Switch has an address table that can hold up to 1K node addresses, which makes it suitable for use with large networks. The address tables are self-learning, so that as nodes are added or removed, or moved from one segment to another, Moxa EtherDevice Switch automatically keeps up with new node locations.
  • Page 10 Regulatory Approvl Safety UL508 FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), Shock IEC 60068-2-27 Free Fall IEC 60068-2-32 Vibration IEC 60068-2-6 5 years WARRANTY Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036...
