EDS-P308 Series & SPL-24
Quick Installation Guide
Moxa EtherDevice
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Edition 6.0, February 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
TM
Switch & PoE Splitter
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802003080015
*1802003080015*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies SPL-24
Summary of Contents for Moxa Technologies SPL-24

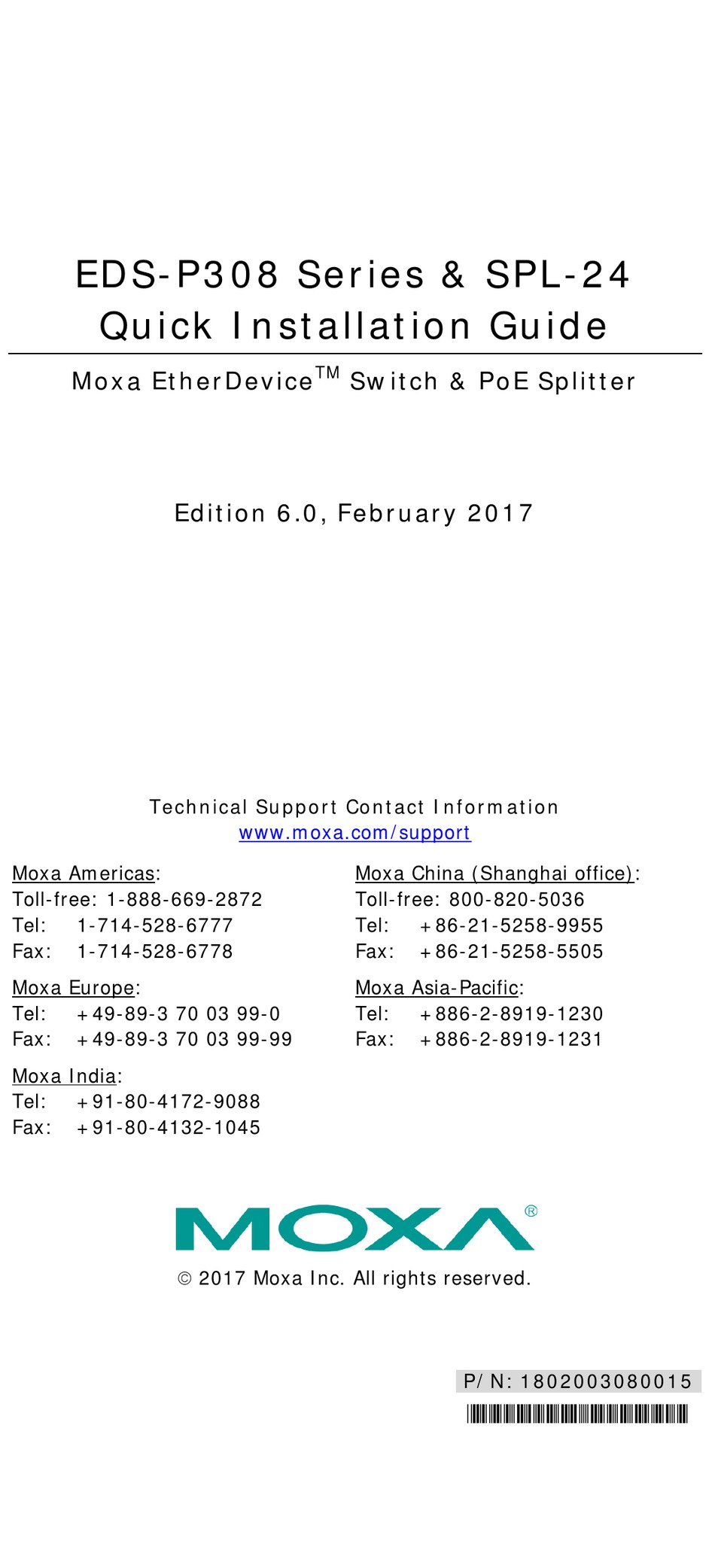

- Page 1 EDS-P308 Series & SPL-24 Quick Installation Guide Moxa EtherDevice Switch & PoE Splitter Edition 6.0, February 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505...
- Page 2 EMI immunity. As an added bonus, the built-in smart alarm function helps system maintainers monitor the health of your Ethernet network. The SPL-24 plays the role of PD, and splits the data signal and power signal that are transmitted from the PSE. The SPL-24 plays a dual role of providing power to industrial devices, and enabling Ethernet connections.
-
Page 3: Wiring Requirements
Wiring Requirements WARNING Do not disconnect modules or wires unless the power supply has been switched off or the area is known to be non-hazardous. The devices may only be connected to the supply voltage shown on the type plate. The devices are designed for operation with a Safety Extra-Low Voltage. -
Page 4: Industrial Grade Reliability
Package Checklist for EDS-P308 Series The Moxa EDS-P308 Series is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. • Moxa EtherDevice™ Switch EDS-P308 • Protective caps for unused ports •... - Page 5 Total Power Budget 61.6 W PoE Output Voltage 45.3 VDC @ 48 VDC power input PoE Output Power 15.4 W for 802.3af PoE Output Current 350 mA for 802.3af Overload Current Protection Present (at the port) PoE Pinout Mode A: Pair 1, 2 (V-); Pair 3, 6 (V+) Power Rated Voltage 48 VDC, redundant dual inputs...
- Page 6 EDS-P308 Series Panel Layout 1. Grounding screw 2. Terminal block for power inputs PWR1, PWR2, and relay output 3. Heat dissipation orifices 4. DIP switches 5. Power input PWR1 LED 6. Power input PWR2 LED 7. Fault LED 8. 10/100BaseT(X) Port 9.
- Page 7 EDS-P308 (SC-type) Panel Layout Product models not shown here: EDS-P308-S-SC is identical to EDS-P308-M-SC. EDS-P308-SS-SC is identical to EDS-P308-MM-SC. 1. Grounding screw 2. Terminal block for power inputs PWR1, PWR2 and relay output 3. Heat dissipation orifices 4. DIP switches 5.
-
Page 8: Mounting Dimensions
Mounting Dimensions Unit = mm (inch) - 8 -... -
Page 9: Din-Rail Mounting
DIN-Rail Mounting The aluminum DIN-Rail attachment plate should already be fixed to the back panel of the EDS-P308 Series when you take it out of the box. If you need to reattach the DIN-Rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 10: Wiring The Redundant Power Inputs
STEP 3: Once the screws are fixed in the wall, insert the four screw heads through the large parts of the keyhole-shaped apertures, and then slide the EDS-P308 downwards, as indicated. Tighten the four screws for added stability. Grounding the EDS-P308 Series Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). -
Page 11: Wiring The Alarm Contact
EDS-P308 Series’ Alarm Contact The EDS-P308 Series has one alarm contact located on its top panel. For detailed instructions on how to connect the alarm contact power wires to the two middle contacts of the 6-contact terminal block connector, see the Wiring the Alarm Contact section on page 10. -
Page 12: Led Indicators
Power is not being supplied to Powered Device (PD) Package Checklist for SPL-24 The Moxa SPL-24 is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. •... - Page 13 Operating temperature range from 0 to 60°C, or extended operating temperature from -40 to 75°C for “-T” models • IP30, plastic case • DIN-Rail or panel mounting ability Specifications of SPL-24 Technology Standards IEEE802.3af Interface RJ45 Ports 10/100BaseT(X) for PoE IN, and...
- Page 14 SPL-24 Panel Layout 1. Heat dissipation orifices 2. Terminal block for power input and grounding 3. Moxa Logo 4. PoE power LED 5. DATA-OUT port 6. PoE IN port 7. DIN-Rail Mounting Dimensions Unit = mm (inch) - 14 -...
- Page 15 The plastic DIN-Rail attachment plate should already be fixed to the back panel of SPL-24 when you take it out of the box. If you need to reattach the DIN-Rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below.
- Page 16 Wiring the SPL-24’s Power Outputs The two left-most contacts of the 3-contact terminal block connector on the SPL-24’s top panel are used for 24 VDC output. Top and front views of one of the terminal block connectors are shown here.
