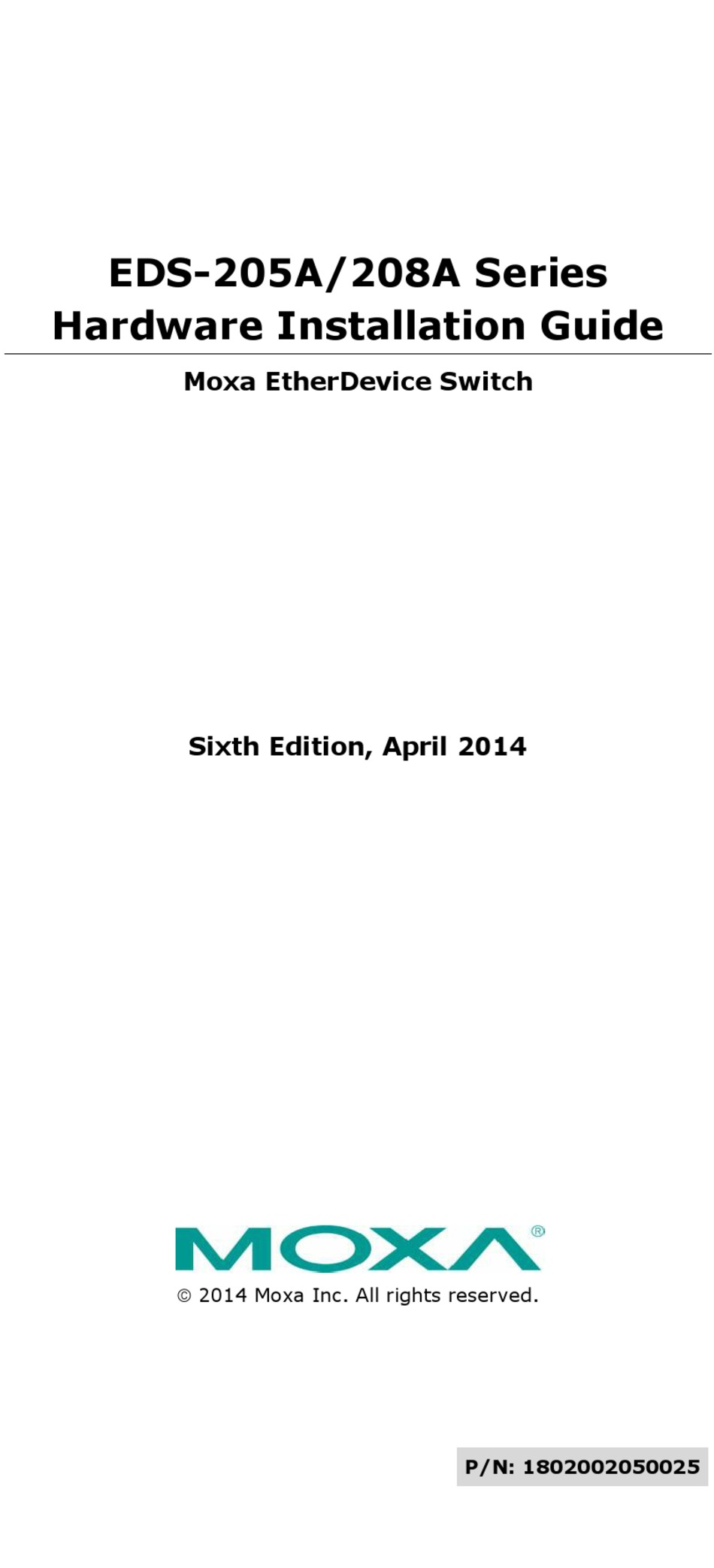

- Page 1 EDS-205A/208A Series Hardware Installation Guide Moxa EtherDevice Switch Sixth Edition, April 2014 2014 Moxa Inc. All rights reserved. P/N: 1802002050025...
-
Page 2: Package Checklist

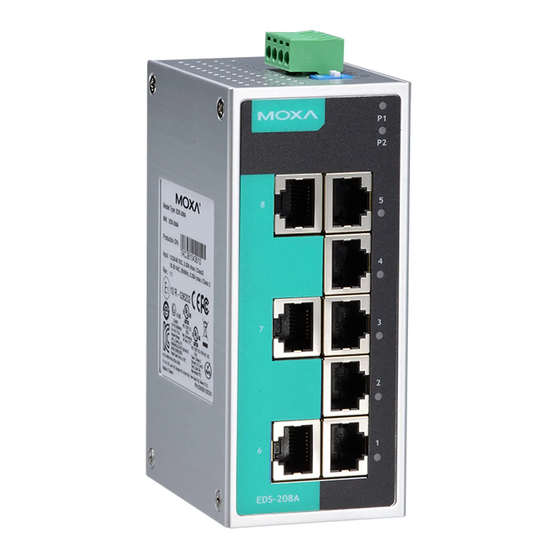

Overview The EDS-205A/208A series of industrial Ethernet switches are entry-level industrial 5 and 8-port Ethernet switches that support IEEE 802.3, IEEE 802.3u, and IEEE 802.3x with 10/100M, full/half-duplex, and MDI/MDIX auto-sensing. The EDS-205A/208A series provides 12/24/48 VDC (9.6 to 60 VDC)/18 to 30 VAC redundant power inputs that can be connected simultaneously to a live AC/DC power source. - Page 3 Panel Layout of EDS-205A/208A (Standard) 1. Grounding screw 2. Terminal block for power input P1/P2 3. Heat dissipation orifices 4. DIP Switches 5. Power input P1 LED 6. Power input P2 LED 7. 10/100BaseT(X) Port 8. TP port’s 10/100 Mbps 9.
- Page 4 Panel Layout of EDS-205A-M-SC/ST NOTE: The appearance of EDS-205A-S-SC is identical to EDS-205A-M-SC. 1. Grounding screw 2. Terminal block for power input P1/P2 3. Heat dissipation orifices 4. DIP Switches 5. Power input P1 LED 6. Power input P2 LED 7.
- Page 5 Panel Layout of EDS-208A-M-SC/ST NOTE: The appearance of EDS-208A-S-SC is identical to EDS-208A-M-SC. 1. Grounding screw 2. Terminal block for power input P1/P2 3. Heat dissipation orifices 4. DIP Switches 5. Power input P1 LED 6. Power input P2 LED 7.
- Page 6 Panel Layout of EDS-208A-MM-SC/ST NOTE: The appearance of EDS-208A-SS-SC is identical to EDS-208A-MM-SC. 1. Grounding screw 2. Terminal block for power input P1/P2 3. Heat dissipation orifices 4. DIP Switches 5. Power input P1 LED 6. Power input P2 LED 7.
-
Page 7: Mounting Dimensions
Mounting Dimensions EDS-205A EDS-208A Unit = mm (inch) - 7 -... -
Page 8: Din-Rail Mounting
DIN-Rail Mounting The aluminum DIN-rail attachment plate should already be fixed to the back panel of the EDS when you take it out of the box. If you need to reattach the DIN-rail attachment plate, make sure the stiff metal spring is situated towards the top, as shown in the figures below. -
Page 9: Atex Information
STEP 3: Once the screws are fixed on the wall, insert the four screw heads through the large parts of the keyhole-shaped apertures, and then slide the EDS-205A/208A downwards, as indicated. Tighten the four screws for added stability. ATEX Information 1. -
Page 10: Grounding The Etherdevice Switch
You should also pay attention to the following points: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. NOTE: Do not run signal or communications wiring and power wiring in the same wire conduit. -
Page 11: Communication Connections
Communication Connections The EDS-205A models have 4 or 5 10/100BaseT(X) Ethernet ports, and 1 or 0 (zero) 100 BaseFX multi/single-mode (SC/ST-type connector) fiber ports. The EDS-208A models have 6, 7 or 8 10/100BaseT(X) Ethernet ports, and 2, 1 or 0 (zero) 100 BaseFX multi/single-mode (SC/ST-type connector) fiber ports. -
Page 12: Redundant Power Inputs
100BaseFX Ethernet Port Connection The concept behind the SC/ST port and cable is quite straightforward. Suppose you are connecting devices I and II; contrary to electrical signals, optical signals do not require a circuit in order to transmit data. Consequently, one of the optical lines is used to transmit data from device I to device II, and the other optical line is used transmit data from device II to device I, for full-duplex transmission. -
Page 13: Dip Switch Settings
DIP Switch Settings EDS-205A/208A DIP Switches The default setting for each DIP Switch is OFF. The following table explains the effect of setting the DIP Switches to the ON positions. DIP Switch Setting Description ---- Serves no function (reserved for future use). Enables broadcast storm protection Disables broadcast storm protection ATTENTION... -
Page 14: Switching, Filtering, And Forwarding
Switching, Filtering, and Forwarding Each time a packet arrives at one of the switched ports, a decision is made to either filter or forward the packet. Packets with source and destination addresses belonging to the same port segment will be filtered, constraining those packets to one port, and relieving the rest of the network from the need to process them. - Page 15 LED Indicators P1, P2 (Power), 10/100M (TP port), and 100M (Fiber port) DIP Switch enable/disable broadcast storm protection Optical Fiber 100BaseFX Multi-mode Single-mode Wavelength 1300 nm 1310 nm Max. TX -10 dBm 0 dBm Min. TX -20 dBm -5 dBm RX Sensitivity -32 dBm -34 dBm...
- Page 16 EN 61000-4-4 (EFT), Level 3 EN 61000-4-5 (Surge), Level 3 EN 61000-4-6 (CS), Level 3 EN 61000-4-8 EN 61000-4-11 Shock IEC 60068-2-27 Freefall IEC 60068-2-32 Vibration IEC 60068-2-6 WARRANTY 5 years Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel:...
