Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045

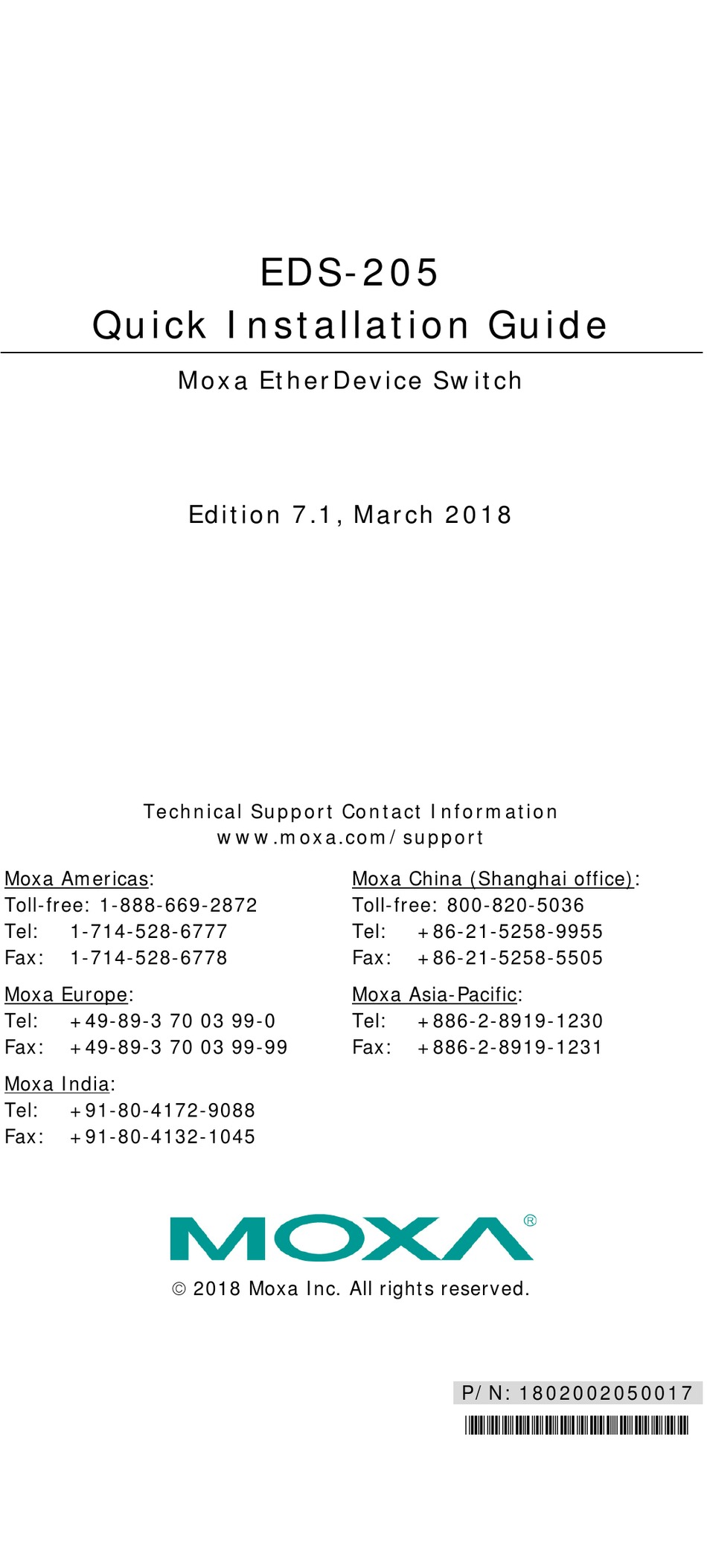

EDS-205
Moxa EtherDevice Switch
Edition 7.1, March 2018
Technical Support Contact Information
www.moxa.com/support
2018 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802002050017
*1802002050017*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies EtherDevice EDS-205 Series
Summary of Contents for Moxa Technologies EtherDevice EDS-205 Series
-
Page 1: Moxa Etherdevice Switch
EDS-205 Quick Installation Guide Moxa EtherDevice Switch Edition 7.1, March 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax:... -
Page 2: Package Checklist
Overview The Moxa, EDS-205 series EtherDevice™ switches are entry-level 5- port Ethernet switches that provide a cost-effective solution for your industrial Ethernet connection. The EDS-205 Series supports DC power input from 12 to 48 V. These switches can operate from -10 to 60 C, and the rugged hardware design makes the EDS-205 switches perfect for ensuring that your Ethernet equipment can be used for demanding industrial applications. -
Page 3: Panel Layout Of The Eds-205 Series
Panel Layout of the EDS-205 Series 1. Heat dissipation orifices 2. Terminal block for power input and grounding 3. Moxa Logo 4. Power input LED 5. 10/100BaseT(X) Port 6. TP port’s 100 Mbps LED 7. TP port’s 10 Mbps LED 8. -
Page 4: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) - 4 -... -
Page 5: Din-Rail Mounting
DIN-Rail Mounting The plastic DIN-rail attachment plate should already be fixed to the rear panel of the EDS when you take it out of the box. If you need to reattach the DIN-rail attachment plate, make sure the DIN-rail kit is situated towards the top, as shown in the figures below. -
Page 6: Wiring Requirements
Wiring Requirements ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa EtherDevice Switch. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. -
Page 7: Wiring The Power Inputs
Wiring the Power Inputs The two left-most contacts of the 3-contact terminal block connector on the EDS’s top panel are used for the DC input. Top and front views of one of the terminal block connectors are shown here. STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals. -
Page 8: Led Indicators
RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring LED Indicators The front panel of the Moxa EtherDevice Switch contains several LED indicators. The function of each LED is described in the table below. Color State Description... -
Page 9: Switching, Filtering, And Forwarding
Switching, Filtering, and Forwarding Each time a packet arrives at one of the switched ports, a decision is made to either filter or forward the packet. Packets with source and destination addresses belonging to the same port segment will be filtered, constraining those packets to one port, and relieving the rest of the network from the need to process them. -
Page 10: Environmental Limits
Power Input Voltage 12 to 48 VDC Input Current 0.12 A @ 24 V Power Consumption Connection Removable 3-contact terminal block Overload Current 1.1 A Protection Reverse Polarity Present Protection Mechanical Casing IP30 protection, plastic housing Dimensions 25 x 109 x 88 mm Weight 135 g Installation...
