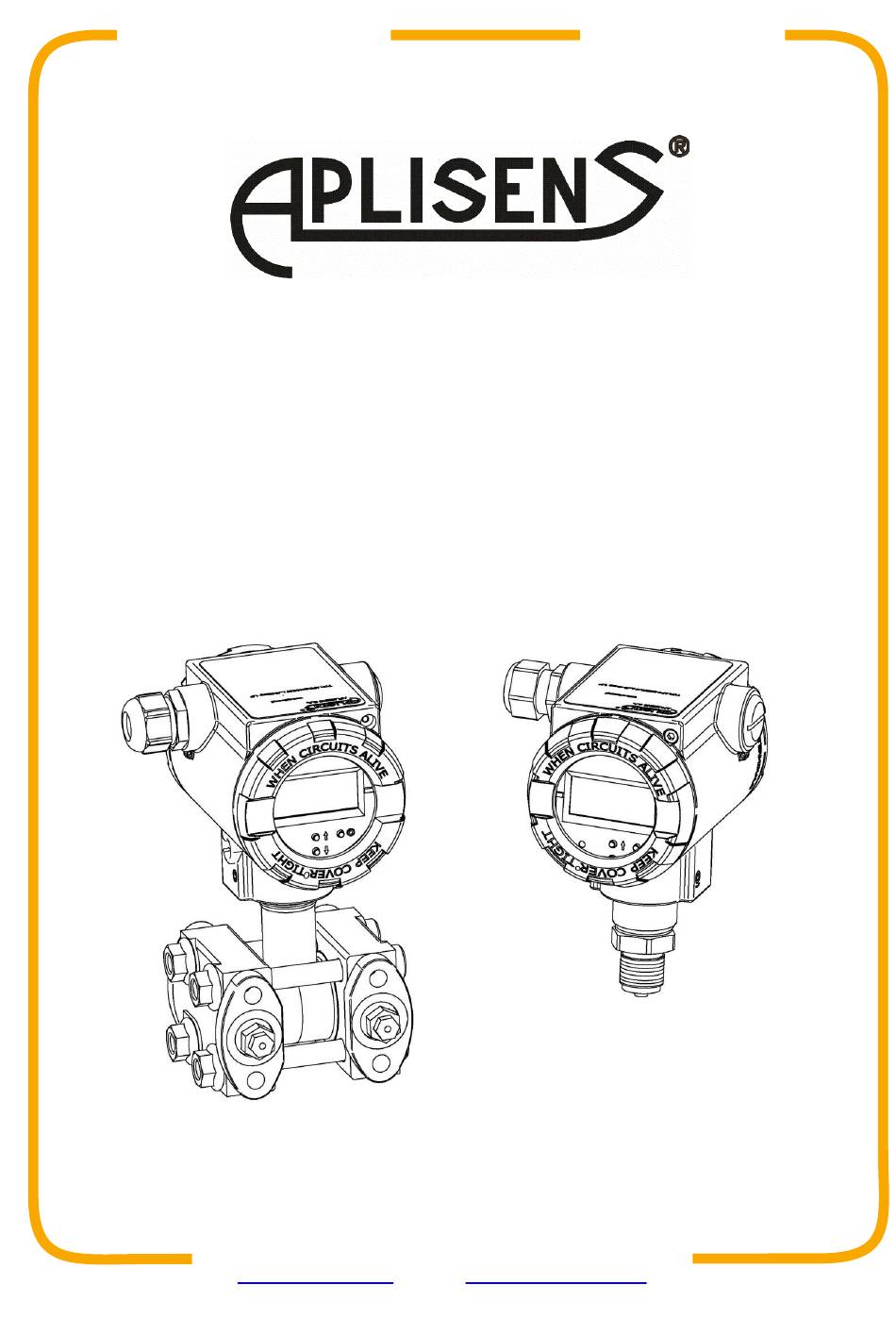

- Page 1 EN.IO.APC.APR.ALW.SFT Revision 02.B.001 APRIL 2023 USER’S MANUAL PRESSURE AND DIFFERENTIAL PRESSURE TRANSMITTERS APC-2000ALW Safety APR-2000ALW Safety APLISENS S.A., 03-192 Warsaw, Morelowa 7 St. tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
- Page 2 0000 0000 0006 0001 85 ID: 0002 0004 0002 0000 0000 0006 0001 82 https://www.aplisens.pl/ID/000100040002000000000006000185 https://www.aplisens.pl/ID/000200040002000000000006000182 APC-2000ALW Safety (UKCA) APR-2000ALW Safety (UKCA) ID: 0001 0004 0002 0000 0000 0008 0001 84 ID: 0002 0004 0002 0000 0000 0008 0001 81 https://www.aplisens.pl/ID/000100040002000000000008000184...
- Page 3 APC-2000ALW Safety (IS/XPC) APR-2000ALW Safety (IS) ID:0001 0004 0002 0000 0000 0003 0001 38 ID:0002 0004 0002 0000 0000 0001 0001 36 https://www.aplisens.pl/ID/000100040002000000000003000138/ https://www.aplisens.pl/ID/000200040002000000000001000136/ APR-2000ALW Safety (XPC) APR-2000ALW Safety (IS/XPC) ID:0002 0004 0002 0000 0000 0002 0001 84 ID:0002 0004 0002 0000 0000 0003 0001 35 https://www.aplisens.pl/ID/000200040002000000000002000184/...
- Page 4 − possible mechanical impacts, excessive shocks and vibration; − excessive temperature fluctuation; − water vapour condensation, dusting, icing. Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer's website: www.aplisens.com.
-
Page 5: Table Of Contents
EN.IO.APC.APR.ALW.SFT TABLE OF CONTENTS 1. INTRODUCTION ..................7 1.1. Purpose of the document ....................... 7 1.2. Trademarks ..........................7 1.3. Definitions and abbreviations ....................8 1.4. Transmitter set range ......................9 2. SAFETY ..................... 10 3. TRANSPORT AND STORAGE ..............10 3.1. - Page 6 EN.IO.APC.APR.ALW.SFT 9.5. Acceptance of local setpoints....................25 9.6. Structure of local setpoints MENU ..................26 9.7. Remote configuration of setpoints (HART) ................27 9.7.1. Compatible devices ...................... 27 9.7.2. Compatible configuration software ................27 9.7.3. Local HART communication jumper ................27 10.
-
Page 7: Introduction
EN.IO.APC.APR.ALW.SFT INTRODUCTION 1.1. Purpose of the document The subject of manual are smart pressure transmitters APC-2000ALW Safety and smart differential pressure transmitters APR-2000ALW Safety, hereinafter referred jointly APC(R)-2000ALW Safety or transmitters. The manual applies to the following versions: standard, PED, flameproof Exd (XP), intrinsically safe Exi (IS). -
Page 8: Definitions And Abbreviations
EN.IO.APC.APR.ALW.SFT 1.3. Definitions and abbreviations Table 1. Definitions and abbreviations Item Abbr. Meaning “Lower Range Value” – the value of the set range expressed in physical units corresponding to the current of 4,000 mA, i.e. 0% of the output setpoint. The set range cannot exceed the set range limits. -
Page 9: Transmitter Set Range
EN.IO.APC.APR.ALW.SFT 1.4. Transmitter set range The figure below shows the transmitter set range and limits related to allowable set range, digital pro- cessing range and saturation limits of A/D pressure measurement transducer. As standard, values of 4 mA / 20 mA currents are assigned to LRV/URV points. In order to obtain reverse characteristics, it is possible to reverse the assignment so that the LRV/URV points are assigned to 20 mA / 4 mA currents. -
Page 10: Safety
GUARANTEE General terms and conditions of guarantee are available on the manufacturer’s website: www.aplisens.com/ogolne_warunki_gwarancji. The guarantee shall be repealed if the device is used against its intended use, failure to comply with user’s manual or interference with the structure of the device. -
Page 11: Identification
EN.IO.APC.APR.ALW.SFT IDENTIFICATION 5.1. Manufacturer's address APLISENS S.A. 03-192 Warsaw Morelowa 7 St. Poland 5.2. Transmitter identification Depending on the version of the transmitter, the nameplates may differ in the amount of information and parameters. Table 2. Symbols occurring on the transmitter nameplate... -
Page 12: Installation
EN.IO.APC.APR.ALW.SFT INSTALLATION 6.1. General recommendations In order to avoid measurement errors caused by the accumulation of condensate (in gas installations) or gas bubbles (in liquid installations) in impulse lines, assembly solutions using constructions based on available engineering knowledge should be used. For a gas- eous medium, this may mean installing the transmitters above the pressure measuring point, and for liquids below this point. -
Page 13: Installation Instructions For Transmitters With Distance Separators
EN.IO.APC.APR.ALW.SFT 6.1.2. Installation instructions for transmitters with distance separators The protection of the separator diaphragm can only be removed shortly before installation. Hydrostatic pressure of the manometric liquid column in the transmitter-separator system may cause incorrect indication of the measured value. After installation, the transmitter must be pressure-reset. Do not clean or touch the separator diaphragms using hard or pointy objects. -
Page 14: Electrical Connection
EN.IO.APC.APR.ALW.SFT ELECTRICAL CONNECTION 7.1. Cable connection to transmitter internal terminals All connection and installation operations must be performed with disconnected supply voltage and other external voltages, if used. Failure to provide proper connection of the transmitter may result in danger. Risk of electric shock and/or ignition in potentially explosive atmospheres. -
Page 15: Connection Of Transmitter With The Option Of Using Local Hart Communication
EN.IO.APC.APR.ALW.SFT 7.1.2. Connection of transmitter with the option of using local HART communication The transmitter allows to use the local HART communication. To do this you can use a HART commu- nicator unit or modem connected to a computer or a smartphone. In order to establish the local communication, it is necessary to: −... - Page 16 Exi (IS) and flameproof Exd (XP) ver- sions of the transmitters. The converter may also be operated using Aplisens Mobile Configurator installed on smartphones with Android system and connected using wireless communication.
-
Page 17: Transmitter Power Supply
0,5 to 5 mm 7.2.4. Cabling specification Aplisens S.A. recommends using two-wire screened twisted pair cable. The outer diameter of the cable shell from 5 to 9 mm is recommended. 7.2.5. Resistance load in power supply line The power line resistance, power source resistance and other additional serial resistances increase the voltage drops between the power source and the transmitter terminals. -
Page 18: Equipotential Bonding
EN.IO.APC.APR.ALW.SFT 7.3. Equipotential bonding When using an intrinsically safe transmitter with an additional overvoltage protection, having the desig- nation “SA version” on the plate, the transmitter should be powered from a galvanically separated power source or, if this is not possible, equipotential bonding of the transmitter and the power supply device should be ensured by means of equipotential bonding conductors. -
Page 19: Start-Up
EN.IO.APC.APR.ALW.SFT START-UP As standard, the transmitter is adjusted to a set range equal to the base range, unless a specific set range is provided in the order. The base range and the basic unit of the transmitter can be read out from its nameplate (➔... -
Page 20: Configuration Of Operating Mode
EN.IO.APC.APR.ALW.SFT The transmitter diagnostics continually tests the environmental parameters: − temperature of the pressure measurement structure sensor; − temperature of the ADC transducer converting the electric signal from the pressure sensor to the digital value of measurement; − temperature of the CPU structure (transmitter's main microcontroller). If the transmitter operating temperature limits are exceeded, the diagnostics will trigger an alarm I_AL <... -
Page 21: Correction Of Impact Of Transmitter Mounting Position On Site - Pressure Reset
EN.IO.APC.APR.ALW.SFT Correction of impact of transmitter mounting position on site – pressure reset 8.3. Once the transmitter is mounted in a target location, it must be reset. This operation will eliminate the possible influence of the mounting position on the indication of pressure / differential pressure. In order to do so: −... -
Page 22: Level Measurements
8.7. Pressure and differential pressure measurements The APC-2000ALW Safety transmitter is intended for measuring the relative (overpressure and under- pressure) and absolute gas, vapour and liquid pressure. Examples of transmitter installation are shown ➔ Figure 2. Examples of pressure transmitter installation. -
Page 23: Local Lcd Display
EN.IO.APC.APR.ALW.SFT 9.1. Local LCD display The LCD has three primary information fields identified in the figure below as LCD1, LCD2, LCD3. Figure 12. Display information fields LCD1 field: [mA] – value (milliamperes) of process current in line 4...20 mA, proportional to the measured pressure. [%] –... - Page 24 EN.IO.APC.APR.ALW.SFT Abbreviations of temperature measurement point name: SENS °C temperature of pressure / differential pressure sensor measurement structure in degrees Celsius. CPU °C temperature of the main CPU structure in degrees Celsius. Abbreviations displayed during configuration via local MENU and their descriptions: <-BACK Return to one level above in local MENU.
-
Page 25: Local Buttons
EN.IO.APC.APR.ALW.SFT 1.0% Option of selecting root characteristics deadband point. Other deadband values are possible to be set via HART communication. DONE Message about the acceptance and implementation of the set-point change. Abbreviations of local configuration errors and description of abbreviations: Message displayed on LCD3. -
Page 26: Structure Of Local Setpoints Menu
EN.IO.APC.APR.ALW.SFT 9.6. Structure of local setpoints MENU Press and hold any of 3 buttons for 4 seconds. When navigating in the area of the active local MENU, holding the button required to trigger the action is minimum 1 second. Continuous pressing of the ↑ or ↓ button results in scrolling of the MENU positions every 1 second. -
Page 27: Remote Configuration Of Setpoints (Hart)
− communicators from other companies, including those using DDL and DTM libraries; − PC computers equipped with HART modem (e.g. HART/USB converter by Aplisens S.A.) with Windows 7 or Windows 10 operating system with installed Raport 2; − PC computers equipped with HART modem using software from other companies, accepting DDL and DTM libraries;... -
Page 28: Maintenance
EN.IO.APC.APR.ALW.SFT MAINTENANCE 10.1. Periodic inspections Periodic inspections shall be carried out in accordance with applicable standards. During the inspection, the condition of the pressure (absence of loosened elements and leaks) and electrical (check of con- nections reliability and condition of gaskets and glands) connectors, condition of separating diaphragms (tarnish, corrosion) and stability of fixing of the housing and mounting bracket (if used) shall be checked. -
Page 29: History Of Revisions
EN.IO.APC.APR.ALW.SFT HISTORY OF REVISIONS Revision Document revision Description of changes 01.A.001/2019.04 Initial document version. Prepared by DKD, KBF. 01.A.002/2019.05 QR codes have been changed. Prepared by DKD, KBF. 01.A.003/2020.03 Added information about PED execution. Prepared by DBFD. 02.A.004/2020.07 New document edition. Prepared by DBFD. Editorial changes, change of QR codes and ID number due to the 02.B.001/2023.04 update of explosion-proof certificates.
