EN.IX.APC.APR.ALW
Revision: 01.A.003
OCTOBER 2019
EXPLOSION-PROOF DEVICE USER MANUAL
SMART PRESSURE TRANSMITTERS
APC-2000ALW, APC-2000ALW SAFETY, APC-2000ALW/L

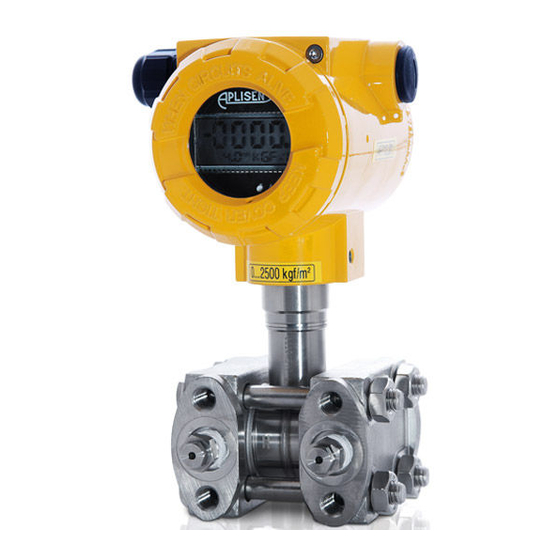

SMART PRESSURE DIFFERENTIAL TRANSMITTERS
APR-2000ALW, APR-2000ALW SAFETY, APR-2200ALW,
APR-2000GALW, APR-2000ALW/L, APR-2200ALW/L
SMART LEVEL PROBES
APR-2000YALW
APLISENS S.A., 03-192 Warszawa, ul. Morelowa 7
tel. +48 22 814 07 77; fax +48 22 814 07 78
www.aplisens.pl, e-mail:
aplisens@aplisens.pl
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aplisens APC-2000ALW
Summary of Contents for Aplisens APC-2000ALW
- Page 1 APC-2000ALW, APC-2000ALW SAFETY, APC-2000ALW/L SMART PRESSURE DIFFERENTIAL TRANSMITTERS APR-2000ALW, APR-2000ALW SAFETY, APR-2200ALW, APR-2000GALW, APR-2000ALW/L, APR-2200ALW/L SMART LEVEL PROBES APR-2000YALW APLISENS S.A., 03-192 Warszawa, ul. Morelowa 7 tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.pl, e-mail: aplisens@aplisens.pl...
- Page 2 Explosion-proof installations should be made with special care and in accordance with standards and regulations applicable to this type of installations. Changes can be made in the manufacturing before the paper version of user documentation is updated. Up-to-date user manuals are available on the manufacturer's website: www.aplisens.pl.
-
Page 3: Table Of Contents
EN.IX.APC.APR.ALW TABLE OF CONTENTS 1. INTRODUCTION ..................5 2. SAFETY ....................... 5 3. COMPLETE DELIVERY CHECKLIST ............5 4. IDENTIFICATION MARKS................6 5. TRANSMITTER DESIGN ................6 6. ELECTROSTATIC HAZARDS ..............7 7. SPECIAL CONDITIONS OF USE ..............7 8. - Page 4 EN.IX.APC.APR.ALW LIST OF DRAWINGS Figure 1. Sample transmitter nameplate with common Exi and Exd designation ....6 Figure 2. Transmitter installation in potentially explosive areas..........8 Figure 3. Principle of power supply from a linear source............12 Figure 4. Principle of power supply from a trapezoidal source..........12 Figure 5.
-
Page 5: Introduction
Product Certificate, which also constitutes a warranty card. b) Declaration of Conformity. c) Certificate copy (on request). d) EN.IX.APC.APR.ALW explosion-proof device user manual. e) EN.IO.APC.APR.ALW.2.SFT user manual or EN.IO.APC.APR.ALW.2 user manual or EN.IO.APC.APR.ALW.3 user manual. Items b), c), d), e) are available at www.aplisens.pl. Revision 01.A.003/2019.10... -
Page 6: Identification Marks
EN.IX.APC.APR.ALW IDENTIFICATION MARKS. Ex transmitters are delivered with a nameplate which contains data specified in section 6.2, EN.IO.APC.APR.ALW.2.SFT or EN.IO.APC.APR.ALW.2 or EN.IO.APC.APR.ALW.3 and also the following: a) Designation of explosion-proof design type, certificate number. b) Parameter values, e.g. Ui, Ii, Ci, Li for Exi transmitters. c) Year of manufacture. -
Page 7: Electrostatic Hazards
EN.IX.APC.APR.ALW ELECTROSTATIC HAZARDS The paint, plastic nameplate and diaphragm seals coated with PTFE form a non-conducting layer applied on a conducting base of enclosure or diaphragm seals. Transmitters with this design in a dust-explosion zone should be installed in a place where electrostatic charging is impossible, in particular by contact with electrically charged dust falling off or blown from neighboring devices. -
Page 8: Transmitter Protection Level (Epl) And Hazardous Areas
EN.IX.APC.APR.ALW TRANSMITTER PROTECTION LEVEL (EPL) AND HAZARDOUS AREAS Ga/Gb (Da/Db) EPL protection level means that the transmitter can be installed in Zone 1 (21) or 2 (22), and transmitter process connectors can connect to Zone 0 (20). Gb (Db) EPL protection level means that the transmitter and process connector can be installed in Zone 1 (21) or 2 (22). -
Page 9: Intrinsically-Safe Exi Transmitters According With Certificates Kdb 19 Atex 0011X And Iecex Kdb 19.0003X
KDB 19 ATEX 0011X and IECEx KDB 19.0003X The following ATEX and IECEx markings apply only to intrinsically safe transmitters marked with the type and model ID: APC-2000ALW model ID 0005 0004 ..., APR-2000GALW model ID 0008 0004 ..., APC-2000ALW Safety 0001 0004 ..., APR-2000YALW model ID 0009 0004 ...,... -
Page 10: Load Resistance
FTZU 08 ATEX 0020X and IECEx FTZU 14.0026X The following ATEX and IECEx markings apply only to intrinsically safe transmitters marked with the type and model ID: APC-2000ALW model ID 0005 0007 ..., APC-2000ALW/L model ID 0010 0007 ..., APR-2000ALW model ID 0006 0007 ..., APR-2200ALW/L model ID 0012 0007 ...,... -
Page 11: Minimum Supply Voltage
EN.IX.APC.APR.ALW As standard, the transmitters are manufactured for explosive gas atmospheres. A customer can also order a transmitter for explosive dust atmospheres and for mining applications. 10.3. Minimum supply voltage Table 2. Minimum supply voltage of and Exi transmitter according with certificates FTZU 08 ATEX 0020X and IECEx KDB 14.0026X Minimum supply voltage 10.5 V... -
Page 12: Linear Power Supply Example
EN.IX.APC.APR.ALW 11.1. Linear power supply example For example, linear power supply is provided by a typical barrier with the following parameters Uo = 28V; Io = 0.1A; Po = 0.7W; Rw = 280. Figure 3. Principle of power supply from a linear source. 11.2. -
Page 13: Connecting Exi Transmitters And Probes
EN.IX.APC.APR.ALW An example of power supply in practice: A stabilized power adapter with Uo = 24 V, “ib” protection level and current limited to Io = 25 mA. CONNECTING Exi TRANSMITTERS AND PROBES Transmitter and equipment in the transmitter measurement loop must be connected in compliance with intrinsic safety and explosion proofing standards and conditions for application in risk zones. -
Page 14: Flameproof Exd Transmitters According With Certificates Kdb 19 Atex 0011X And Iecex Kdb 19.0003X
KDB 19 ATEX 0011X and IECEx KDB 19.0003X The following ATEX and IECEx markings apply only to flameproof safe transmitters marked with the type and model ID: APC-2000ALW model ID 0005 0008 ..., APR-2000GALW model ID 0008 0008 ..., APC-2000ALW Safety 0001 0004 ..., APR-2000YALW model ID 0009 0008 ...,... -
Page 15: Permissible Parameters Of Exd Transmitters
EN.IX.APC.APR.ALW ATEX: II 1/2G Ex ia/db IIC T6/T5 Ga/Gb II 1/2D Ex ia/tb IIIC T105ºC Da/Db I M2 Ex db ia I Mb (for the version with 1.4401 (316) steel enclosure) KDB 19 ATEX 0011X II 2G Ex ia/db IIC T6/T5 Gb II 2D Ex ia/tb IIIC T105ºC Db I M2 Ex db ia I Mb (for the version with 1.4401 (316) steel enclosure) -
Page 16: 14.2. Power Supply, Connection And Operation Of Exd Transmitters
250 VAC occur. It is responsibility of the user to provide power supply compliant with the requirements above. Table 5. Maximum supply voltage for Exd transmitters Maximum supply voltage APC-2000ALW, APR-2000ALW, APC-2000ALW Safety, APR-2200ALW, APR-2000GALW, APR-2000ALW Safety... - Page 17 Table 6. List of equivalent cable entries. As a blinding plug, an Aplisens plug supplied with the transmitter or a certified blinding plug compliant with the list of equivalent blinding plugs in Table 6 can be used.
-
Page 18: Table 6. List Of Equivalent Cable Entries
EN.IX.APC.APR.ALW Figure 7. Installation of cable entries and blinding plugs Table 6. List of equivalent cable entries Cable entry type Manufacturer Thread Designation Certificate no. Hawke M20x1.5 Exd IIC Gb 501/423 Baseefa 06ATEX0056X (1/2” NPT) International Extb IIIC Db Hawke M20x1.5 Exd IIC Gb 501/421... -
Page 19: Table 7. List Of Equivalent Blinding Plugs
EN.IX.APC.APR.ALW Table 7. List of equivalent blinding plugs Plug type Manufacturer Thread Designation Certificate no. Exd IIC Gb Hawke M20x1.5 Extb IIIC Da Baseefa 10ATEX0262X (1/2” NPT) International Exd I Mb Exd IIC Gb Hawke M20x1.5 Extb IIIC Da Baseefa 10ATEX0262X (1/2”... -
Page 20: Table 8. List Of Flameproof Joints In A Flameproof Enclosure
EN.IX.APC.APR.ALW Figure 8. Flameproof joints of enclosure. Table 8. List of flameproof joints in a flameproof enclosure Length of joint Diameter Comments (min. actual) Quantity (min. values acc. to [mm] of joint EN 60079-1) [mm] [mm] [mm] ᴓ15 +0,027 13.2 0.079 length of joint min.12,5 M72x1.5... -
Page 21: Additional Information
EN.IX.APC.APR.ALW Due to possible damage, the transmitter should be protected from heating above 80ºC also when explosion hazard does not occur. ADDITIONAL INFORMATION 15.1. Additional information The manufacturer reserves the right to introduce structural and technological changes to the device, which does not deteriorate its performance. 15.2.
