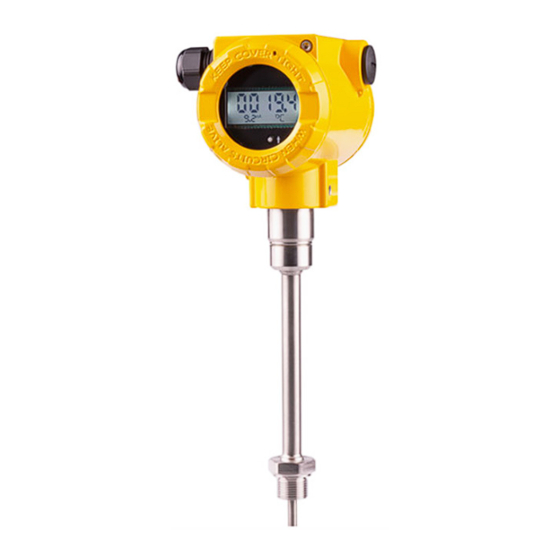

Temperature transmitter
Table of Contents

Advertisement

Quick Links

EN.IO.APT.ALW.MID
Revision 01.A.001
JANUARY 2022
USER'S MANUAL
TEMPERATURE TRANSMITTER
APT-2000ALW
Version in accordance with EN 12405-1:2018 Standard (MID)
APLISENS S.A., 03-192 Warsaw, Morelowa 7 St,
tel. +48 22 814 07 77; fax +48 22 814 07 78
www.aplisens.com, e-mail:
export@aplisens.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APT-2000ALW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aplisens APT-2000ALW

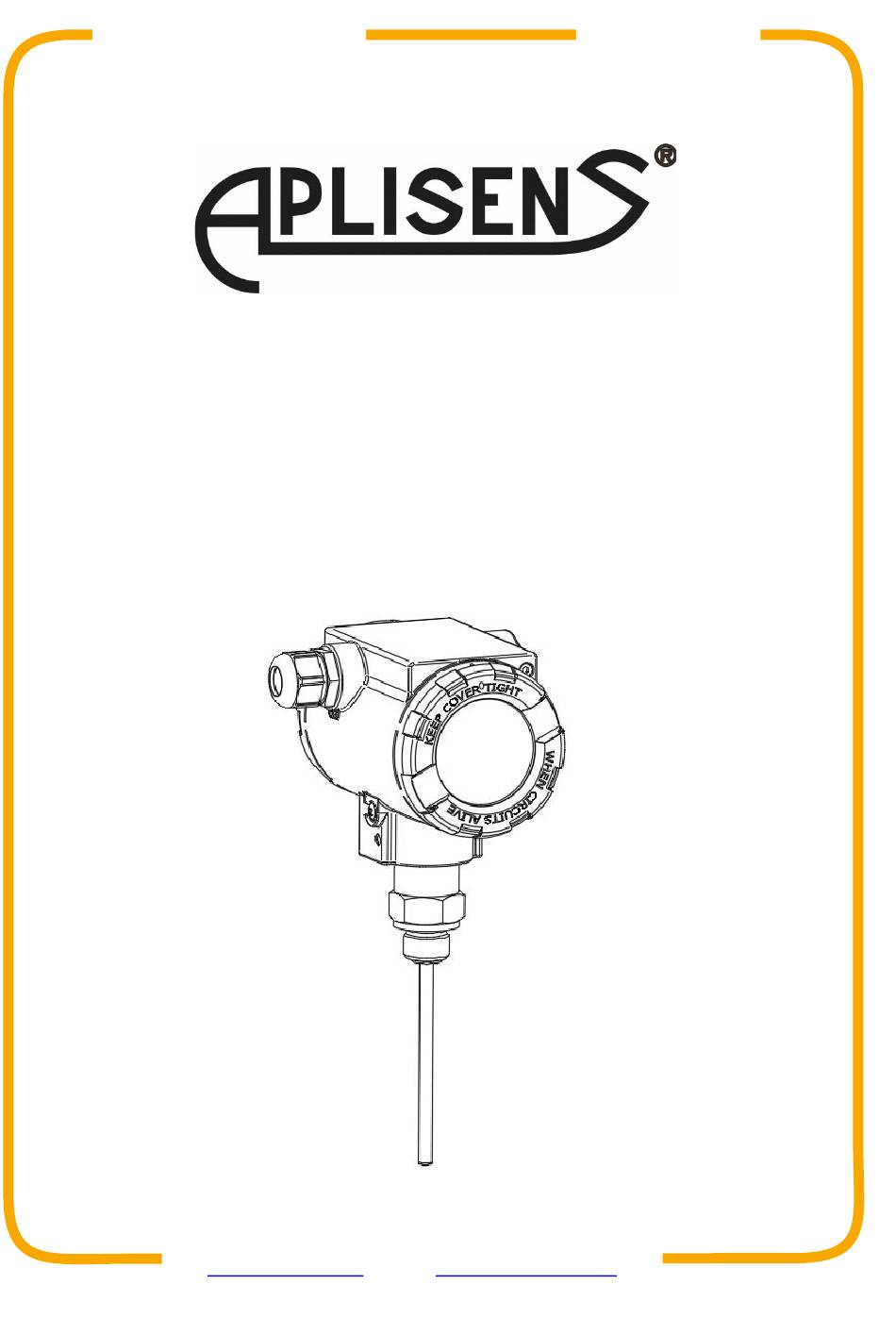

  • Page 1 EN.IO.APT.ALW.MID Revision 01.A.001 JANUARY 2022 USER’S MANUAL TEMPERATURE TRANSMITTER APT-2000ALW Version in accordance with EN 12405-1:2018 Standard (MID) APLISENS S.A., 03-192 Warsaw, Morelowa 7 St, tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
  • Page 2 − possible mechanical impacts, excessive shocks and vibration; − excessive temperature fluctuation; − water vapour condensation, dusting, icing. Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer's website: www.aplisens.com.
  • Page 3: Table Of Contents

    EN.IO.APT.ALW.MID TABLE OF CONTENTS 1. INTRODUCTION ..................5 1.1. Purpose of the document ....................... 5 1.2. Trademarks ........................... 5 1.3. Definitions and abbreviations ....................5 1.4. Transmitter set range ......................6 2. SAFETY ...................... 6 3. TRANSPORT AND STORAGE ..............7 3.1.
  • Page 4 EN.IO.APT.ALW.MID 10.6. Determination of the temperature class T* of the transmitter for gas ........22 10.7. List of cable glands and plug replacements ................23 10.8. Specific conditions of use ..................... 23 10.9. Transmitters with Exi protection.................... 24 10.10. Transmitter explosion-proof marking ..................24 10.11.
  • Page 5: Introduction

    1.1. Purpose of the document The subject of manual are the installation and exploitation data of the APT-2000ALW MID smart temperature transmitters with direct resistive sensor Pt100, designed to work in user’s thermowell. Transmitters APT-2000ALW MID meet the requirements of the EN12405-1:2018 Standard, harmonized to Directive 2014/32/EU (MID) and are used for type 2 of gas conversion device.
  • Page 6: Transmitter Set Range

    EN.IO.APT.ALW.MID 1.4. Transmitter set range The figure below shows the transmitter set range and limits related to allowable set range, digital processing range and saturation limits of A/D transducer of temperature measurement. As standard, values of 4 mA/20 mA currents are assigned to LRV/URV points. In order to obtain reverse characteristics, it is possible to reverse the assignment so that the LRV/URV points are assigned to 20 mA/4 mA currents.
  • Page 7: Transport And Storage

    GUARANTEE General terms and conditions of guarantee are available on the manufacturer's website: www.aplisens.com/ogolne_warunki_gwarancji. The guarantee shall be repealed if the device is used against its intended use, or failure to comply with user’s manual or interference with the structure of the device.
  • Page 8: Identification

    6.1. General recommendations Temperature transmitter APT-2000ALW can be mounted in any position but always in thermowell. The housing of the transmitter should be protected against hot air streams by appropriate location of the transmitter or by installing thermal screens so that the transmitter does not heat up to a temperature higher than the permissible one.
  • Page 9: Electrical Connection

    EN.IO.APT.ALW.MID ELECTRICAL CONNECTION 7.1. Cable connection to transmitter terminals All connection and installation operations shall be performed with disconnected supply voltage and other external voltages, if used. Failure to provide proper connection of the transmitter may result in danger. Risk of electric shock and/or ignition in potentially explosive atmospheres. 7.1.1.
  • Page 10 EN.IO.APT.ALW.MID In order to establish the local communication, it is necessary to: − remove HART communication jumper (item 2); − connect the communicator or modem to electrical terminals (item 5). Opening of the HART jumper results in applying resistance of 240 Ω in series in line 4...20 mA.
  • Page 11: Transmitter Power Supply

    0,5 to 5 mm 7.2.4. Cabling specification Aplisens S.A. recommends using two-wire screened twisted pair cable. The outer diameter of the cable shell from 5 to 9 mm is recommended. Exemplary cable types are presented in the table below.
  • Page 12: Resistance Load In Power Supply Line

    EN.IO.APT.ALW.MID 7.2.5. Resistance load in power supply line The power line resistance, power source resistance and other additional serial resistances increase the voltage drops between the power source and the transmitter terminals. The maximum current of Exd or Exi transmitters under normal operation conditions is defined as I_max = 20,500 mA, in the high alarm state, the I_max current rises to at least 21,5 mA.
  • Page 13: Operation

    EN.IO.APT.ALW.MID OPERATION The IP 66 degree of the transmitter housing protection for applications with gaseous fuels from 1 and 2 families in accordance with EN 437 Standard is ensured by the housing design as well as cable entries and plugs with HNBR or NBR seals. When you intend to use own cable inlets and plugs, you should use components dedicated to Ex zones, guaranteeing compliance with the requirements regarding: ambient temperatures, resistance to gaseous fuels, families 1 and 2 and IP degree.
  • Page 14: Local Buttons

    EN.IO.APT.ALW.MID LCD1 field: [mA] – value (milliamperes) of process current in line 4...20 mA, proportional to the measured temperature. [%] – value (percentage) of the setpoint U(t) of current controller in current loop 4...20 mA. This value is the ratio of the process current Ip(t) to the current range width according to the following formula: ����...
  • Page 15: Structure Of Local Setpoints Menu

    EN.IO.APT.ALW.MID 8.6. Structure of local setpoints MENU When navigating in the area of the active local MENU, holding the button required to trigger the action is minimum 1 second. Continuous pressing of the ↑ or ↓ button results in scrolling of the MENU positions every 1 second.
  • Page 16: Remote Configuration Of Setpoints (Hart 5)

    − communicators from other companies, including those using DDL and DTM libraries; − PC computers equipped with HART modem (e.g. HART/USB converter by Aplisens S.A.) with Windows 7 or Windows 10 operating system with installed Raport 2; − PC computers equipped with HART modem using software from other companies, accepting DDL and DTM libraries;...
  • Page 17: Compatible Configuration Software

    EN.IO.APT.ALW.MID 8.7.2. Compatible configuration software − Raport 2 Aplisens under control of Windows 7 or Windows 10; − Aplisens Mobile Configurator under control of the Android system; − softwares from other companies accepting DDL and DTM libraries. 8.7.3. Local HART communication jumper The transmitter allows to use the local HART communication.
  • Page 18: Sealing Of The Transmitters

    EN.IO.APT.ALW.MID Once the transmitter parameters have been entered and it has been reset at the workstation, it is required to: − Secure the device against the possibility of making changes in the local setpoint change MENU. − Set your own password different from default password of “00000000”. The new password may consist of any combination of 8 hexadecimal characters 0...9, A…F.
  • Page 19: Temperature Measurements

    EN.IO.APT.ALW.MID 9.4. Temperature measurements The transmitter version in accordance with the EN 12405-1: 2018 standard is designed to measure temperatures of gases, vapors and liquids. The metrological parameters of the transmitter are presented below. -20 … 60 °C * Measurement ranges ·...
  • Page 20 EN.IO.APT.ALW.MID Transmitters environmental parameters Products for this application meet the following requirements. Criteria by EN 12405-1:2018 Electromagnetic Compatibility, Short drops in electrical supply immunity EN 61000-4-29 Level 1 Electrostatic Discharge (ESD): EN 61000-4-2 Climatic Immunity Contact ±8 kV The transmitters can be installed in Air ±15 kV different climatic conditions (see p.7) in environments of varying humidity,...
  • Page 21: Explosionproof Parameters

    10.5. Measurement of operating temperature of transmitter After installing the APT-2000ALW transmitters for the maximum expected medium temperature and the maximum expected ambient temperature, measure out Tp (temperature of the hottest place on the surface of transmitter) and determine the transmitter temperature class according to p.
  • Page 22: Determination Of The Temperature Class T* Of The Transmitter For Gas

    EN.IO.APT.ALW.MID Figure 10. Mounting the transmitter in zones 10.6. Determination of the temperature class T* of the transmitter for gas Determine the transmitter temperature class for gas in relation to temperature Tp due to formula: T*  Tp + 0,1Tp + 5 K for class T3...T6 T* ...
  • Page 23: List Of Cable Glands And Plug Replacements

    EN.IO.APT.ALW.MID 10.7. List of cable glands and plug replacements As standard, the transmitters in Exd version are delivered without a cable gland, with blanking plugs approved in certification process. Used cable glands and blanking plugs must comply with the transmitter documentation approved by the validation process.
  • Page 24: Transmitters With Exi Protection

    EN.IO.APT.ALW.MID controlled medium) and the method of installation on site. Therefore, to determine the temperature Tp (hottest place on the surface of the transmitter housing, practically cover of the sensor) that is in contact with explosive atmosphere in conditions of installation in site and proceed in accordance with p. 10.5. Figure 11.
  • Page 25: Ui, Ii, Pi Supply Parameters And Temperature Classes

    EN.IO.APT.ALW.MID 10.11. Ui, Ii, Pi supply parameters and temperature classes The transmitters should be powered via the associated power feeding and measurement devices provided the relevant intrinsic-safe certificates. The parameters of their outputs to the danger zone should not exceed the limit of power supply parameters for the below specified transmitters. Temperature classes T4, T5, T6 depends on the input power and maximum ambient temperature.
  • Page 26: Maintenance

    EN.IO.APT.ALW.MID MAINTENANCE 11.1. Periodic inspections Periodic inspections shall be carried out in accordance with applicable standards. During the inspection, the condition of the process (absence of loosened elements and leaks) and electrical (check of connections reliability and condition of gaskets and glands) connectors and stability of fixing of the housing and mounting bracket (if used) shall be checked.
