Aplisens APCE-2000G User Manual

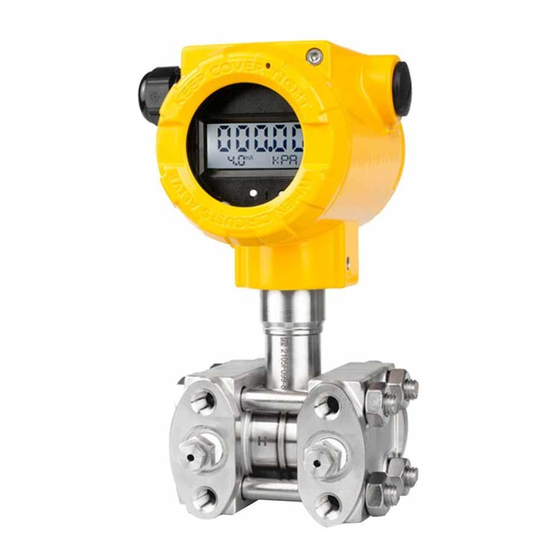

Smart pressure transmitter, smart differential pressure transmitter
Hide thumbs Also See for APCE-2000G:
Table of Contents

Advertisement

Quick Links

Download this manual
DTR.APCE.APRE.02
(ENG)
APLISENS
MANUFACTURE OF PRESSURE TRANSMITTERS
AND CONTROL INSTRUMENTS
USER'S MANUAL
SMART PRESSURE TRANSMITTER
type: APCE-2000, APCE-2000G
SMART DIFFERENTIAL PRESSURE TRANSMITTER
type:
APRE-2000, APRE-2000G
Edition D5
WARSAW MARCH 2020
APLISENS S.A. 03-192 Warszawa, ul. Morelowa 7
tel. +48 22 814 07 77; fax +48 22 814 07 78
www.aplisens.pl, e-mail: aplisens@aplisens.pl
