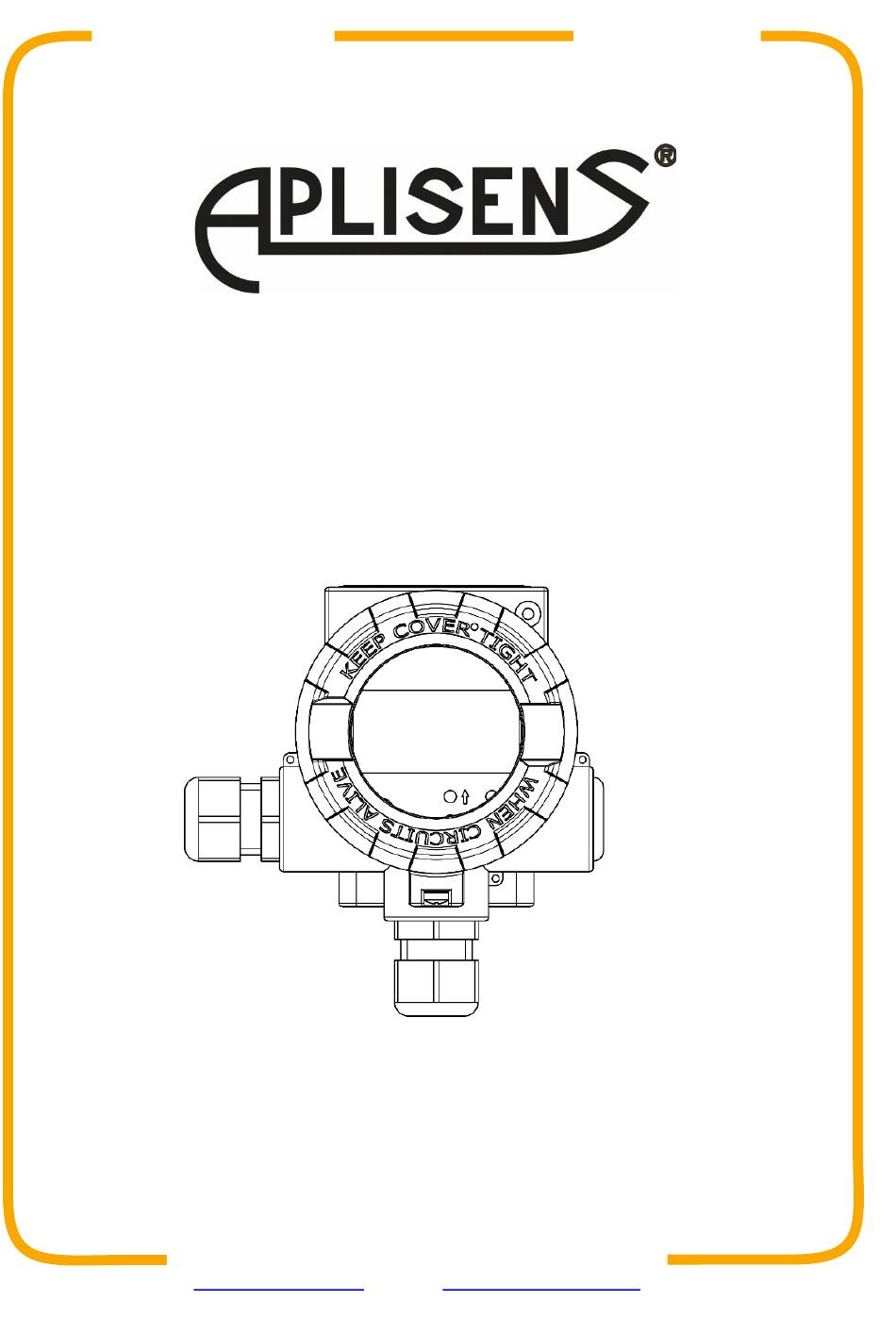

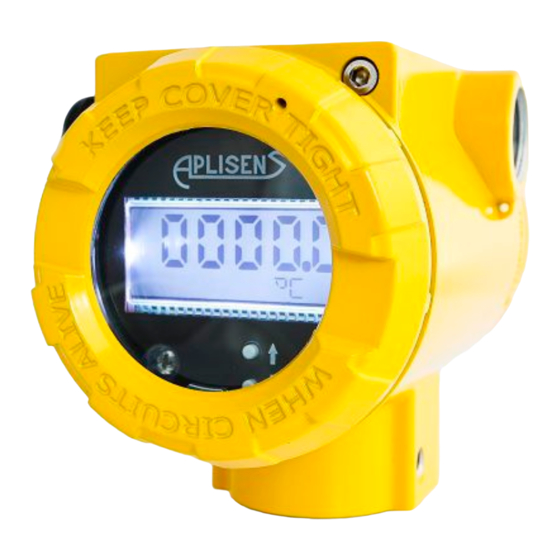

- Page 1 Revision 01.A.001 EN.IO.LI.24.ALW.SFT APRIL 2021 USER’S MANUAL SMART TEMPERATURE TRANSMITTER LI-24ALW Safety APLISENS S.A., 03-192 Warsaw, Morelowa 7 St, tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
- Page 2 LI-24ALW Safety ID:0027 0001 0001 0001 0000 0001 0001 87 https://www.aplisens.pl/ID/002700010001000100000001000187 LI-24ALW Safety (Exi) ID:0027 0001 0001 0001 0000 0002 0001 38 https://www.aplisens.pl/ID/002700010001000100000002000138 LI-24ALW Safety (Exd) ID:0027 0001 0001 0001 0000 0003 0001 86...
- Page 3 - possible mechanical impacts, excessive shocks and vibration; - excessive temperature fluctuation; water vapour condensation, dusting, icing. Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer's website: www.aplisens.com...
-
Page 4: Table Of Contents
EN.IO.LI.24.ALW.SFT TABLE OF CONTENTS 1. INTRODUCTION ..................6 1.1. Purpose of the document .................... 6 1.2. Registered trademarks ....................6 1.3. Definitions and abbreviations ..................7 1.4. Transmitter set range ....................8 2. SAFETY ....................... 9 3. TRANSPORT AND STORAGE ..............9 3.1. - Page 5 LIST OF FIGURES Figure 1. Set range and measurement limits................8 Figure 2. Marking of the LI-24ALW Safety terminals............. 11 Figure 3. Methods of connecting sensors, potentiometers and voltage sources....12 Figure 4. Electrical connection 4…20 mA of HART to transmitters in standard version..13 Figure 5.
-
Page 6: Introduction
INTRODUCTION 1.1. Purpose of the document The subject of manual are rail-mounted smart temperature transmitters LI-24ALW Safety. The manual applies to the following versions: standard, intrinsically safe Exi and flameproof Exd. The manual contains data, tips and general recommendations for safe installation and operation of the transmitters, as well as troubleshooting in case of possible failure. -
Page 7: Definitions And Abbreviations
EN.IO.LI.24.ALW.SFT 1.3. Definitions and abbreviations Table 1. Definitions and abbreviations. Item Abbr. Meaning “Lower Range Value” – the value of the set range expressed in the units of temperature, re- sistance or voltage corresponding to the current of 4,000 mA, i.e. 0% of the output setpoint. The set range must not exceed limits which depend on the selected measurement type. -
Page 8: Transmitter Set Range
EN.IO.LI.24.ALW.SFT 1.4. Transmitter set range The figure below shows the transmitter LRV/URV set range, limits related to the LRL/URL permissible set range, LPL/UPL digital processing range of the A/D measuring transmitter. As standard, current values of 4 mA/20 mA are assigned to LRV/URV points. In order to obtain reverse characteristics, it is possible to reverse the assignment so that the LRV/URV points are assigned to 20 mA/4 mA currents. -
Page 9: Safety
GUARANTEE General terms and conditions of guarantee are available on the manufacturer’s website: www.aplisens.com/ogolne_warunki_gwarancji The guarantee shall be repealed if the device is used against its intended use, failure to comply with user’s manual or interference with the structure of the device. -
Page 10: Identification
EN.IO.LI.24.ALW.SFT IDENTIFICATION 5.1. Manufacturer's address APLISENS S.A. 03-192 Warsaw Morelowa 7 St Poland 5.2. Transmitter identification Depending on the version of the transmitter, the nameplates may differ in the amount of information and parameters. Table 2. Symbols occurring on the transmitter nameplate. -
Page 11: Installation
INSTALLATION 6.1. General recommendations Temperature transmitter LI-24ALW Safety can be mounted in any position. The housing of the transmitter should be protected against hot air streams by appropriate location of the transducer or by installing thermal screens so that the transmitter does not heat up to a temper- ature higher than the permissible one. -
Page 12: Options For Connecting Sensors, Potentiometers And Voltage Sources To The Transmitter
EN.IO.LI.24.ALW.SFT 7.1.2. Options for connecting sensors, potentiometers and voltage sources to the trans- mitter Figure 3. Methods of connecting sensors, potentiometers and voltage sources. Revision 01.A.001/2021.04... -
Page 13: Connection Of Transmitters With The Option Of Using Hart Communication
EN.IO.LI.24.ALW.SFT 7.2. Connection of transmitters with the option of using HART communication The method of connecting a modem to transmitter for HART communication is shown in the figures below. In order to communicate using connected HART modem to the transmitter ‘’+’’ and ‘’-‘’ terminals, make sure that the R resistance viewed from the side of transmitter Lmax... -
Page 14: Transmitter Power Supply
It is mandatory to read EN.IX.LI.24.ALW Explosion-proof Device User Manual, contain- ing important information related to the installation of transmitters in intrinsically safe version. The converter may also be operated using Aplisens Mobile Configurator installed on smartphones with Android system and connected using wireless communication. ®... -
Page 15: Specifications Of Electrical Switching Terminals
EN.IO.LI.24.ALW.SFT 7.3.2. Specifications of electrical switching terminals The internal electrical connection terminals accept wires with a cross section of 0.5 to 1.75 mm Internal and external electrical terminal of the body ground accepts wires with a cross-section from 0.5 to 5 mm Possible cables to be used: unshielded when using the analogue signal only;... -
Page 16: Start-Up
HART communication. 8.1. Alarm configuration The LI-24ALW Safety transmitter features an advanced internal diagnostics resulting from the requirements of PN-EN 61508 standard. The internal diagnostics of the transmitter monitors the oper- ation of its electronic circuits, process parameters and environmental parameters, thus ensuring an increased level of functional safety. -
Page 17: Configuration Of The Operating Mode
EN.IO.LI.24.ALW.SFT The transmitter diagnostics continually tests the process parameters of temperature if the measured process variable value increases above the upper value of the base range relative to URL, when UPL is reached, the diagnostics will trigger alarm I_AL<3,600 mA. Temperature return below UPL point will result in deactivation of the alarm and restoration of the transmitter to its normal operation;... -
Page 18: Metrological Parameters, Types Of Sensors, Measuring Ranges And Errors
EN.IO.LI.24.ALW.SFT end point of the set URV range in the basic unit; damping time constant; analogue output processing characteristic mode; transmitter tag (TAG); setting of the password for the settings change lock; setting of the write lock after performing the configuration actions. 8.3. -
Page 19: Table 5. Metrological Parameters Of Thermocouples
EN.IO.LI.24.ALW.SFT Table 5. Metrological parameters of thermocouples. Thermocouples Input – Thermocouples >10 MΩ Input impedance 500 Ω (wires + thermocouple) Maximum wires resistance Cold junctions compensation internal sensor, external sensor Pt100, temperature constant of the cold junctions Temperature Processing er- processing er- Sensor type Standard... -
Page 20: Table 6. Types Of Measurements, Linearization And Mathematical Operations
EN.IO.LI.24.ALW.SFT Table 6. Types of measurements, linearization and mathematical operations. Voltage measurements, TC type sensors. Voltage measurement range 0...100 mV or 0...1000 mV Linearization type/base range Sensor type and CJC configurations Linear/0...100 mV or 0...1000 mV 1 x TC (voltage measurement); 2 x TC (voltage measurements);... -
Page 21: Operation
4…20 [mA] current loop by the LI-24ALW Safety transmitter. Features of the LI-24ALW Safety display: − serial operation in the loop of the transmitter output signal 4…20 [mA]; − digital signal processing (filtering, readout rounding);... -
Page 22: Figure 9. Structure Of The Local Setpoints Menu
EN.IO.LI.24.ALW.SFT Figure 9. Structure of the local setpoints MENU. Local Menu Description EXIT Return from local Menu to display the process variable. Set up of units. PRESS Switching to the selection of pressure units. TEMP Switching to the selection of temperature units. MISC Switching to the selection of different units. -
Page 23: Local Menu, Error Messages
Otherwise, the indication on the display may not be correct. The LI-24ALW Safety display is factory set to the unit and set range of the transmitter in accordance with the customer's order. In the absence of these parameters in the order specification, the display is factory set to indicate the value of the current measured in the current loop in milliamperes. -
Page 24: Operating Temperature
The following devices may be used to communicate with the transmitter: converter Aplisens HART/USB Converter or converter HART/RS232; PC computers equipped with HART modem (e.g. HART/USB converter by Aplisens S.A.) with Windows7 or Windows10 operating system with installed Raport 2;... -
Page 25: Maintenance
EN.IO.LI.24.ALW.SFT 10. MAINTENANCE 10.1. Periodic inspections Periodic inspections shall be carried out in accordance with applicable standards. During the inspection, check the condition of electrical terminal connections (reliability of the connections) and the stability of transmitter mounting. 10.2. Non-periodic inspections If the transmitter at the installation site has been exposed to mechanical damage, overvoltage or incorrect operation of the transmitter is detected, the device shall be inspected.
