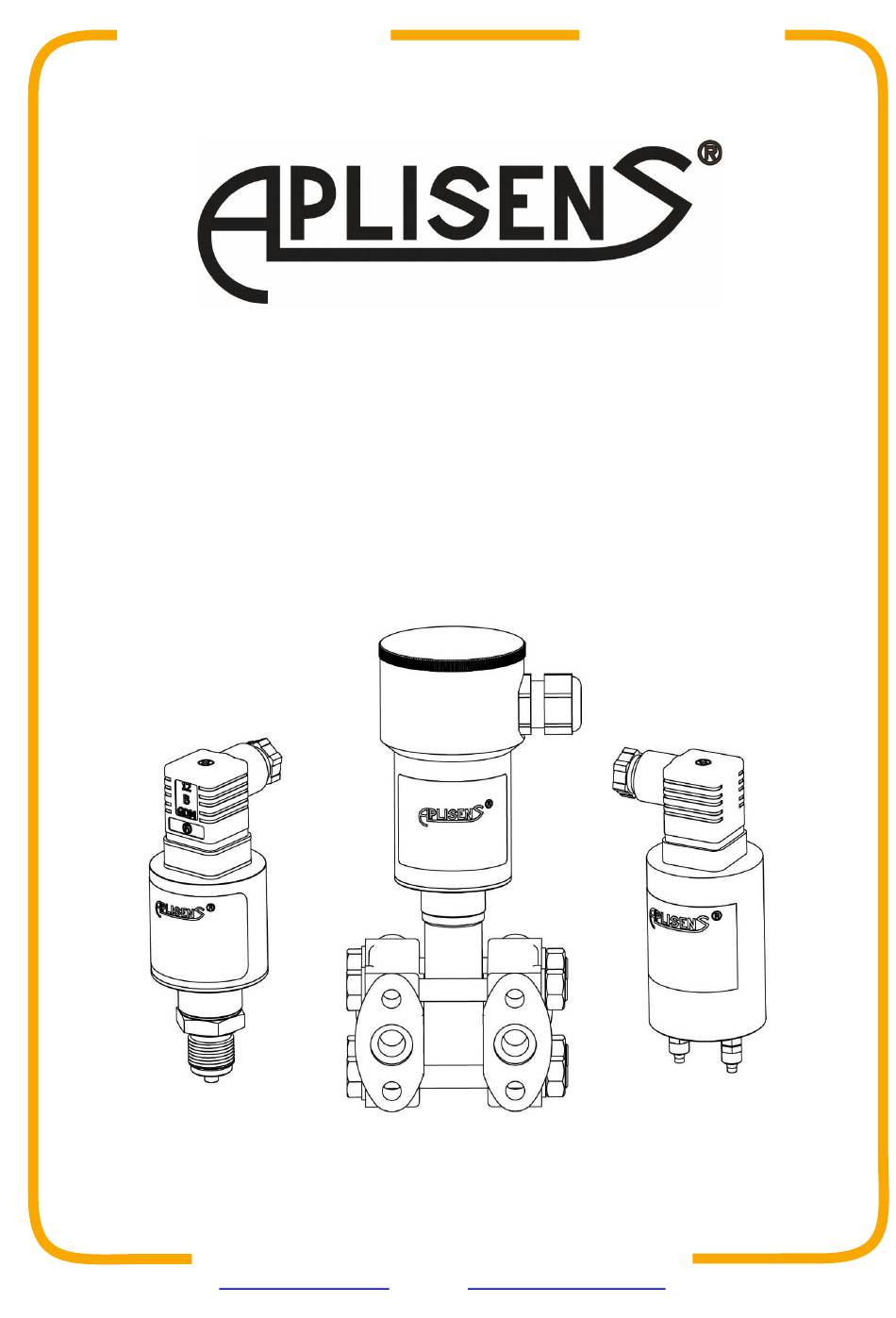

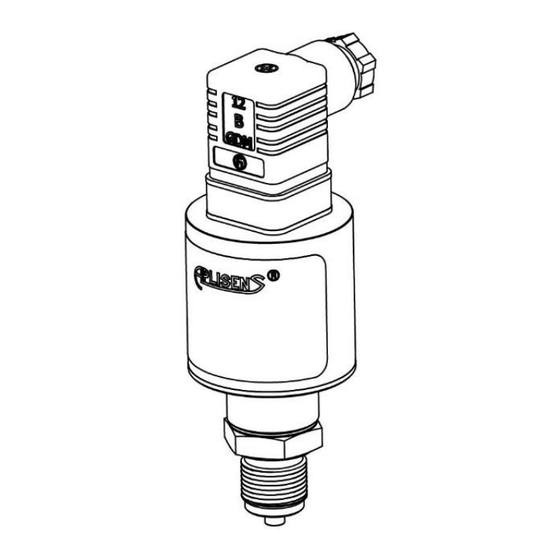

- Page 1 EN.IO.APCE.APRE.2000 Revision 01.A.001 SEPTEMBER 2023 USER’S MANUAL PRESSURE TRANSMITTERS APCE-2000 DIFFERENTIAL PRESSURE TRANSMITTERS APRE-2000, APRE-2000G APLISENS S.A., 03-192 Warsaw, Morelowa 7 St. tel. +48 22 814 07 77; fax +48 22 814 07 78 www.aplisens.com, e-mail: export@aplisens.com...
- Page 2 APCE-2000 APCE-2000 (Exi) ID:0059 0001 0001 0000 0000 0000 0001 32 ID:0059 0002 0001 0000 0000 0001 0001 49 https://www.aplisens.pl/ID/005900010001000000000000000132 https://www.aplisens.pl/ID/005900020001000000000001000149...
- Page 3 − possible mechanical impacts, excessive shocks and vibration; − excessive temperature fluctuation; − water vapour condensation, dusting, icing. Changes made to the manufacturing of products may be introduced before the paper version of the manual is updated. The up-to-date manuals are available on the manufacturer’s website: www.aplisens.com.
-
Page 4: Table Of Contents
EN.IO.APCE.APRE.2000 TABLE OF CONTENTS 1. INTRODUCTION ....................... 6 1.1. Purpose of the document ....................... 6 1.2. Trademarks ........................... 6 1.3. Transmitter set range ......................6 1.4. Definitions and abbreviations ....................7 2. SAFETY ..........................8 3. TRANSPORT AND STORAGE ..................8 3.1. - Page 5 EN.IO.APCE.APRE.2000 LIST OF DRAWINGS Figure 1. Set range and measurement limits ..................6 Figure 2. Electrical connection of transmitter with PD connection ............11 Figure 3. Electrical connection of transmitter with PZ connection ............12 Figure 4. Electrical connection 4 … 20 mA of HART to transmitter in standard version ..... 12 Figure 5.
-
Page 6: Introduction
1.1. Purpose of the document The subject of manual are smart pressure transmitters APCE-2000, smart differential pressure trans- mitters APRE-2000, APRE-2000G, hereinafter referred jointly to as the transmitters. The manual ap- plies to the following versions: standard, intrinsically safe Exi. -
Page 7: Definitions And Abbreviations
EN.IO.APCE.APRE.2000 1.4. Definitions and abbreviations Table 1. Definitions and abbreviations Item Abbr. Meaning "Lower Range Value" – the value of the set range expressed in physical units corre- sponding to the current of 4,000 mA, i.e. 0% of the output setpoint. The set range cannot exceed the set range limits. -
Page 8: Safety
Delivery check After receiving the delivery, please refer to the general terms and conditions of contracts available on the manufacturer website: https://aplisens.com/ogolne_warunki_umow.html. 3.2. Transport Transport of transmitters shall be carried out with the use of covered means of transport, in original packages with diaphragm provided with protection. -
Page 9: Identification
EN.IO.APCE.APRE.2000 IDENTIFICATION Manufacturer’s address 5.1. APLISENS S.A. 03-192 Warsaw Morelowa 7 St. Poland 5.2. Transmitter identification Depending on the version of the transmitter, the nameplates may differ in the amount of information and parameters. Table 2. Symbols occurring on the transmitter nameplate... -
Page 10: Installation
EN.IO.APCE.APRE.2000 INSTALLATION 6.1. General recommendations It is recommended that in case of a gaseous medium, the transmitters should be installed above the measuring point so that condensate may flow to the point from which the meas- ured pressure is collected, while in case of liquid medium or steam, it should be installed below the point of pressure intake. -
Page 11: Electrical Connection
EN.IO.APCE.APRE.2000 ELECTRICAL CONNECTION 7.1. Cable connection to transmitter internal terminals All connection and installation operations shall be performed with disconnected supply voltage and other external voltages, if used. Failure to provide proper connection of the transmitter may result in danger. Risk of electric shock and/or ignition in potentially explosive atmospheres. -
Page 12: Connection Of Transmitter With The Option Of Using Hart Communication
R Figure 4. Electrical connection 4 … 20 mA of HART to transmitter in standard version The converter may also be operated using Aplisens Mobile Configurator installed on smartphones with Android system and connected using wireless communication. -
Page 13: Transmitter Power Supply
Internal electrical switching terminals are suitable for conductors with the cross-section from 0,5 to 2,5 mm 7.2.5. Cabling specification Aplisens S.A. recommends using two-wire screened twisted pair cable (connect the screen on one side at the point where the transmitter is powered). Revision 01.A.001/2023.09... -
Page 14: Earthing
Transmitters in standard version are fitted with overvoltage protection. In addition, an external protec- tive device such as the APLISENS UZ-2 system or other. In intrinsically safe transmitters, in order to increase the resistance to excessive surge, it is possible to use the overvoltage protection SA version. -
Page 15: Start-Up
EN.IO.APCE.APRE.2000 START-UP As standard, the transmitter is adjusted to a set range equal to the base range, unless a specific set range is provided in the order. The base range and the basic unit of the transmitter can be read out from its nameplate (➔... -
Page 16: Configuration Of Operating Mode
EN.IO.APCE.APRE.2000 8.2. Configuration of operating mode Before starting the work with the transmitter, the following parameters must be configured: − basic unit of transmitter; − processing characteristics; − the beginning of the set LRV range; − the end of the set URV range; −... -
Page 17: Operation
− Communicators from other companies, including those using DDL and DTM libraries. − PC computers equipped with HART modem (e.g. HART/USB converter by Aplisens S.A.) with Windows7 or Windows10 operating system with installed Raport 2. − PC computers equipped with HART modem using software from other companies, accepting DDL and DTM libraries. -
Page 18: Maintenance
EN.IO.APCE.APRE.2000 MAINTENANCE 10.1. Periodic inspections Periodic inspections shall be carried out in accordance with applicable standards. During the inspection, the condition of the pressure (absence of loosened elements and leaks) and electrical (check of con- nections reliability and condition of gaskets and glands) connectors, condition of separating diaphragms (tarnish, corrosion) and stability of fixing of the housing and mounting bracket (if used) shall be checked. -
Page 19: Scrapping, Disposal
EN.IO.APCE.APRE.2000 SCRAPPING, DISPOSAL Worn or damaged devices shall be scrapped in accordance with WEEE Directive (2012/19/EU) on waste electrical and electronic equipment or returned to the manufac- turer. HISTORY OF REVISIONS Revision Document revision Description of changes 01.A.001/2023.09 Initial document version. Prepared by DFBD, DCF. Revision 01.A.001/2023.09... -
Page 20: Instructions For The Explosion-Proof Device
Ex VERSIONS Introduction This instruction applies only to the APCE-2000, APRE-2000, APRE-2000G, intrinsically safe (Exi) trans- mitters designed in accordance with ATEX Directive, provided with the rating plate as specified in sec- tion and information about Exi design in the Product Certificate. The appendix contains supplementary information relating intrinsically safe versions of transmitters. - Page 21 EN.IO.APCE.APRE.2000 EN.IX.APCE.APRE Permitted input parameters (based on data from the KDB 12ATEX 0077X and certificates and certification documentation) Permissible input parameters for power supply with linear output characteristic: Ui = 30 V; Ii = 0,1 A; Pi - according to table below. Permissible input parameters for power supply with trapezoidal and rectangular output characteristic: Ui = 24 V;...
- Page 22 EN.IO.APCE.APRE.2000 EN.IX.APCE.APRE Basic requirements according to EN 60079-25 for type A and B leads used to connect the transmitter to the power supply and measurement circuit Basic requirements according to PN-EN 60079-25:2011 for type A and B cables used to connect the transmitter with the power supply and measurement circuit.
