Motor-Roller
Shades

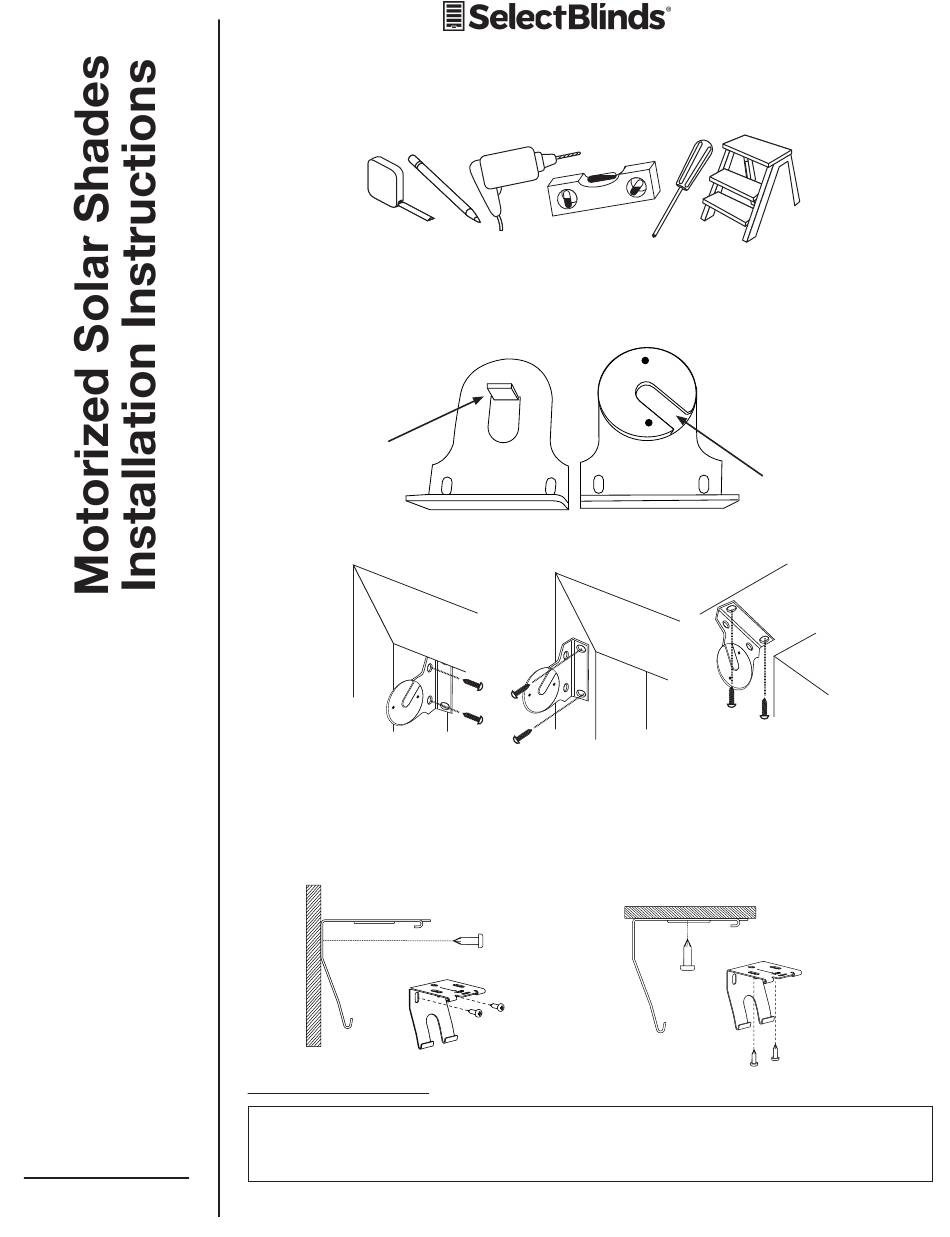

INSTALLATION INSTRUCTIONS
INSTALL THE SHADE BEFORE ATTEMPTING TO OPERATE THE MOTOR.
Tools Required:
Tape measure, pencil, drill, drill bits, screw driver, step stool or ladder.
Note: use a 5/64" drill bit to pre-drill the screw holes (for attachment to a wall stud or header board). Use Wall
Anchors (not included) for hollow dry wall or plaster mounting.
Step 1. Mount the Brackets [Note: If your shade has a Cassette Valance (the shade is pre-mounted in a
decorative aluminum cover) locate the special instructions for installing the Cassette]
Attach the brackets to the window frame, molding or ceiling as shown.
Tab for Motor
Note that the bracket for the motor end of the shade has a tab that fits into the motor housing. The Pin-
End Bracket has a slot that the pin end slides into.
Mark the screw locations with a pencil – pre-drill the screw holes using a 5/64" drill bit.
Step 2A. Cassette Installation (for shades with optional Cassette Valance)
The shade is pre-mounted in the cassette. It can be removed to adjust tension, if necessary.
To attach the cassette outside the window frame, use the rear bracket holes as illustrated.
To attach the Cassette inside the window frame (or to the ceiling), use the top bracket holes as illustrated.
Attach the Cassette by placing the back-bottom of the head rail into the bottom of each mounting bracket.
Push forward and up, snapping the rail into the top of the mounting bracket.
Operating the Shade
See the dedicated programming and operating instructions that came with the shade.
If you cannot locate these instructions, please call Customer Service.
Outside
Window
Frame
Mount
IMPORTANT
CUSTOMER SERVICE: 1-800-264-1190
Slot
Inside
Window
Frame or
Ceiling
Mount
