RightAngle NewHeights Assembly Instructions

K&A MANUFACTURING
6703 ZINSER ST., SCHOFIELD, WI 54476
PHONE: 800.298.4351 FAX: 866.882.9475
www.raproducts.com
VERSION DATED: 5/16/13
4
7
6 5
STEPS 3 & 4
INSTRUCTION # 52860
TOOLS REQUIRED FOR ASSEMBLY:
CORDLESS DRILL
#2 PHILLIPS HEAD DRIVER BIT
7/32 HEX HEAD DRIVER BIT OR
ALLEN WRENCH PROVIDED
TAPE MEASURE
LEVEL
READ ALL THE INSTRUCTIONS
BEFORE BEGINNING
DO NOT OPERATE THE UNIT
UNTIL IT IS FULLY ASSEMBLED
1
2
3
STEPS 1 & 2
WORKSURFACE SUPPORT
A
HARDWARE PACK # 52859 U-CHANNEL HARDWARE # 52706

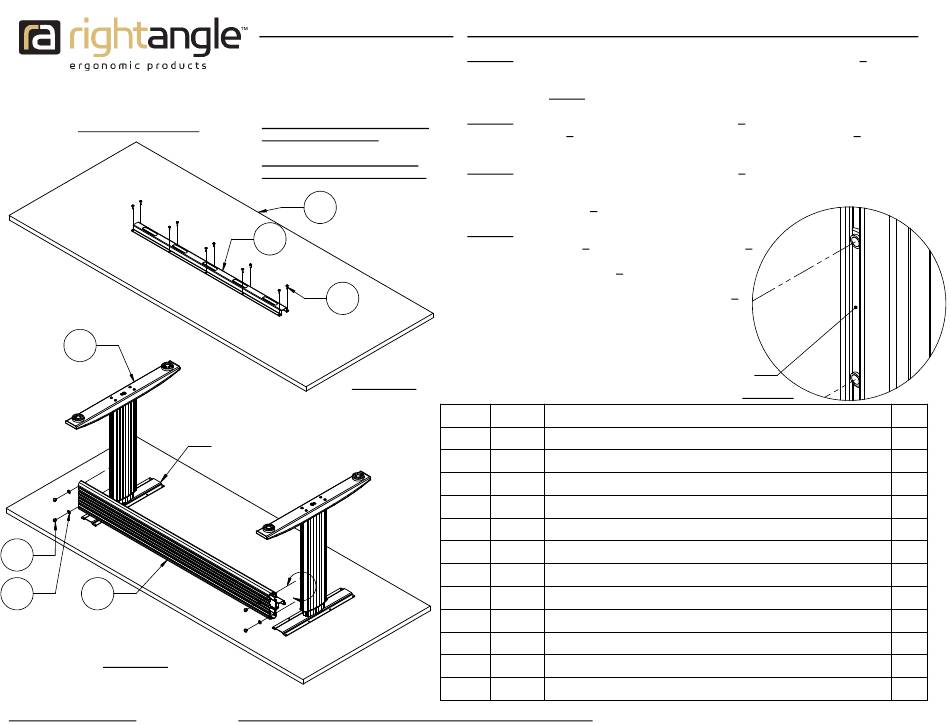

NewHeights™ TWO-COLUMN CONFERENCE TABLE ASSEMBLY INSTRUCTIONS:
STEP 1: WITH THE HELP OF AN ASSISTANT, LAY THE WORKSURFACE 1 ON A
PROTECTED SURFACE WITH THE PILOT HOLES FACING UP. IF YOUR
CONFERENCE TABLE HAS A U-CHANNEL, ATTACH IT AS FOLLOWS. IF NOT,
PROCEED TO STEP 3.
STEP 2: ALIGN THE HOLES IN THE U-CHANNEL 2 WITH THE PILOT HOLES IN THE
WORKSURFACE 1 . ATTACH IT WITH (10 OR 12) WOOD SCREWS 3 . DO NOT
OVER-TIGHTEN THE SCREWS. USE A LOW TORQUE SETTING ON THE DRILL.
STEP 3: PLACE THE LIFT COLUMN ASSEMBLIES 4 ON THE WORKSURFACE WITH
THE FEET FACIING UP. THE MOTOR WIRES MUST FACE THE INSIDE OF THE TABLE.
ALIGN THE HOLES IN THE WORKSURFACE SUPPORTS WITH THE PILOT HOLES IN
THE WORKSURFACE 1 .
STEP 4: WITH THE HELP OF AN ASSISTANT, PLACE
(4) STAR WASHERS 6 ON (4) SOCKET SCREWS 7 .
INSERT THESE THROUGH THE HOLES AT EACH END
OF THE CROSS SUPPORT 5 AND THREAD THEM
INTO THE T-SLOT PLATES THAT ARE
PRE-INSTALLED IN THE COLUMN ASSEMBLIES 4 .
SEE DETAIL A. DO NOT FULLY TIGHTEN.
ITEM # PART #
1 VARIES WORKSURFACE
2 VARIES U-CHANNEL
3 51708 M5 x 18mm SQ/PH/WSHR HEAD WOOD SCREW
4 800888 NewHeights 30" COLUMN ASSY CENTERED FOOT 2
5 VARIES NewHeights CROSS SUPPORT
6 52477 3/8 INTERIOR TOOTH STAR WASHER
7 52470 3/8-16 x 3/8 BUTTON HEAD SOCKET SCREW
8 800411 NewHeights/HOVER END CAP
9 50285 NewHeights HAND SWITCH
10 50298 NewHeights CONTROL BOX
11 51951 WIRE MANAGEMENT J
12 52498 7/32" ALLEN WRENCH
PRE-INSTALLED
T-SLOT PLATE
DETAIL A
DESCRIPTION QTY.
1
1
31
2
8
8
4
1
1
1
1
PAGE 1 OF 4
