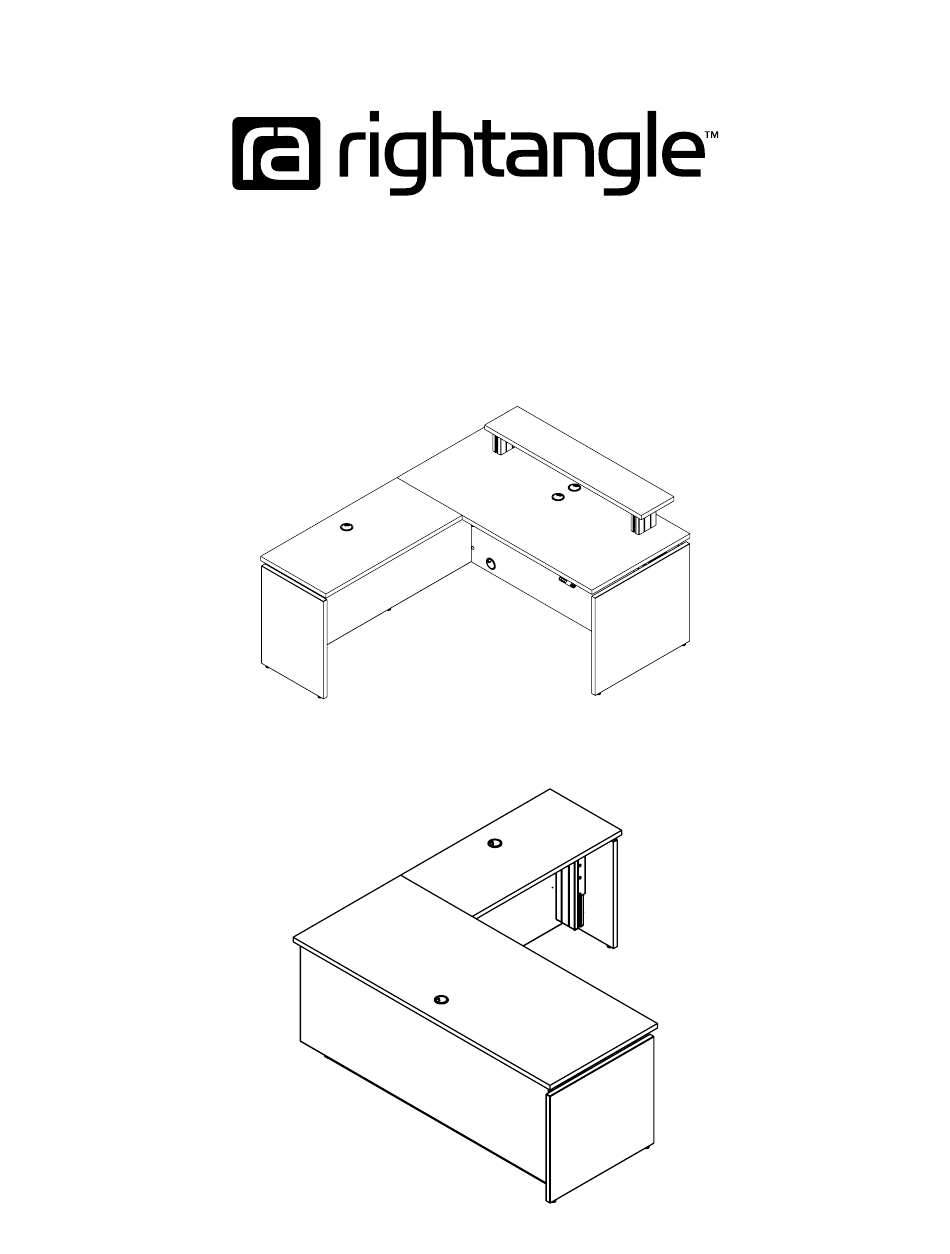

- Page 1 NewHeights™ Presidente Executive Fully Enclosed 3-Leg Assembly Instructions Presidente Reception Presidente Executive Instruction #54644 • Dated: 02/12/2025 1 of 19...
- Page 2 Any different use, or use extending beyond the intended use, may result in property damage or bodily injury and is pro- hibited. This Product should not be used, operated or maintained with additional components not authorized by RightAngle Products.
-
Page 3: Tools Required For Assembly
Tools Required for Assembly Assembly Requires Two People A. Power Driver with Adjustable Torque B. #2 Phillips Head Driver Bit C. #2 Square Head Drive Bit D. 3/16” Hex Head Driver Bit or Allen Wrench E. 3/16” Allen Wrench Phillips Screwdriver Hardware Included for Assembly (may have extra) G. - Page 4 MAIN DESK SEGMENT (M): The portion of the desk Reference Image that includes the reception counter and the largest of the two worksurfaces.Section outlined in bold. Main Return RETURN DESK SEGMENT (R): The portion of the desk that DOES NOT include the reception counter and has the smallest of the two worksurfaces.
- Page 5 Parts Continued RETURN DESK SEGMENT PANELS GG. Back Panel (Return) x1 HH. Modesty Panel (Return) x1 Side Panel (Return) x1 To identify the bottom edge of each panel, look for a metal ring like the one shown below. K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 5 of 19...
- Page 6 Step 1 • Lay the Main Side Panel (FF) and Return Side Panel (II) on a protected surface with pilot holes facing up. • Align one front bracket (U) with the pre- drilled holes on each of the side panels. Secure using four washer head drive screws (K).
- Page 7 Step 3 • Lay the Return Back Panel (GG) on a protected surface with pilot holes facing • Align the front bracket (U) with the middle set of pre-drilled holes. Secure using four washer head drive screws (K). The inside of the bracket (U) should be facing the right edge of the panel as shown in picture.
- Page 8 Step 5 • Lay the Return Modesty Panel (HH) on a protected surface with pilot holes facing • Align two modesty panel bracket (V) with the pre-drilled holes along the top edge. Secure using washer head drive screws (K). The inside of the bracket (U) should be facing the right edge of the panel as shown in picture.
- Page 9 Step 8 • Slide the left side of the Main Back Panel (CC) onto the SlimFix bolts on the Return Back Panel (GG). The SlimFix bolts should be fully inserted into the cams. • Using a phillips screwdriver, lock the cams by turning them clockwise.
- Page 10 Step 10 • Align each leg column to the pre- drilled holes. Attach each column to the coordinating back panel using four round washer head drive screws (K). • A total of 12 round washer head drive screws (K) will be used during this step Step 11 •...
- Page 11 Step 12 • Attach the two cross braces to the SlimFit Cross Brace bolts on the Main Back Panel and Main SlimFix Bolts Kick Panel. When inserting the cross braces, first slide them under the SlimFit bolts and then pull up until bolts are fully inserted into the Cross Brace cams.
- Page 12 Step 14 • Install the transaction counter - ONLY do this step if you have the Reception desk. This step only applies to the Reception version of this desk. • Position the Main Worksurface so its back edge is touching the floor and the front edge is pointing SKIP this step if you have the Executive upwards.
- Page 13 Step 16 Motor Cable 1 • On Main Worksurface, connect all three motor cables to the control box. • From the control box, route each of the motor cables through the U-Channel. Pull one cable through to the same side of the worksurface as the control switch.
- Page 14 Step 18 • With the help of another person, flip the Main Worksurface assembly right side up and place onto the base. It should align with the two left legs (AA). • Align the pre-drilled holes on the worksurface and the inner-most holes on the leg column bracket.
- Page 15 Step 20 • With the help of another person, flip the Return Worksurface assembly right side up and place onto the base. • Align the worksurface’s pre-drilled holes with the remaining leg (BB) and two joiner plates. • Attach the worksurface using three washer head drive screws (K) for the leg column bracket, four washer head drive screws (K) for the front joiner plate, and...
- Page 16 Step 22 • Install grommet inserts (P). Step 23 • Align the cross support (W) to the weld nuts (N) on each outer support (Z). • Attach using four button socket cap screws (I). Make sure cross support is level, and then fully tighten the screws.
-
Page 17: Standard Switch
- To delete the lower container stop press You will hear a musical tone. Troubleshooting: If you are having any problems with the operation, contact RightAngle Products at 800.298.4351 or orders@raproducts.com K&A Manufacturing • 800.298.4351 • www.raproducts.com/install 17 of 19... - Page 18 Optional Programmable Switch (full instructions packaged with switch) Start Up Procedure: • Plug the power cord into a standard 110V receptacle. A power surge protector is recommended. • Press the down arrow until the worksurface reaches its lowest position. • The workstation is ready for use. •...
- Page 19 Mechanical Reset Mode If the table is unresponsive, uneven, or not functioning properly, perform a manual reset. User settings are not reset in this process. There are three methods to reset a workstation: Reset Method A 1. Clear all obstructions from the travel path of the workstation 2.
