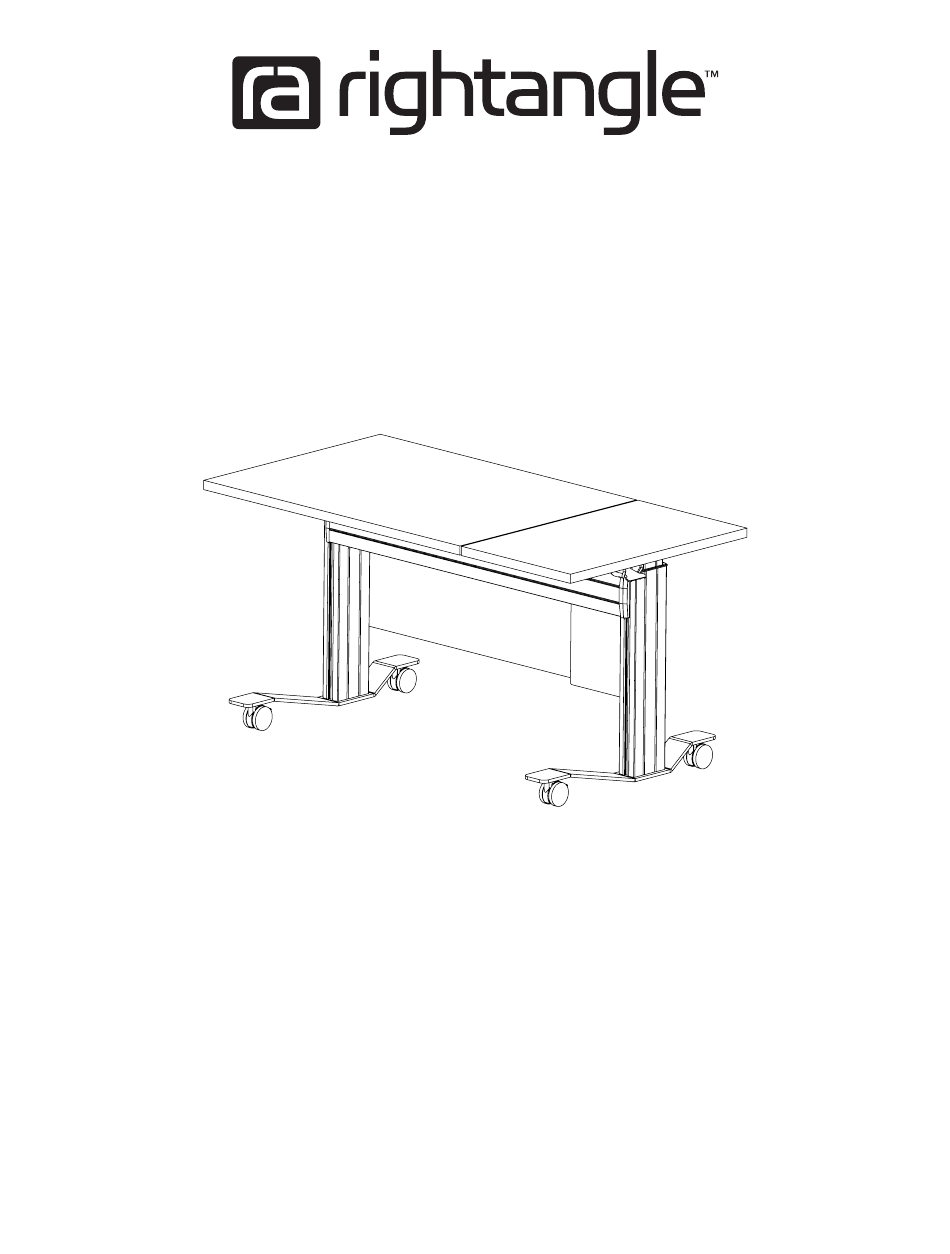

- Page 1 NewHeights™ Hooligan Teacher’s Desk Modesty Panel Assembly Instructions Warranty: raproducts.com/warranty Instruction #54681 • Dated: 3/1/2022 1 of 6...
-
Page 2: Tools Required For Assembly
Tools Required for Assembly Tools Required for Assembly A. Power Driver with Adjustable Torque B. #2 Phillips Head Driver Bit C. 3/16” Allen Wrench D. 5mm Allen Wrench Hardware and Tools Included for Assembly (may have extra) E. 5/8” Washer Head Wood Screw x4 3/8”... - Page 3 Step 1 • Place the Hooligan desk upside down on a protected surface with the desk legs and underside of the worksurface facing up. • Using the 5mm allen wrench (D), loosen the bolt to open the clamping portion of one acrylic panel surface mount (G). •...
- Page 4 Step 3 • Slide the podium side acrylic panel (I) into the two surface mounts (G). • Using the 5mm allen wrench (D), tighten the surface mounts (G) to secure the panels. Image above shows second cross support removed for clarification purposes only. Step 4 •...
- Page 5 Step 4 continued • Using the allen wrench, slide the weld nut up until the bottom of the modesty panel is flush with the top of the cross support. • Keeping the weld nut & allen wrench in place with one hand, use your other to insert one button socket cap screw (F) through the top hole hole of the modesty panel and into the weld nut.
- Page 6 Step 5 • Then, insert the last two button socket cap screws (F) into the remaing holes of the modesty panel. Do not fully tighten. • Carefully adjust the desk side modesty panel to your chosen position. We recommend pushing the panel up against the cross support.
