Simplified MFG EXARC User Manual

Hdmi 2.0b (18gbps) 40m hdmi extender with arc and optical audio return
Hide thumbs Also See for EXARC:

Advertisement

Quick Links

EXARC
HDMI 2.0b (18Gbps) 40m
HDMI Extender with ARC and
Optical audio return
VER 2.1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXARC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Simplified MFG EXARC

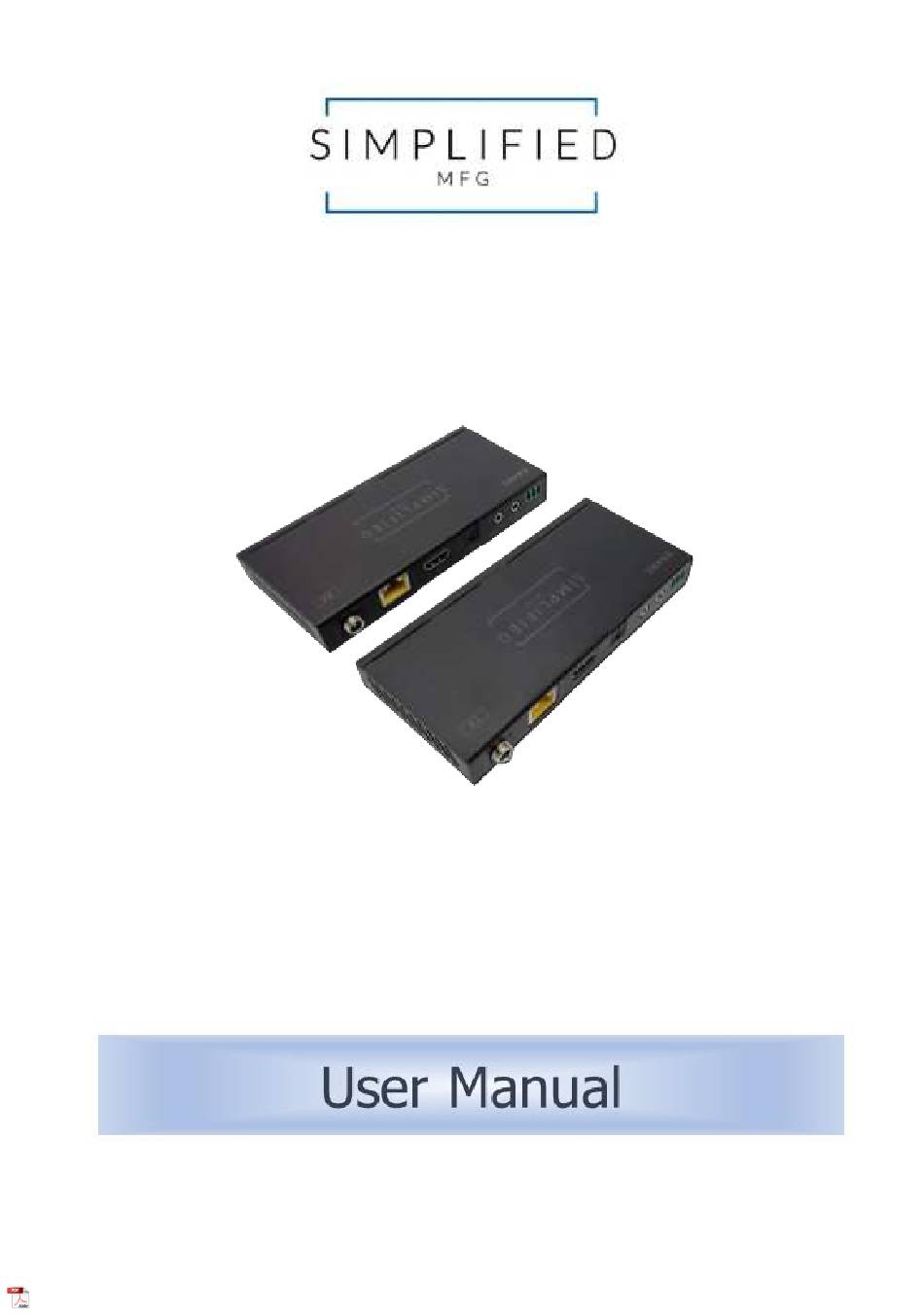

  • Page 1 EXARC HDMI 2.0b (18Gbps) 40m HDMI Extender with ARC and Optical audio return VER 2.1...
  • Page 2: Table Of Contents

    EXARC extender is equipped with two-way IR and RS232 which allows for source and display control. The EXARC extender is a great way to bring audio back from the display to the TX end either through the HDMI (ARC) or via optical S/PDIF. This transmission is independent of...
  • Page 3: Features

    2. Features • HDMI 2.0b and HDCP 2.2 compliant • Supports input and output video resolution up to 4k2k@60Hz 4:4:4 up to 18Gbps • Supports HDR/HDR+/DolbyVision™ • Distance up to 131ft/40m @ 4k - 230ft/70m @1080p • Brings ARC or optical S/PDIF from RX back to TX •...
  • Page 4: Specifications

    4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps HDR Formats HDR/HDR10+/DolbyVision™ Video Resolution Up to 4K60Hz 4:4:4 Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4) HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby...
  • Page 5: Operation Controls And Functions

    Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet. (Note: The EXARC can be powered from either the RX or the TX by 24V/1A power adapter, only one supply is needed) EDID Switch is set to copy the display’s EDID. STD is a 1080p setting designed to help in...
  • Page 6: Receiver Panel

    DC 24V Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet. (Note: The EXARC can be powered from either the RX or the TX by 24V/1A power adapter, only one supply is needed) The audio selection switch is set to HDMI ARC, in this position, the audio from the eARC/ARC input on the display will be output via HDMI in or optical out on the TX.
  • Page 7: Ir Pin Definition

    5.3 IR PIN Definition IR Use Example:...
  • Page 8: Application Example

    Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary.
  • Page 9: Contact Information

    8. Contact Information Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 © Copyright Simplified MFG 2023...
  • Page 10 TX and the RX allowing IR and RS232 to be sent from source end to display and/or from display end to source end Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
  • Page 11 Known working terminated Category cable • means no HDCP, off means no signal at HDMI port(s) • SP12S splitter for clocking issues, etc. Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
  • Page 12 Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X Formats ARC Audio Dolby Digital 5.1 and down, DTS 5.1, and PCM 2.0 Formats The EXARC is a HDMI over category S/PDIF Audio Dolby Digital 5.1 and down, DTS 5.1, and PCM 2.0 cable extender that supports ARC Formats Human body model —...
