EXeARC1
HDMI 2.0b (18Gbps)
Extender set with eARC/ARC
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXeARC1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Simplified MFG EXeARC1

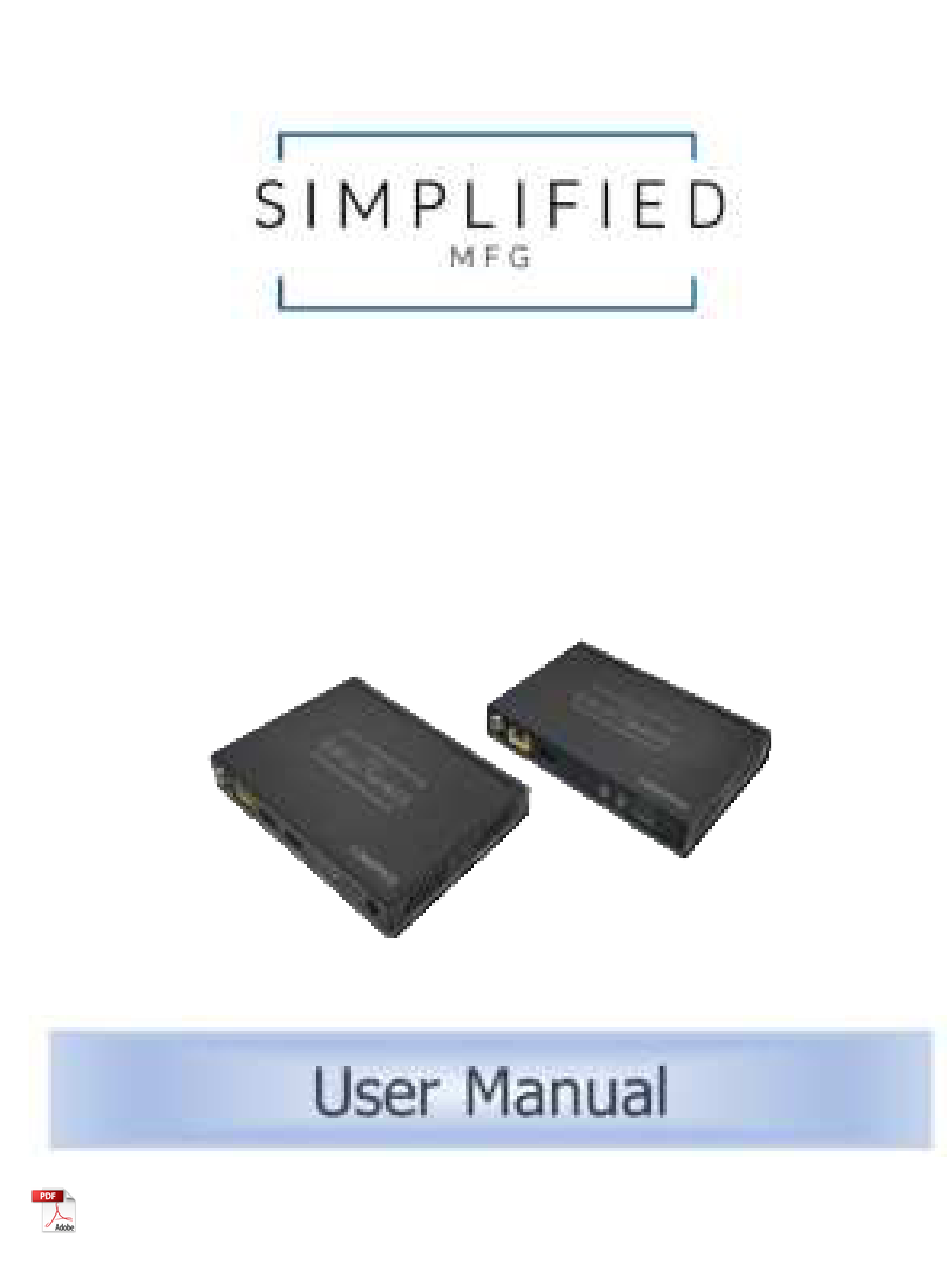

  • Page 1 EXeARC1 HDMI 2.0b (18Gbps) Extender set with eARC/ARC VER 1.0...
  • Page 2: Table Of Contents

    At Simplified MFG, we strive to make reliable cutting-edge devices and the EXeARC1 is the result of a commitment to deliver cutting-edge devices first. First means nothing if it is not reliable. The EXeARC1 was constructed with the highest grade components available and should provide years of reliable service.
  • Page 3: Introduction

    1. Introduction The EXeARC1 is the world’s first eARC HDMI extender kit on category cable. It is designed to return eARC or ARC via the HDMI cable plugged into the TX portion of the extender set. The EXeARC1 supports the HDMI2.0b format (18Gbps) HDR/HDR+/DolbyVision®...
  • Page 4: Package Contents

    3. Package Contents Item 18Gbps 50M /W eARC Extender (Transmitter) 18Gbps 50M /W eARC Extender (Receiver) IR Blaster Cable (1.5 meters) 20~60KHz IR Receiver Cable (1.5 meters) Mounting Ears 3-pin Phoenix Connector 24V/1A Locking Power Supply User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b...
  • Page 5 Connection Input: 1x HDMI Type A [19-pin female] Output: 1x HDMI Type A [19-pin female] 1x CAT OUT [RJ45, 8-pin female] Transmitter Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Micro USB, Update port] Input: 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI Type A [19-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack]...
  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel SERVICE HDMI IN Audio OUT IR IN IR OUT RS 232 MODE DC 24V Name Function Description Power LED Illuminated Red when power is applied SERVICE port Firmware update port. DC 24V/1A power supply input port. Note that the extender supports POC function, it means that DC 24V either transmitter or receiver is powered on by 24V/1A power...
  • Page 7: Receiver Panel

    IR IN IR input port for receiving the signal of IR remote. IR output port for control of source device. This IR output 10 IR OUT signal is from the IR IN port of the receiver. 3-pin Phoenix connector, connect to a PC or control system 11 RS-232 for RS-232 command pass-through.
  • Page 8: Ir Pin Definition

    ▪ Illuminated: Transmitter and Receiver are Connection connected Signal ▪ Flashing: Transmitter and Receiver are not Indicator LED connected well. (Green) ▪ Dark: Transmitter and Receiver are not connected. ▪ Illuminated: HDMI signal with HDCP. Data Signal ▪ Flashing: HDMI signal without HDCP. Indicator LED ▪...
  • Page 9 The following is IR system diagram about IR cable use method. IR Remote IR Remote IR Receiver cable CAT 5e/6 cable HDMI OUT IR IN IR OUT RS-232 HDMI IN Audio OUT IR IN IR OUT RS-232 MODE DC 24V DC 24V Transmitter Receiver...
  • Page 10: Application Example

    6. Application Example Transmitter HDMI IN Audio OUT IR IN IR OUT RS-232 MODE DC 24V Control System IR Blaster Power Supply IR Receiver CAT 5e/6 cable IR Receiver UHDTV IR Blaster Receiver HDMI OUT IR IN IR OUT RS-232 DC 24V Power Supply UHDTV...
  • Page 11: Warranty

    A purchase receipt or other proof of purchase date is required for the limited warranty service. 8. Contact Sales and tech support; P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa, AZ 85210 9 / 9...
  • Page 12 ̶ ̶ ̶ ̶ ̶ ̶ Ir RX Ir RX ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ ̶ RS232 RS232 Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
  • Page 13 4. Fully uncompressed audio extraction from display Sound Bar Sound Bar back to AVR via eARC (including Atmos) Category cable full uncompressed EXeARC1 TX EXeARC1 RX HDMI HDMI audio returns from display 5. Several sources, no AVR audio extraction at...
  • Page 14 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 10-bit, 12-bit The EXeARC1 is the first HDMI over HDMI Audio category cable extender that supports LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digi- Formats tal+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos,...
