Summary of Contents for Simplified MFG EXACKT

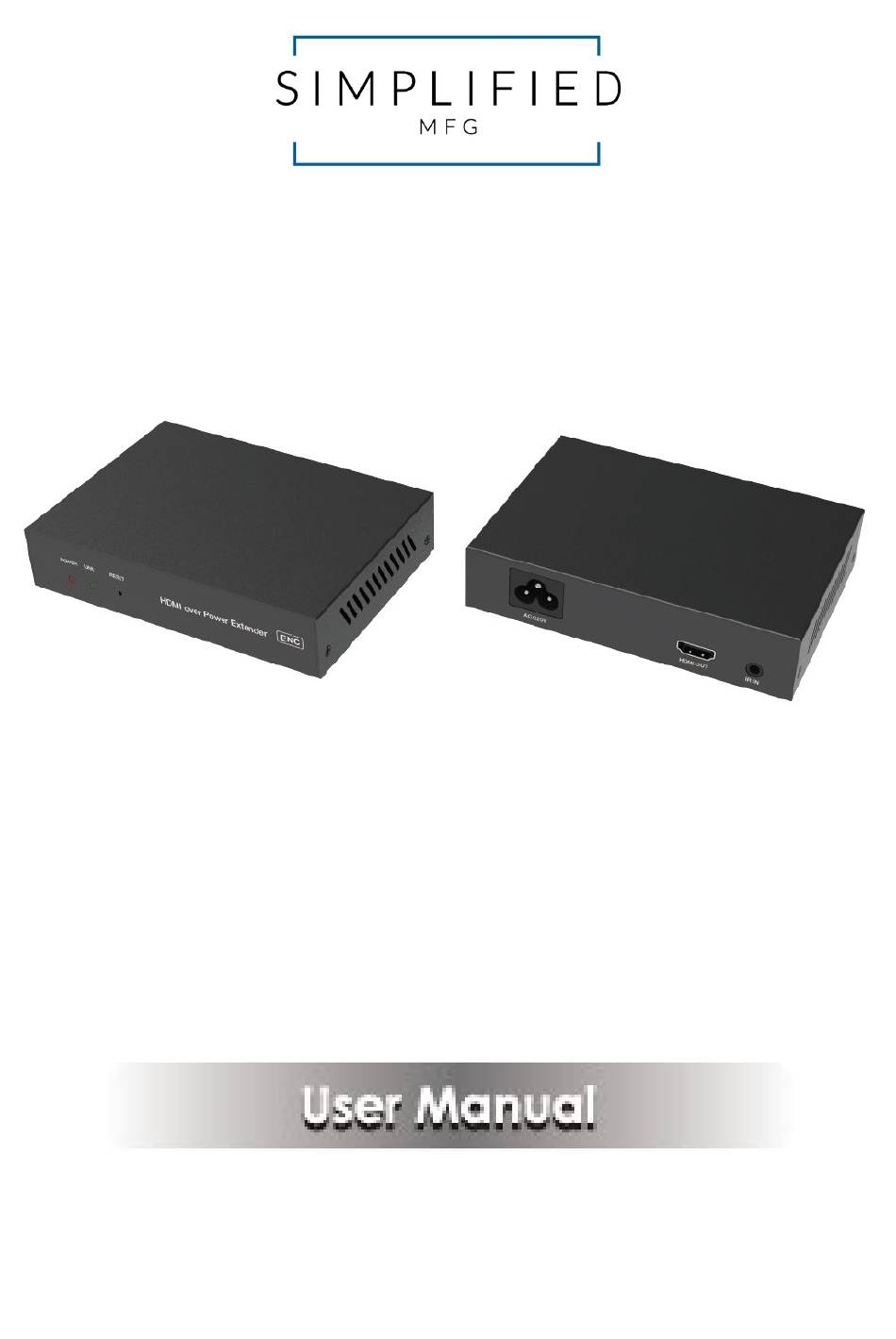

- Page 1 EXACKT HDMI over AC Extender Kit VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product The Simplified MFG EXACKT is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience. -
Page 3: Features
2. Features • Plug and play operation • Supports video resolutions 480i/480p/720p/1080i/1080p/1400x1050 • Distance up to 230ft / 70 meters • Can be used with up to two extra receivers (sold separately) • Supports LPCM Stereo at 32kHz., 44.1kHz., & 48kHz. •... -
Page 4: Operation Controls And Functions
Transmitter Inputs: 1x HDMI Type A [19-pin female] Outputs: 1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] Receiver Inputs: 1x IR IN [3.5mm Stereo Mini-jack] Outputs: 1x HDMI Type A [19-pin female] Mechanical Housing Metal Enclosure Color Black Dimensions... -
Page 5: Receiver Panel
5.2 Receiver Panel Name Function description Power LED Red LED indicates that power is connected to Receiver/Decoder Link LED • Blinking = Not paired to Receiver • Blinking Rapidly = Pairing/Paired Recess Reset • Short press will copy EDID of connected display Button •... -
Page 6: Application Example
6. Application Example Please note up to two more receivers (decoders) can be added to an EXACKT kit (sold separately). All devices need to be on the same electrical panel in order to operate correctly. The part number is EXACDEC. -
Page 7: Contact Information
Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year PARTS and LABOR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary. - Page 8 EXACKT HDMI over AC Extender Kit Transmitter AC Cord (ENC) HD MI OU T HD MI OU T HDM I IN HDM I IN IR O UT IR O UT Receiver (DEC) AC Cord HD MI OU T HD MI OU T...
- Page 9 480i/480p/720p/1080i/1080p/1400x1050 Resolutions Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit, 10-bit, 12-bit The EXACKT is a HDMI over power HDMI Audio wire solution. Perfect when you have Formats LPCM 2 channel stereo @ 32kHz., 44.1kHz., & 48kHz no wiring infrastructure and it is cost (Pass-through) prohibitive to retrofit it.
