REX2
4K@30Hz. Extender Set
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REX2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Simplified MFG REX2

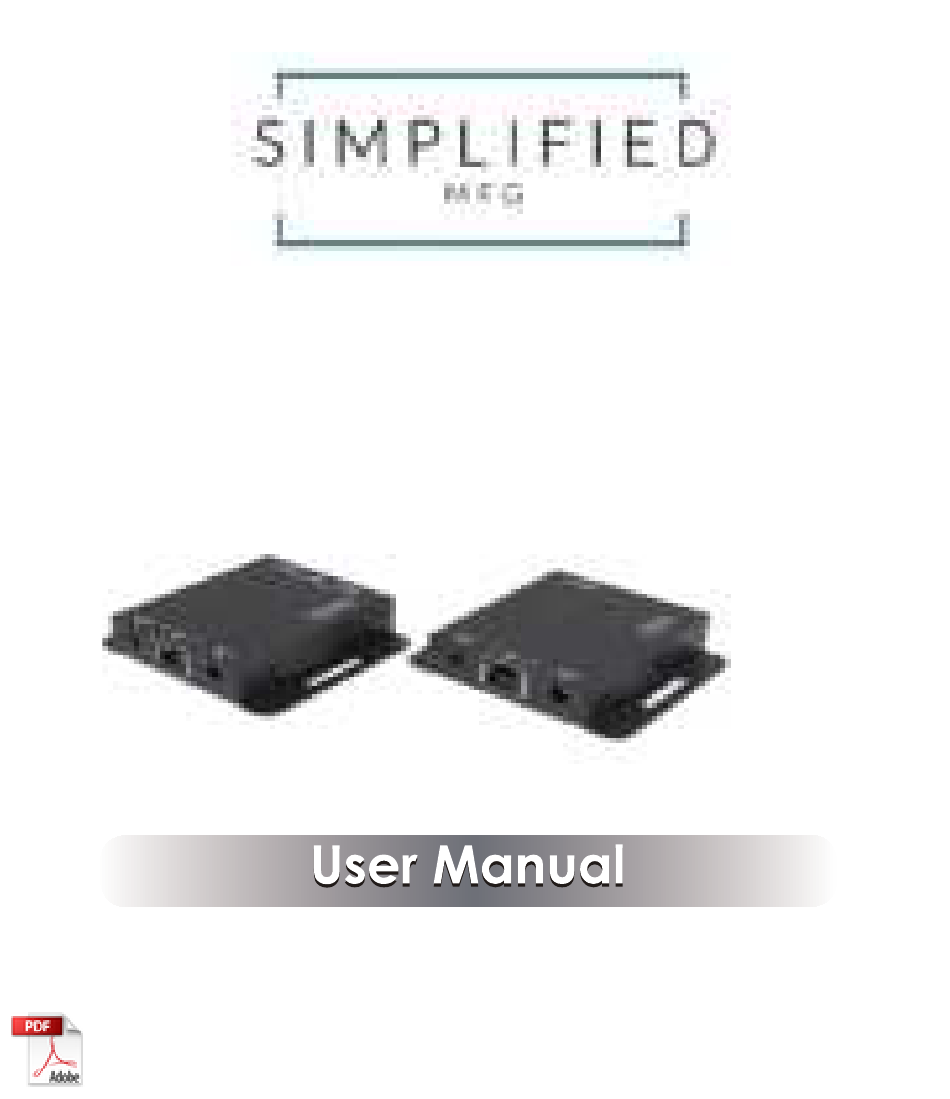

  • Page 1 REX2 4K@30Hz. Extender Set VER 1.0...
  • Page 2: Table Of Contents

    Thank you for purchasing the REX2 Extender The REX2 is a HDMI 1.4b 4K Extender set designed to provide years of reliable service. Please keep this manual as a reference. Surge protection device recommended The external supply is very robust, but a surge device is always good insurance in electrically active areas where the power grid is unreliable.
  • Page 3: Introduction

    1. Introduction The REX2 Extender can extend a 1080p AV signal up to 70m (232ft) and a 4K 30hz. signal up to 40m (131ft). The REX2 is compact and robust making it an excellent 1080p extender with the ability to also support 4K@30Hz.
  • Page 4: Package Contents

    3. Package Contents 1 × HDMI Transmitter 1 × HDMI Receiver 1 × IR Blaster Cable 1 × IR Receiver Cable 2 × 5V/1A DC Power Adapter 1 × User Manual 4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 10.2Gbps Video Resolution...
  • Page 5 Connection Input: 1 x HDMI Type A [19-pin female] Outputs:1 x HDMI Type A [19-pin female] Transmitter 1 x IR OUT [3.5mm Stereo Mini jack] 1 x CAT OUT [RJ45, 8-pin female] Inputs: 1x IR IN [3.5mm Stereo Mini jack] Receiver 1x CAT IN [RJ45, 8-pin female] Output: 1x HDMI Type A [19-pin female]...
  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel HDMI IN EDID HDMI OUT IR OUT DC 5V Name Function Description HDMI signal input port. Connect to HDMI HDMI IN source device. The switch is used for selecting EDID: Switch to the right position, the extender will copy EDID HDMI loop out display EDID information to Switch...
  • Page 7: Receiver Panel

    When the transmitter is connected to HDMI Link LED source, the LED will be illuminated. DC 5V DC 5V power supply port. 5.2 Receiver Panel HDMI OUT IR IN DC 5V Name Function Description HDMI signal output port. Connect to HDMI HDMI OUT display device such as HDTV.
  • Page 8: Ir Pin Definition

    5.3 IR Pin Definition IR Receiver and Blaster pin’s definition is as below: IR RECEIVER IR BLASTER IR Blaster IR Blaster Signal Power IR Receiver IR Signal Power Grounding...
  • Page 9: Application Example

    6. Application Example HDMI IN EDID HDMI OUT IR OUT DC 5V Transmitter Power Supply CAT5E/6 cable UHDTV IR Blaster DVD or Blu-ray Player HDMI OUT IR IN DC 5V Receiver Power Supply IR Receiver UHDTV The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
  • Page 10: Warranty

    (starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year PARTS and LABOR warranty.
  • Page 11: Contact

    8. Contact Sales and tech support; P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa, AZ 85210...
  • Page 12 AC. • IR Commands are returned from the display to the Transmitting unit for source control HDMI Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
  • Page 13 Known working terminated Category cable • means no HDCP, off means no signal at HDMI port(s) • SP12S splitter for clocking issues, etc. Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)
  • Page 14 3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 10-bit, 12-bit The REX2 is a HDMI 2.0a 4K Extender HDMI Audio LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Formats set that supports HDR @24/25/30Hz. Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby...
