Simplified MFG EXUSB2.0 User Manual

Usb2.0 over category cable extender kit

Advertisement

Quick Links

EXUSB2.0
USB2.0 over Category
cable extender kit
VER 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXUSB2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Simplified MFG EXUSB2.0

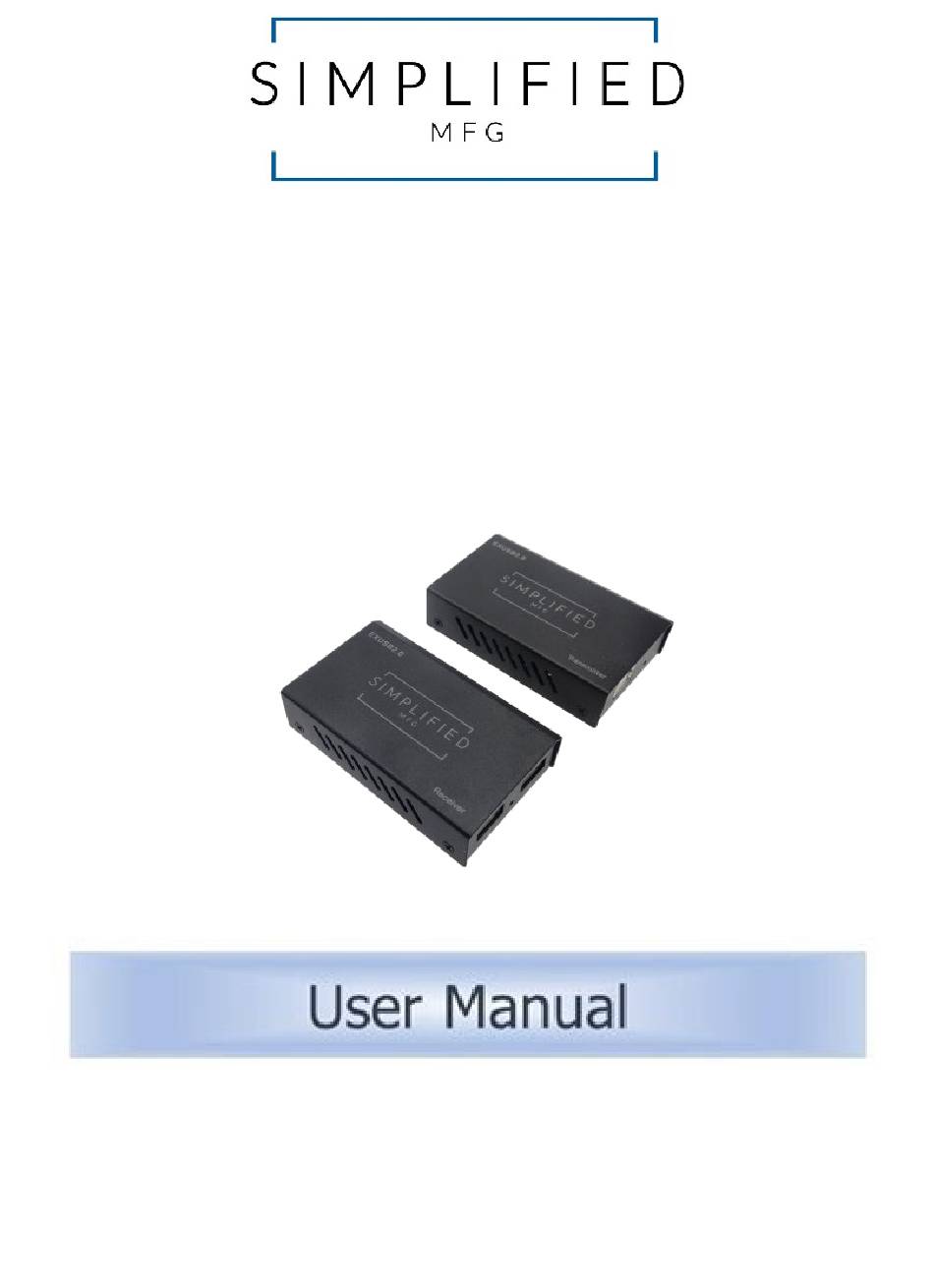

  • Page 1 EXUSB2.0 USB2.0 over Category cable extender kit VER 1.1...
  • Page 2: Table Of Contents

    Thank you for purchasing this device The Simplified MFG EXUSB2.0 is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.
  • Page 3: Introduction

    1. Introduction The EXUSB2.0 is an USB2.0 extender that will transmit USB2.0 signals up to 40m (131ft.). Common uses are KVM extension or camera control. The ETUSB2.0 is a reliable way to extend USB devices up to the 2.0 format as far as 40m (131ft.) TX is powered by USB and if there is more current the distance will increase as much a 10 more meters.
  • Page 4: Package Contents

    3. Package contents 1x Transmitter 1x Receiver 1x 1m USB cable (USB-B Male to USB-A male) 1x 5V/1A Power Supply 1x Manual 4. Specifications Technical USB Protocol Up to USB 2.0 Transmission Rate Up to 480Mbps Transmission 40m (131ft.) Distance ESD Protection Human-body Model:...
  • Page 5 Connection Transmitter 1× USB-B Female Input 1x RJ-45 Category cable output Receiver 1× RJ45 Category Cable Input 2x USB-A Female Mechanical Housing Metal Enclosure Color Black Dimensions (RX and 82mm (3.23”) [W] × 49mm (1.93”) [D] × 20mm (.79”) [H] Weight TX 100g/3.53oz.
  • Page 6: Operation Controls And Functions

    5.Operation Controls and Functions Transmitter (TX) ❶ ❷ ❸ Number Name Function description Connects via supplied USB Cable to PC USB-B Female Illuminates when connected to USB port LED Power of computer Indicator Cat Port Connects to RX via Category cable up to 40m in length 5.2 Receiver (RX) ❶...
  • Page 7: Application Example

    Name Function description Number Connects to USB Clients (camera, NVR, USB 2.0 Port etc.) LED Power will illuminate when Indicator connected to supplied 5V power supply Connect the supplied 5V/1A DC power DC 5V supply here Cat Port This RX device connects to the TX via (RJ-45) category cable plugged in here Application Example...
  • Page 8: Warranty

    (starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary.
  • Page 9: Contact

    Contact Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 © Copyright Simplified MFG 2022...
