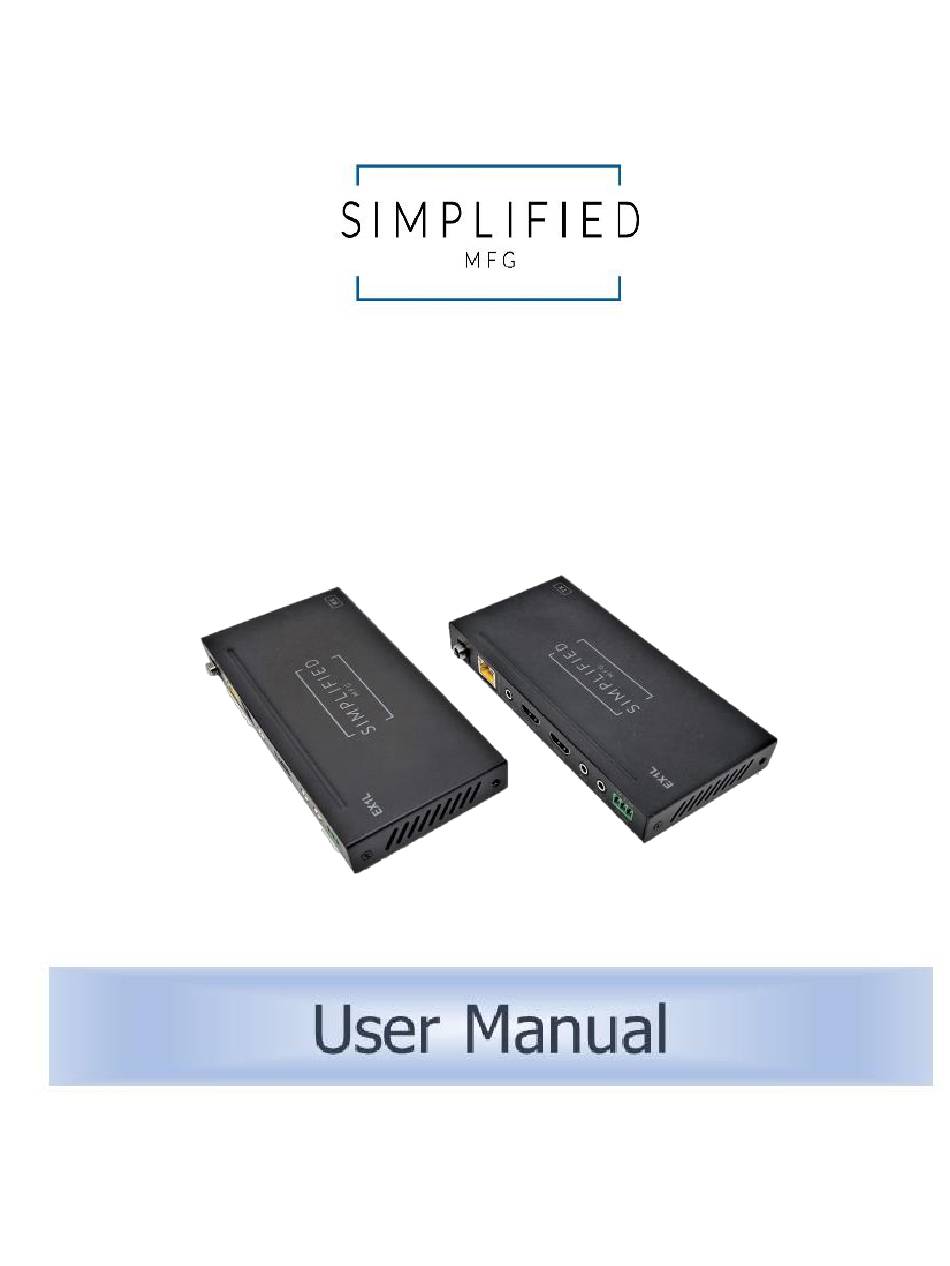

  • Page 1 EX1L HDMI 2.0b (18Gbps) 4K HDR/DolbyVision® 120m Extender Set VER 2.0...
  • Page 2: Table Of Contents

    Thank you for purchasing this Device The Simplified MFG EX1L was designed to provide years of reliable service. At Simplified MFG we want your experience with this device to be the best possible and are committed to helping achieve that experience. Please read and keep this manual for future reference.
  • Page 3: Introduction

    1. Introduction This EX1L 18Gbps HDMI Extender can extend HDR/Dolby Vision™ audio/video, RS-232, bi-directional IR, and the distance is up to 394ft /120m and a 1080p signal up to 150m (492ft) between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2.
  • Page 4: Package Contents

    3. Package Contents Item 18Gbps HDMI over HDBaseT Extender (Transmitter) 18Gbps HDMI over HDBaseT Extender (Receiver) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) Mounting Ears 3-pin Phoenix connectors 24V/1A Locking Power adapter User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b...
  • Page 5 Connections Inputs: 1x HDMI Type A [19-pin female] 1x Service [Mini-USB, Update port] Outputs: 1x HDMI Type A [19-pin female] Transmitter 1 x Audio L/R stereo [3.5mm Mini-jack] 1x HDBT Out [RJ45, 8-pin female] Control: 1x Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR Out [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] Inputs: 1x HDBT In [RJ45, 8-pin female]...
  • Page 6: Operation Controls And Functions

    LED indicates power status Service Port Firmware update port DC 24V Power Supply connection. The EX1L can be powered from either the TX or the RX. Only one supply is needed. Category - Illuminated: The RX and TX are connected well...
  • Page 7: Receiver Panel

    LED indicates power status Service Port Firmware update port DC 24V Power Supply connection. The EX1L can be powered from either the TX or the RX. Only one supply is needed. Category - Illuminated: The RX and TX are connected well...
  • Page 8: Ir Pin Definition

    IR Receiver and Blaster pin’s definition is as below: IR RECEIVER IR BLASTER Power 12V **Note** 12V IR from a third-party control system can be input into the IR RX on the TX portion of the EX1L. The cable should be a mono-to-mono cable. 6 / 9...
  • Page 9: Ir System Diagram

    5.4 IR System Diagram Note that IR remote sends signal distance for 0~5 meters/0~8 meters, and angle is plus-minus 45 degrees / vertical direction. 7 / 9...
  • Page 10: Application Example

    6. Application Example 8 / 9...
  • Page 11: Warranty And Contact Information

    Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 © Copyright Simplified MFG 2023 9 / 9...
