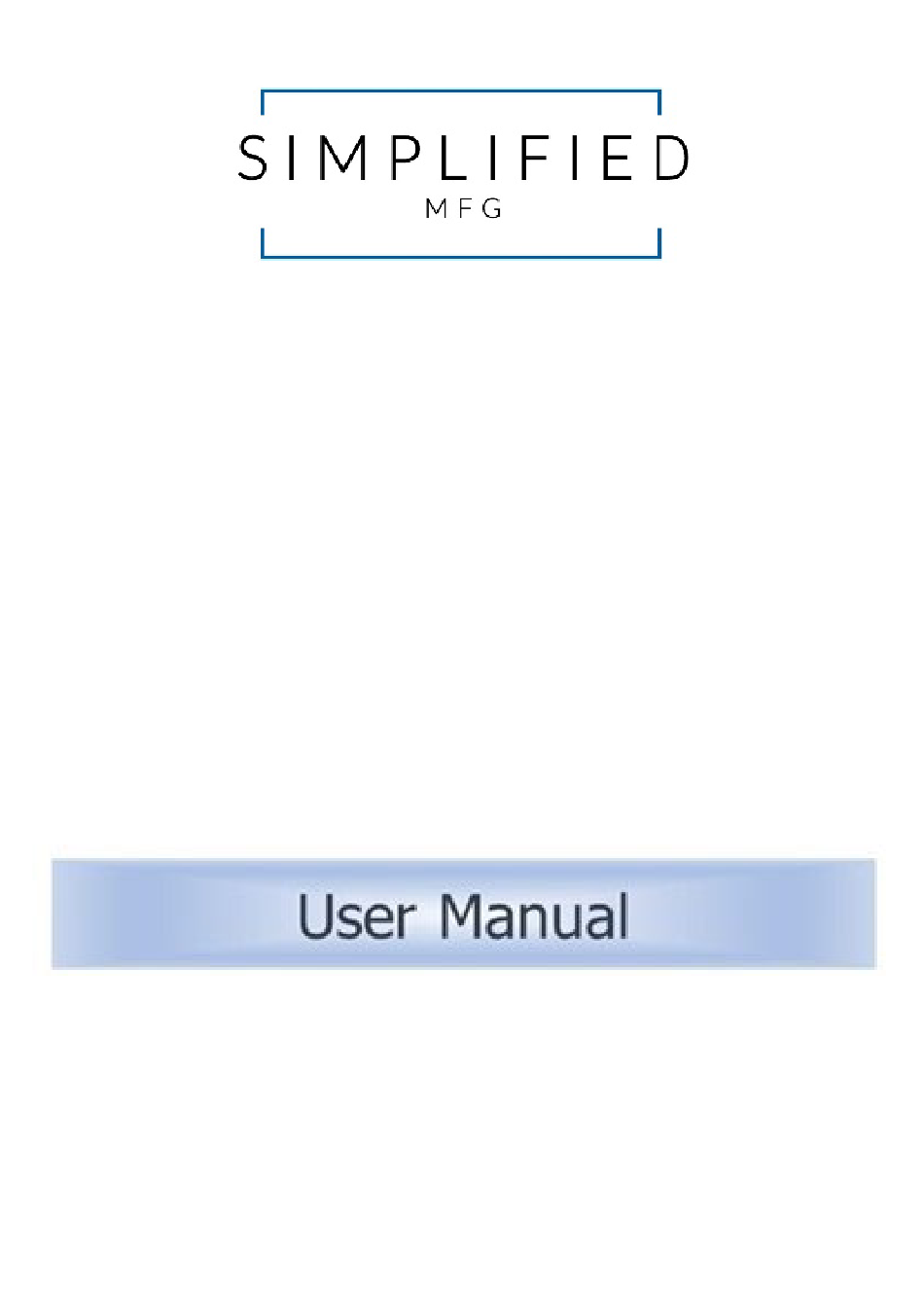

  • Page 1 EXTDA Digital Audio Extender kit for both Optical and Analog formats VER 2.0...
  • Page 2 Thank you for purchasing this device The Simplified MFG EXTDA is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.
  • Page 3: Table Of Contents

    Table of Contents Introduction ..............3 Features ................3 Package Contents ............. 4 Specifications ..............4 Operation Controls and Functions ........6 Application Example ............8 Trouble Shooting…….………………………………………………………9 Warranty……………………………….………………..…………….………10 Contact………………………..………………….……….…….…………….11...
  • Page 4: Introduction

    1. Introduction The EXTDA is an audio extender that will transmit optical and analog audio formats over category cable up to 100m at 192kHZ. Distance can be extended by using lower sampling rates up to 300m. There are optical and RCA analog inputs on the transmitter that coincide with an optical and RCA analog outputs at the receiver.
  • Page 5: Features

    Features Both optical and RCA analog formats are supported • Both can be used at the same time • Supports 192kHZ./96kHZ./48kHZ audio • Built in DAC to convert optical stream to analog • stereo audio that is output via RCA connectors Sample rates supported are 32kHZ., 44.1kHZ, 48kHZ., •...
  • Page 6: Specifications

    3. Specifications Technical Bit Rate by distance 192kHZ. – 100m, 96kHZ. – 150m, 48kHZ. – 300m Digital-to-Digital LPCM, DTS, Dolby Digital, Dolby Audio formats Digital+ Sample Rates 32kHZ., 44.1kHZ., 48kHZ., 96kHZ., 192kHZ. up to 24-bit resolution ESD Protection Human-body Model: ±8kV (Air-gap discharge),...
  • Page 7: Operation Controls And Functions

    Mechanical Housing Metal Enclosure Color Black Dimensions 90mm (3.54”) [W] × 73mm (2.875”) [D] × 20mm (.79”) [H] Weight TX 173g/6.125oz. RX 176g/6.125oz. Power Supply Input: AC100~240V 50/60Hz, Output: DC5V/1A (US/EU standards, CE/FCC/UL certified) Power Consumption 1W (max) Operating 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage -20°C ~ 60°C / -4°F ~ 140°F...
  • Page 8 Number Name Function description Connects the TX to the RX via category Cat Output cable Optical audio input port for audio input Optical In from an optical output (Toslink) (Toslink) Connects to analog audio source Connectors Micro USB Provides power to both units from either RX or TX 5.2 Receiver (RX) TX L/R...
  • Page 9: Application Example

    Application Example 1 Set the audio output to PCM in the menu of the display NOTE: Switch is set to TV/ and the RCA connection will Optical so that the RCA audio output stereo selection will get PCM audio from optical out of display TX L/R TX Optical Optical...
  • Page 10: Trouble Shooting

    7.Trouble Shooting Symptom Possible Cause(s)/Check If Micro USB is plugged in to RX, check power No Power at RX supply and/or USB cable. If powered at TX, examine category cable Same as above but in reverse No Power at TX Output is disabled at display or toslink cable No Digital Audio has failed.
  • Page 11: Warranty

    (starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary.
  • Page 12: Contact

    9. Contact Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 © Copyright Simplified MFG 2022...
