EX1L
HDMI 2.0b (18Gbps) 4K HDR/
®
DolbyVision
120m Extender Set
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX1L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Simplified MFG EX1L

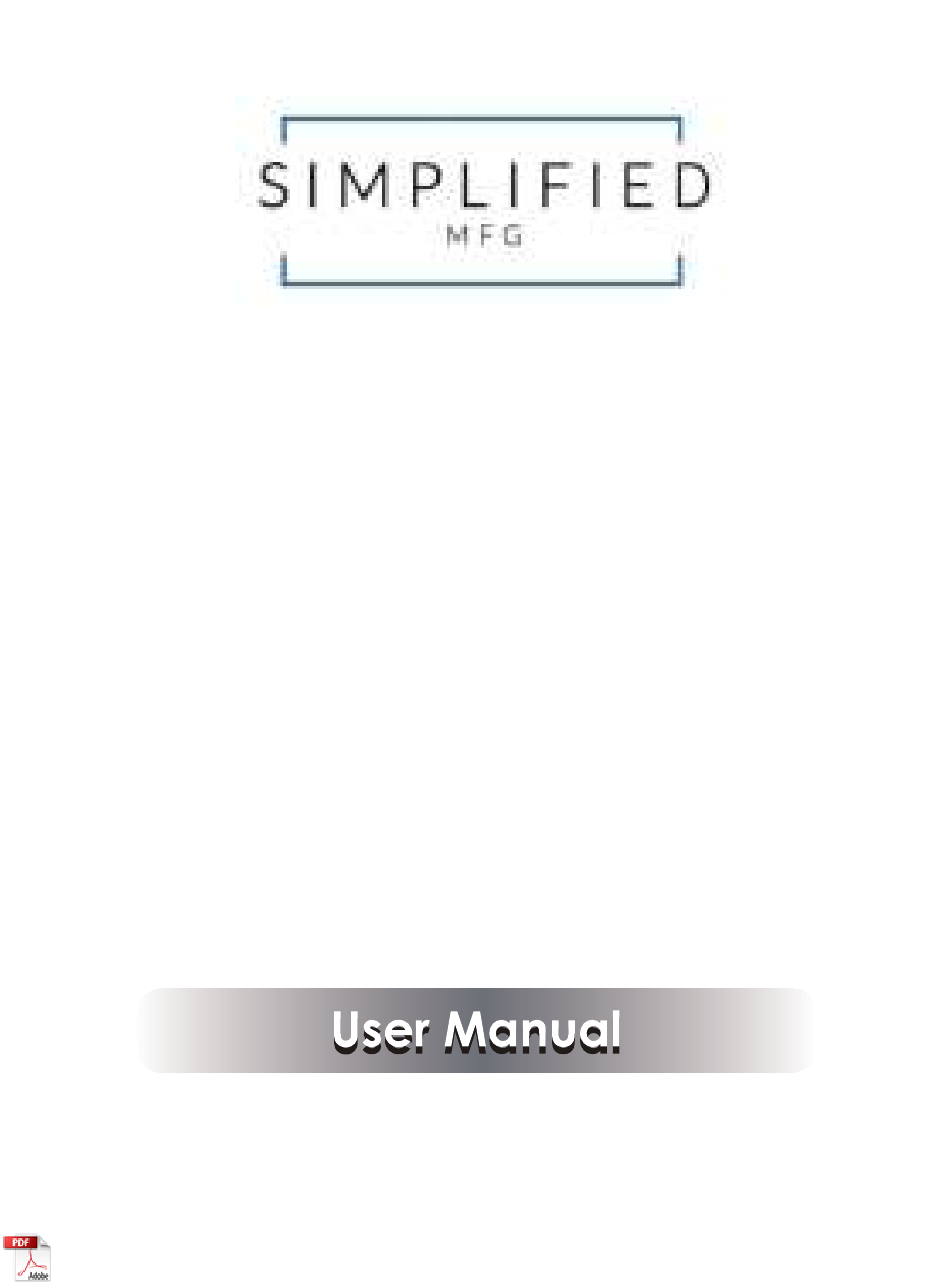

  • Page 1 EX1L HDMI 2.0b (18Gbps) 4K HDR/ ® DolbyVision 120m Extender Set VER 1.0...
  • Page 2: Table Of Contents

    Thank you for purchasing this Device The Simplified MFG EX1L was designed to provide years of reliable service. At Simplified MFG we want your experience with this device to be the best possible and are committed to helping achieve that experience.
  • Page 3: Introduction

    1. Introduction This EX1L 18Gbps HDMI Extender can extend an HDR/Dolby Vision™ audio/video, RS-232, bi-directional IR, and the distance is up to 394ft /120m and a 1080p signal up to 150m (492ft) between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2.
  • Page 4: Package Contents

    3. Package Contents Item 18Gbps HDMI over HDBaseT Extender (Transmitter) 18Gbps HDMI over HDBaseT Extender (Receiver) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) Mounting Ears 3-pin Phoenix connectors 24V/1A Locking Power adapter User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b...
  • Page 5 Connections Inputs: 1x HDMI Type A [19-pin female] 1x Service [Mini-USB, Update port] Outputs: 1x HDMI Type A [19-pin female] Transmitter 1 x Audio L/R stereo [3.5mm Mini-jack] 1x HDBT Out [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR Out [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] Inputs: 1x HDBT In [RJ45, 8-pin female]...
  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1Transmitter Panel SERVICE DC 24V AUDIO OUT HDMI OUT HDMI IN IR IN IR OUT RS-232 5 4 6 Name Function Description 1 Power LED Red LED will be illuminated when the transmitter has power. 2 SERVICE port Firmware update port.
  • Page 7: Receiver Panel

    3-pin Phoenix connector for RS-232 command transmission. RS-232 The RS-232 command will pass-through from transmitter to receiver or receiver to transmitter. 5.2Receiver Panel SERVICE DC 24V SPDIF OUT AUDIO OUT HDMI OUT IR IN IR OUT RS-232 5 4 6 Name Function Description 1 Power LED...
  • Page 8: Ir Pin Definition

    IR IN IR port input for receiving the signal of IR remote. IR port output for control of display device. This IR output IR OUT signal is from IR IN port of transmitter. 3-pin pluggable connector for RS-232 command RS-232 transmission.
  • Page 9: Ir System Diagram

    5.4 IR System Diagram DVD remote TV remote IR Receiver cable IR Receiver cable CAT 6/6a cable DC 24V DC 24V SPDIF OUT AUDIO OUT HDMI OUT IR IN IR OUT RS-232 AUDIO OUT HDMI OUT HDMI IN IR IN IR OUT RS-232 Transmitter...
  • Page 10: Application Example

    6. Application Example HDMI Matrix with DVD or Blu-ray Player RS-232 function Transmitter DC 24V AUDIO OUT HDMI OUT HDMI IN IR IN IR OUT RS-232 IR Blaster IR Receiver Power Supply 2.0 Speakers IR Receiver CAT 6/6a cable UHDTV IR Blaster Receiver DC 24V...
  • Page 11: Warranty And Contact Information

    A purchase receipt or other proof of purchase date is required for the limited warranty service. Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210...
  • Page 12 DAC1 HDMI with any audio format Optical or Stereo Sound Bar Sound Bar 3. Audio Extraction with no conversion via audio breakout on RX of EX1L HDMI Extender EX1L RX Category cable EX1L RX HDMI HDMI Optical or Stereo 4. Fully uncompressed audio extraction from display...
