Summary of Contents for Simplified MFG EXARC

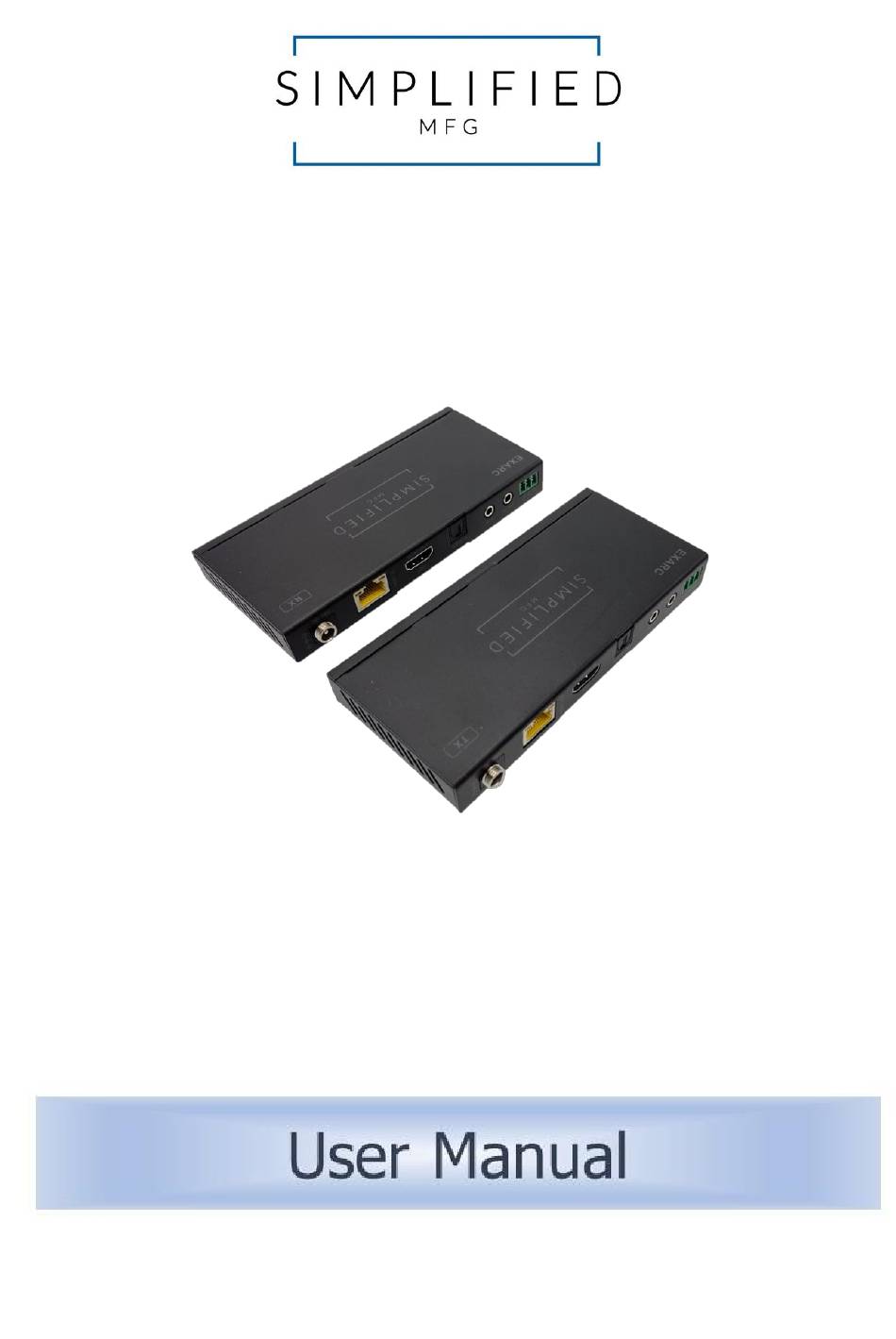

- Page 1 EXARC HDMI 2.0b (18Gbps) 40m HDMI Extender with ARC and Optical audio return VER 2.1...
-
Page 2: Table Of Contents
EXARC extender is equipped with two-way IR and RS232 which allows for source and display control. The EXARC extender is a great way to bring audio back from the display to the TX end either through the HDMI (ARC) or via optical S/PDIF. This transmission is independent of... -
Page 3: Features
2. Features • HDMI 2.0b and HDCP 2.2 compliant • Supports input and output video resolution up to 4k2k@60Hz 4:4:4 up to 18Gbps • Supports HDR/HDR+/DolbyVision™ • Distance up to 131ft/40m @ 4k - 230ft/70m @1080p • Brings ARC or optical S/PDIF from RX back to TX •... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps HDR Formats HDR/HDR10+/DolbyVision™ Video Resolution Up to 4K60Hz 4:4:4 Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4) HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby... -
Page 5: Operation Controls And Functions
Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet. (Note: The EXARC can be powered from either the RX or the TX by 24V/1A power adapter, only one supply is needed) EDID Switch is set to copy the display’s EDID. STD is a 1080p setting designed to help in... -
Page 6: Receiver Panel
DC 24V Plug DC 24V/1A power supply into the unit and connect the adapter to an AC outlet. (Note: The EXARC can be powered from either the RX or the TX by 24V/1A power adapter, only one supply is needed) The audio selection switch is set to HDMI ARC, in this position, the audio from the eARC/ARC input on the display will be output via HDMI in or optical out on the TX. -
Page 7: Ir Pin Definition
5.3 IR PIN Definition IR Use Example:... -
Page 8: Application Example
Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary. -
Page 9: Contact Information
8. Contact Information Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 © Copyright Simplified MFG 2023...
