Simplified MFG EXUSB3.0 User Manual

Usb3.0/3.1/3.2 over category cable extender kit

Advertisement

Quick Links

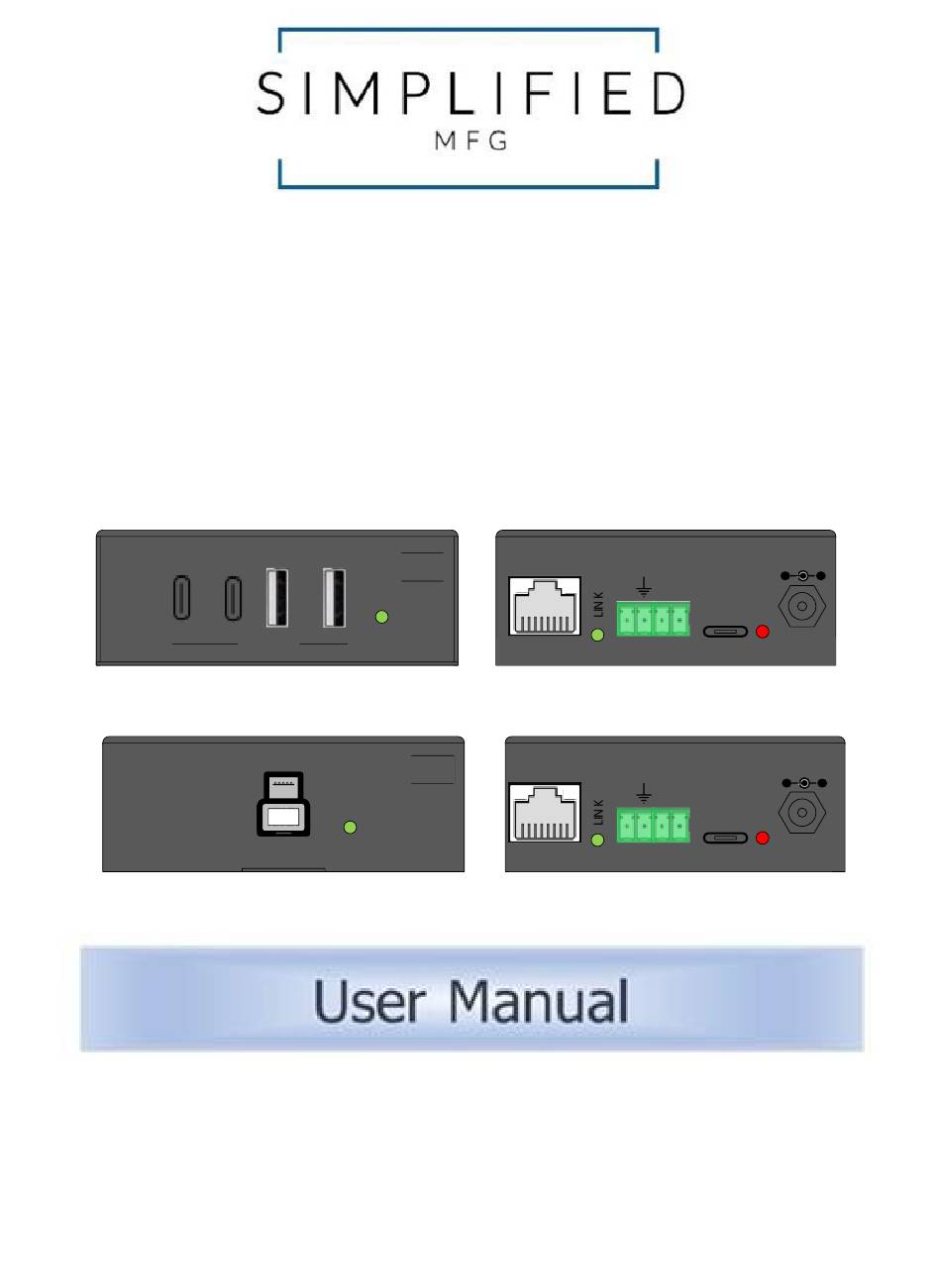

EXUSB3.0
USB3.0/3.1/3.2 over
Category cable extender kit
1
2
3
4
1.5A
1.0A
1.5A
1.0A
DE VICE S
USB HOST
USB
RX
USB
HDBT IN
TX
HDBT OUT
VER 1.1
TX
RX IO
SERVICE
RS-232 FSYNC
DC24V
TX
RX IO
SERVICE
RS-232 FSYNC
DC24V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXUSB3.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Simplified MFG EXUSB3.0

  • Page 1 EXUSB3.0 USB3.0/3.1/3.2 over Category cable extender kit RX IO SERVICE 1.5A 1.0A 1.5A 1.0A DE VICE S HDBT IN RS-232 FSYNC DC24V RX IO SERVICE USB HOST HDBT OUT RS-232 FSYNC DC24V VER 1.1...
  • Page 2: Table Of Contents

    Thank you for purchasing this device The Simplified MFG EXUSB3.0 is designed to provide years of reliable service. At Simplified MFG, we want the experience with this device to be the best possible and are committed to helping achieve that experience.
  • Page 3: Introduction

    The EXUSB3.0 is an USB3.0 extender that will transmit USB3.0 signals up to 100m (328ft.). Common uses are USB 3.0/.1/.2 camera extension and control. The EXUSB3.0 is a reliable way to extend USB devices up to the 3.2 format as far as 100m (328ft.) TX has one USB 3.0 Type-B input, one FSYNC GPIO Output, and...
  • Page 4: Package Contents

    3. Package contents 1x Transmitter 1x Receiver 2x 4-Pin Phoenix connector 1x 24V/2A Power Supply 1x Package of mounting hardware (4 ears, 8 screws) 1x Manual 4. Specifications Technical USB Protocol Up to USB 3.0 Transmission Rate Up to 5 Gbps Transmission Distance 100m (328ft.) ESD Protection...
  • Page 5 Connection Input: 1× USB-B Female Output:1x HDBaseT (RJ-45) Transmitter Control:1x RS-232 (3-Pin Phoenix) 1x FSYNC (1-Pin Phoenix) 1x USB-C Update Port Input: 1× HDBaseT (RJ-45) Output:2x USB Type-A 2x USB-C Receiver Control:1x RS-232 (3-Pin Phoenix) 1x FSYNC (1-Pin Phoenix) 1x USB-C Update Port Mechanical Housing Metal Enclosure...
  • Page 6: Operation Controls And Functions

    5.Operation Controls and Functions Transmitter (TX) RX IO SERVICE USB HOST HDBT OUT RS-232 FSYNC DC24V ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ ❾ Name Function description Connects to PC/Host USB-B Host Indicates status of USB connection • On - USB3.0 signal detected USB LED •...
  • Page 7 5.2 Receiver (RX) RX IO SERVICE 1.5A 1.0A 1.5A 1.0A DE VICE S HDBT IN RS-232 FSYNC DC24V ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ ❾ ❿ Name Function description Connects to client USB-C devices, 5V /1.5 and 1.0A USB 1/2 Connects to client USB devices, 5V /1.5A and 1.0A USB 3/4...
  • Page 8: Application Example

    Application Example...
  • Page 9: Warranty

    (starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary.
  • Page 10: Contact

    8. Contact Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 © Copyright Simplified MFG 2024...
