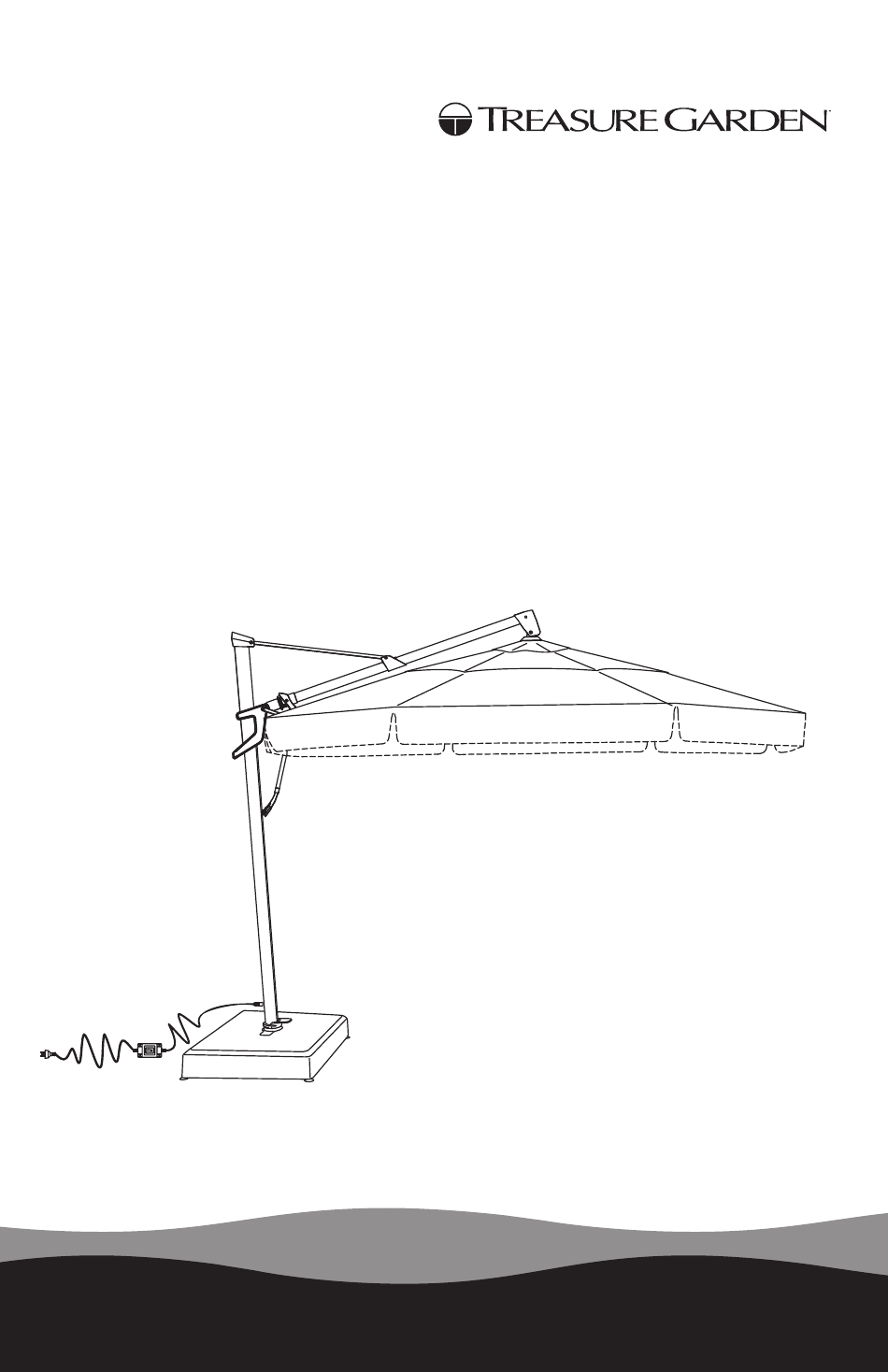

- Page 1 AKZP13LX 13’ Starlux Cantilever Assembly and Operation Guide...
- Page 2 Thank you for purchasing Treasure Garden’s Starlux AKZ Plus Cantilever Umbrella. Please remove all contents from the package, inspect and review checklist. CAUTION: To reduce personal injury and damage to your umbrella, read and follow this assembly and operation guide. We recommend a two-person team for assembly and disassembly.
- Page 3 AKZP PART LIST Part Description Qty. AKZP Main Frame Crank Lift Handle Hub Bolts Washers 8mm Hexagon Wrench 6mm Hexagon Wrench 2.5mm Hexagon Wrench IMPORTANT: Prior to assembly it is important to decide on the location of the umbrella. • Allow ample height to avoid damage to your umbrella during assembly and usage. •...
- Page 4 NOTE: REFER TO SEPARATE BASE-13 OR MOUNT KIT MANUAL FOR BASE ASSEMBLY PRIOR TO PROCEEDING. S T E P 1 Umbrella Assembly Two-persons recommended for team lift and to complete assembly. With base cover in place or mount kit installed, insert the main frame onto the installed rotating hub (Fig.
- Page 5 S T E P 2 Operation To Open Canopy: Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle midway up main frame (Fig. 4). Release grip handle to lock into place. Slowly turn the crank lift handle clockwise to open the umbrella (Fig.
- Page 6 Turn umbrella lights on by pressing button located under plug (Fig. 11). Lights will initially turn on high setting (Fig. 12). For low setting, press button once more. To turn off lights, press button a third time. (Fig. 11) (Fig. 12) When lights are not in use, unplug power supply from wall and umbrella.
- Page 7 To Tilt Canopy Horizontally: IMPORTANT: PRIOR TO USING HORIZONTAL AND VERTICAL TILT FEATURE. To avoid personal injury or damage to the umbrella, make sure the area behind you is clear and free from any furniture or structure. Make sure canopy is fully OPEN. Position yourself in front of the tilt lever and pull loop lock from main frame track (Fig.
- Page 8 To Close Canopy: Position yourself behind umbrella. Squeeze the main frame grip handle and slide handle midway down main frame (Fig. 20). Release grip handle to lock into place. Slowly turn the crank lift handle counter-clockwise until the canopy is fully closed (Fig. 21). Squeeze main frame grip handle to release lock and continue to slide grip handle downward SLOWLY until umbrella is fully closed in an upright position (Fig.
- Page 9 To Rotate Umbrella with the 360° Rotating Hub Swivel: Place your foot on the foot pedal of the rotating hub and step-on the foot pedal to release rotating lock (Fig. 23). Place one hand on the main frame and one hand on the tilt lever (Fig.
- Page 10 Features To ATTACH Umbrella Light: (sold separately) Loosen the light adapter built into the umbrella runner by turning counter-clockwise (Fig. 26). After loosening, pull down light adapter post (Fig. 27) to attach the umbrella light (sold separately). To OPEN and ATTACH Light: Open the umbrella light by holding firmly with one hand and then depress the clamp release button with the other hand to release the clamp lock.
-
Page 11: Care And Maintenance
S A F E T Y P R E C A U T I O N S : • When adjusting the umbrella, make sure that no person(s) or item(s) are close to the umbrella. This is important to prevent injury or material damage. •... -
Page 12: Warranty
In the event that warranted factory tornadoes, and storms) are not covered service is required, Treasure Garden will by this warranty. assume the responsibility of the return www.treasuregarden.com ©2018 Treasure Garden, Inc. - All Rights Reserved. 10/18...
