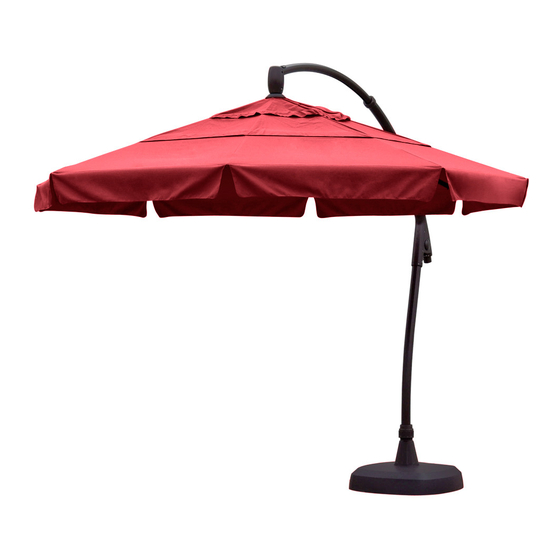

- Page 1 Assembly and Operation Guide AG28 CANTILEVER AG28RK 11’ octagon...
- Page 2 Thank you for purchasing Treasure Garden’s AG28 Cantilever. Please remove all contents from the package, inspect and review checklist. Some parts may be included in the styrofoam packaging. Do not discard any packaging or box until assembly is complete. CHECKLIST...
-
Page 3: Base Assembly
IMPORTANT: Prior to assembly it is important to decide on the location of the umbrella. · Allow ample height to avoid damage to your umbrella during assembly and usage. · Choose a location that is level and sturdy. · Avoid any sloping of soft ground. ·... - Page 4 ASSEMBLE COLLAR BASE STEM STEP Re-insert the base stem into the base shell. Turn collar base stem in a clockwise motion to engage threading (Fig. 5). Insert steel wrench provided into holes on top of stem and tighten (Fig. 6). NOTE: To avoid damage to your base, do not over-tighten base stem. Insert clamp into base stem (Fig.
-
Page 5: Assemble Frame
ASSEMBLE FRAME STEP To prevent scratching frame during assembly, lay umbrella parts on soft surface. Remove packaging from umbrella. NOTE: Keep canopy structure and frame arm strapped. Attach the bottom pole into the housing, bottom pole only fits one way. Line up holes and secure the two bolts with hexagon wren ch (Fig. - Page 6 OPENING UMBRELLA STEP To Open and Extend Arm: Insert crank handle fully into socket A (Fig. 13), crank handle will snap into place, then slowly crank the handle clockwise until crank handle stops and arm is fully extended outward. CAUTION: Arm must be fully extended before retracting. Do not over crank, as it will damage your umbrella.
- Page 7 ROTATING UMBRELLA STEP Pull out the locking rotation knob to disengage lock (Fig. 16) and place second hand on Socket B crank system simultaneously to rotate in either direction (Fig. 17). After desired location is reached, release rotation knob to lock into one of the 12 preset locking positions. (Fig.
- Page 8 LIGHT ADAPTER FEATURE STEP To ATTACH Umbrella Light: (sold separately) Loosen the light adapter built into the umbrella runner by turning counter-clockwise (Fig. 18). After loosening, pull down light adapter post (Fig. 19) to attach the umbrella light (sold separately). To OPEN and ATTACH Light: Open the umbrella light by holding firmly with one hand and then depress the clamp release button with the other hand to release the clamp lock.
-
Page 9: Care And Maintenance
CLOSING UMBRELLA STEP NOTE: Prior to closing ensure that the canopy is in a level (non-vertical tilt) position. Insert crank handle fully into socket B (Fig. 22), crank handle will snap into place, then slowly crank the handle counter-clockwise until canopy is completely closed. Insert crank handle fully into socket A (Fig. -
Page 10: Safety Precautions
CARE AND MAINTENANCE • When not in use, close and cover umbrella with provided protective cover. • Allow a wet canopy to dry while in open position, but do not leave unattended. • If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge. •... - Page 11 Simply contact your original authorized RUST: Rust is a natural part of the aging Treasure Garden dealer with a description process of steel or iron based materials, of the defect. The dealer will verify the and is therefore NOT considered a defect.
- Page 12 ©2021 Treasure Garden, Inc. - All Rights Reserved. v.05.19.21...
