The purpose of this guide is to describe:
1. Describe attachment of Arm to 38mm Post.
2. Attachment of Camlock Mounting Plate.
3. Attachment of table top mount.
4. Attachment of Down Post.
5. Mounting of M-Series Arm.
WARNING: USE OF MOUNTING HARDWARE AND MONITORING COMPONENTS OTHER THAN
THOSE DESCRIBED IN THIS DOCUMENT MAY RESULT IN SERIOUS INJURY DUE TO TIPPING OF
THE ANESTHESIA MACHINE.
WARNING: ALL DEVICES AND MOUNTING EQUIPMENT SHOULD BE POSITIONED INWARD, CLOSE
TO THE ANESTHESIA MACHINE, DURING TRANSPORT.
Parts Reference
The parts list below includes the parts and hardware that will be used in this installation procedure.
Item #
Description
1
M-Series Arm with 38mm Clamps
2
#10-32 x 7/8" SHCS
3
Vertical FMS Mount
4
M6 x 25mm PHMS
5
M6 x 8mm FHMS
6
M6 x 12mm FHMS
7
Spacer, MP20/30
8
M6 x 16mm Pan Head Machine Screw (PHMS)
9
5/32'' Hex Wrench
10
1/8'' Hex Wrench
* See "Mounting MP20/30 on non-Table Top Mount" (page 6) for use of
these parts.
Tools Required: Phillips screwdriver (not provided), 5/32'' and 1/8'' hex wrenches (provided).

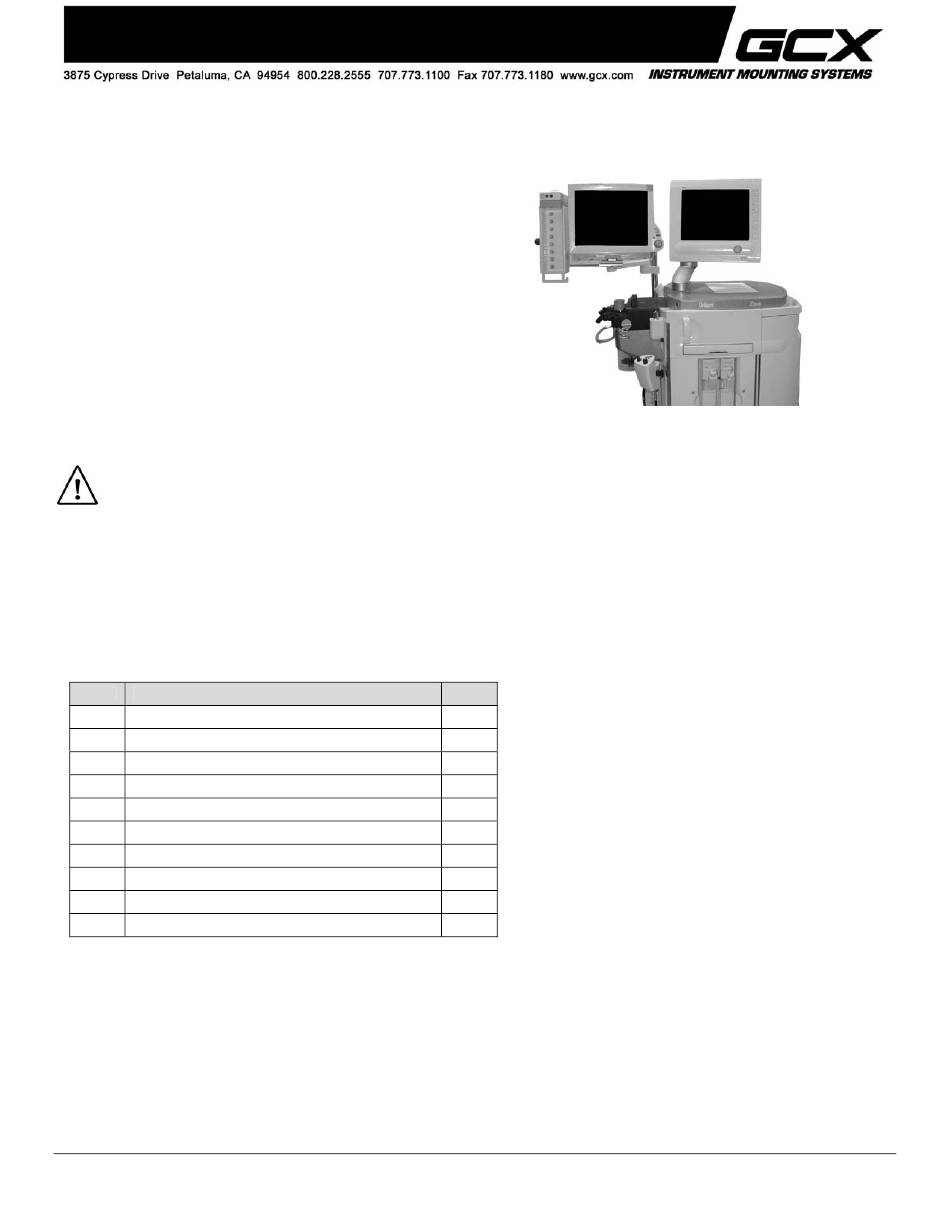

Installation Guide
Mounting Kit – Philips MP20/30/40/50/60/70 on Draeger Zeus
Qty
1
2
1
3
2
1
1
2
1
1
DU-AG-0018-96 Rev A 10/26/05 GCX Corp Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GCX AG-0018-96
Summary of Contents for GCX AG-0018-96
- Page 1 1/8'' Hex Wrench * See "Mounting MP20/30 on non-Table Top Mount" (page 6) for use of these parts. Tools Required: Phillips screwdriver (not provided), 5/32'' and 1/8'' hex wrenches (provided). DU-AG-0018-96 Rev A 10/26/05 GCX Corp Page 1 of 4...
- Page 2 1. Fasten the Philips-supplied Table Top Mount to the Mounting Adapter (front end of Arm) with one (1) M6 x 12mm FHMS and two (2) M6 x 8mm FHMS. Mounting Adapter Table Top Mount *Supplied by Philips M6 X 8mm FHMS (2) M6 X 12mm FHMS (1) DU-AG-0018-96 Rev A 10/26/05 GCX Corp Page 2 of 4...
- Page 3 2. Insert two (2) M6 x 16mm PHMS through bottom of Mounting Adapter and thread into mounting holes in bottom of monitor (right). Mounting Adapter Spacer M6 x 16mm PHMS (2) DU-AG-0018-96 Rev A 10/26/05 GCX Corp Page 3 of 4...
- Page 4 Dry the arm thoroughly after cleaning. CAUTION: GCX makes no claims regarding the efficacy of the listed chemicals or processes as a means for controlling infection. Consult your hospital’s infection control officer or epidemiologist. To clean or sterilize mounted instruments or accessory equipment, refer to the specific instructions delivered with those products.
