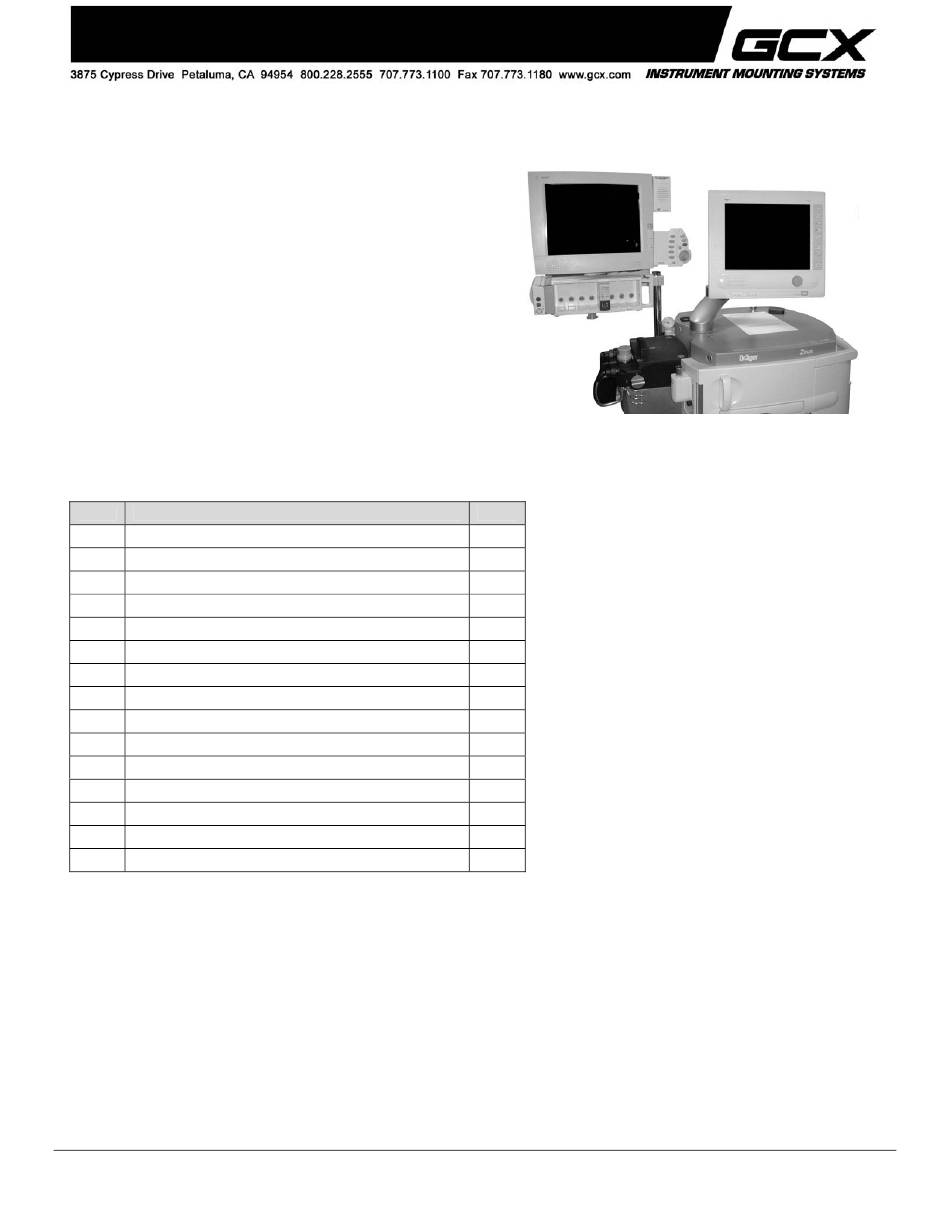

GCX AG-0019-07 Installation Manual

The purpose of this guide is to:
1. Describe attachment of Down Post to Arm.
2. Describe attachment of Arm to 38mm Post.
3. Describe mounting of FMS.
4. Describe attachment of Zeus Channel Kit.
5. Describe attachment of CPU Flush Mount.
6. Describe operation/adjustment of M-Series Arm.
Parts Reference
The parts list below includes parts and hardware that will be used in this installation procedure.
Item # Description
1 M-Series Articulating Arm Assembly with 38mm Clamps
2 #10-32 x 7/8" SHCS
3 3.5'' Down Post
4 #10-32 x 3/8'' Socket Head Cap Screw
5 Zeus Vertical Channel Kit
6 M6 x 16mm SHCS
7 CPU Flush Mount Pan
8 M3 x 8mm PHMS
9 M3 Flat washers
10 CPU Spill Shield
11 #8-32 x 5/16" PHMS
12 Molded Slide
13 #8-32 x 5/8" PHMS
14 5/32'' Hex Key
15 1/8'' Hex Key
Tools Required: Phillips screwdriver, 5/32'' and 1/8'' hex keys (provided).

Attaching Down Post to Arm

Fasten 3.5'' Down Post to bottom of M-Series Arm in accordance with separate GCX Mounting Assembly Installation
Guide titled: M and VHM Series Down Post Kit (DU-WMM-0006-01).

Mounting M-Series Arm on 38mm Post

1. Using the 5/32'' hex wrench provided, mount Arm on post by fastening Clamping Block to Arm with two (2) #10-32 x
7/8'' SHCS as shown below.
GCX Mounting Assembly Installation Guide

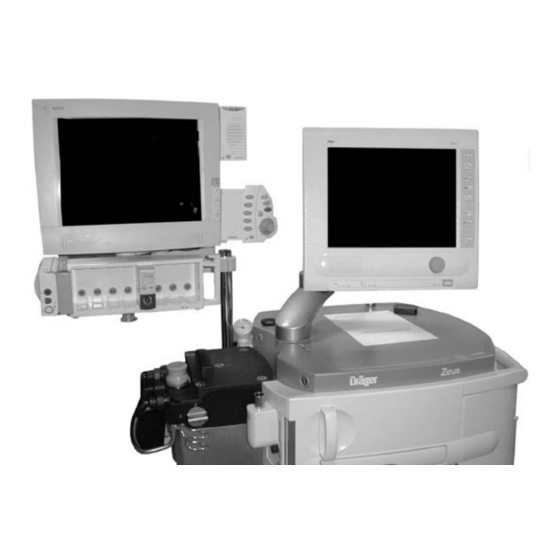

Philips MP90 (M8010A) Mounting Kit for Drager Zeus
DU-AG-0019-07 Rev A 10/26/05 GCX Corp Page 1 of 5
Qty
1
2
1
3
3
4
1
4
4
1
2
2
8
1
1
