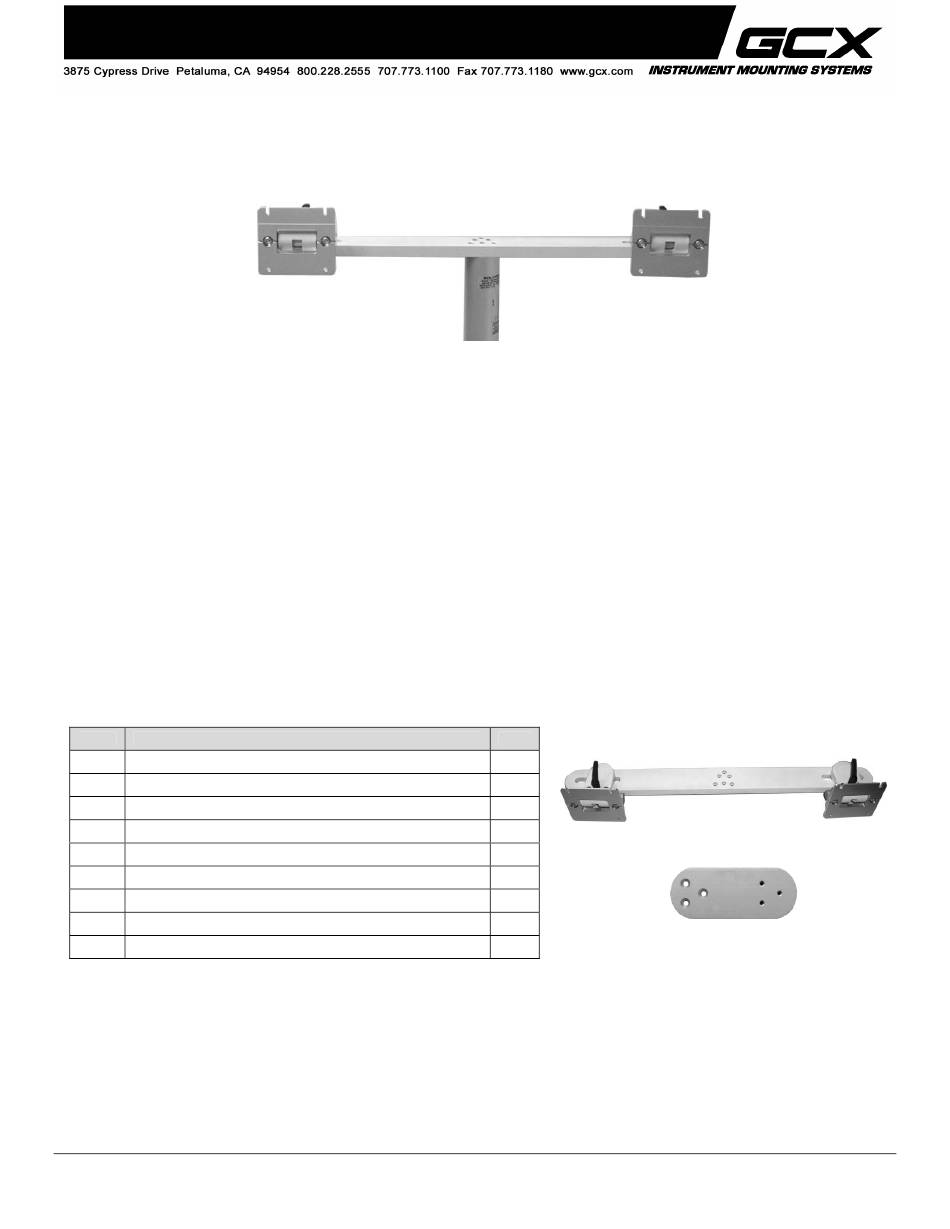

GCX FLP-0008-11 Installation Manual

Dual Flat Panel Display Mount with VESA Mounting Plates for Posts (1.25'' or 2''),
VHM or M-Series Arm, or Variable Height Roll Stand (VHRS) Post
Installation Note: This installation kit allows mounting of two (2) VESA-compatible flat panel displays with enclosures up
to 21'' in width (not diagonal measurement).
The purpose of this guide is to:
1. Describe attachment of Display Bar to 1.25'' or 2'' Post.
2. Describe attachment of Display Bar to VHM and M-Series Arms.
3. Describe attachment of Display Bar to VHRS Post.
4. Describe mounting of display on VESA Mounting Plate.
5. Describe adjustments to Display Bar.

Parts Reference

The parts list below includes parts and hardware that will be used in this installation procedure (see photos for parts;
hardware not shown).
Item # Description
1 Dual Display Bar
2 #10-32 x 1-1/8'' Socket Head Cap Screw (SHCS)
3 Extension, 5'' (for VHM Applications)
4 #10-32 x 3/4'' Flat Head Machine Screw (FHMS)
5 #10-32 x 3/4'' SHCS
*6 75/100mm Display Mounting Kit (includes hardware)
7 M4 x 6mm Pan Head Machine Screw (PHMS)
8 M4 x 10mm PHMS
9 5/32'' Hex Wrench
* Required for displays with 100 x 100mm mounting patterns.
Tools Required: Phillips screwdriver, 1/2'' [13 mm] wrench, and 5/32'' hex wrench.
Installation Guide

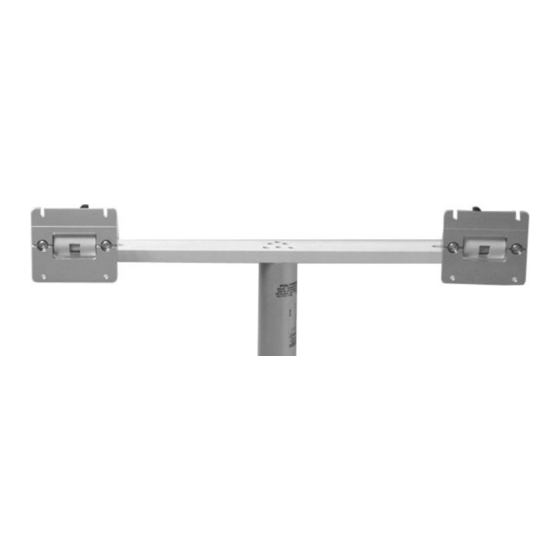

Display Mount Shown on 2'' Post
Qty
1
3
1
3
3
2
8
8
1
DU-FLP-0008-11 Rev B 2/20/08 GCX Corp Page 1 of 3
Dual Display Bar
5'' Extension
