The purpose of these instructions is to:
1. Describe attachment of Storage Bay to Roll Stand.
2. Describe attachment of optional Handle to Storage Bay.
3. Describe operation of optional Sliding Laptop Tray.
Attachment of Storage Bay to Roll Stand
1. Line up the three (3) hole pattern on the Roll Stand with the three (3) hole pattern on the Laptop Tray Bracket and
secure using the supplied #10-32 x 9/16" FHMS (3).
Roll Stand
2. Insert the four (4) studs on the bottom of the Storage Bay into the four (4) holes on the Laptop Tray Bracket and
secure using the supplied #10-32 Esna Nuts (4).
GCX Mounting Assembly Installation Guide

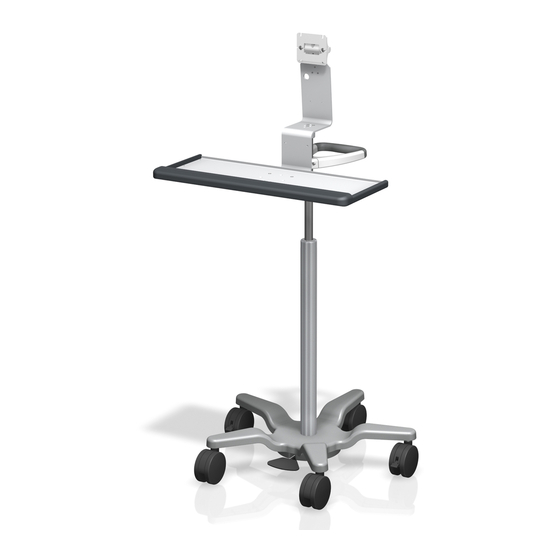

Variable Height Roll Stand with Storage Bay
Storage Bay
#10-32 Esna Nuts (4)
Laptop Tray Bracket
DU-RST-0003-15 Rev A 6/28/02 GCX Corp Page 1 of 2
#10-32 x 9/16" FHMS (3)
