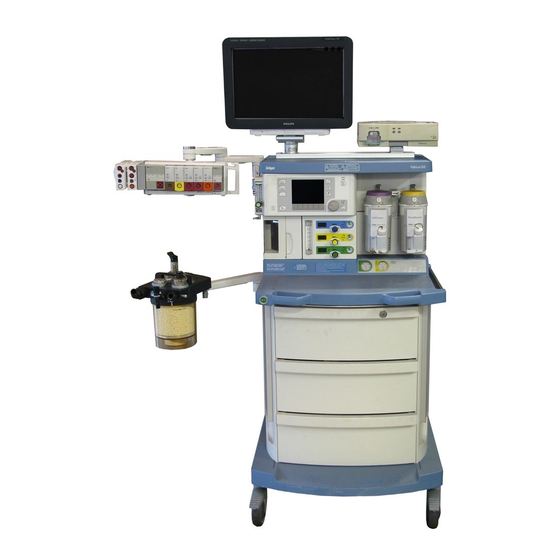

Top Shelf Mounting Kit for Mounting Philips Intellivue MP20/30/40/50/60/70
The purpose of this guide is to describe installation of mounting assemblies on the anesthesia machine.
WARNING: USE OF MOUNTING HARDWARE AND MONITORING COMPONENTS OTHER THAN
THOSE DESCRIBED IN THIS DOCUMENT MAY RESULT IN SERIOUS INJURY DUE TO TIPPING OF
THE ANESTHESIA MACHINE.
WARNING: ALL DEVICES AND MOUNTING EQUIPMENT SHOULD BE POSITIONED INWARD, CLOSE
TO THE ANESTHESIA MACHINE, DURING TRANSPORT.
Installer: When installation is completed, provide these instructions and all related documentation to the end
user for future reference.
Mounts for MP20/30/40/50/60/70
Low Profile Column for Monitor
(pages 3 - 4)
Installation Guide
On Dräger Fabius GS Anesthesia Machine
Top Plate/Channel
(pages 2 - 3)
DU-AG-0021-100 Rev A 4/15/08 GCX Corp. Page 1 of 6
Horizontal Mount for G5
(page 5)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GCX AG-0021-100
Summary of Contents for GCX AG-0021-100

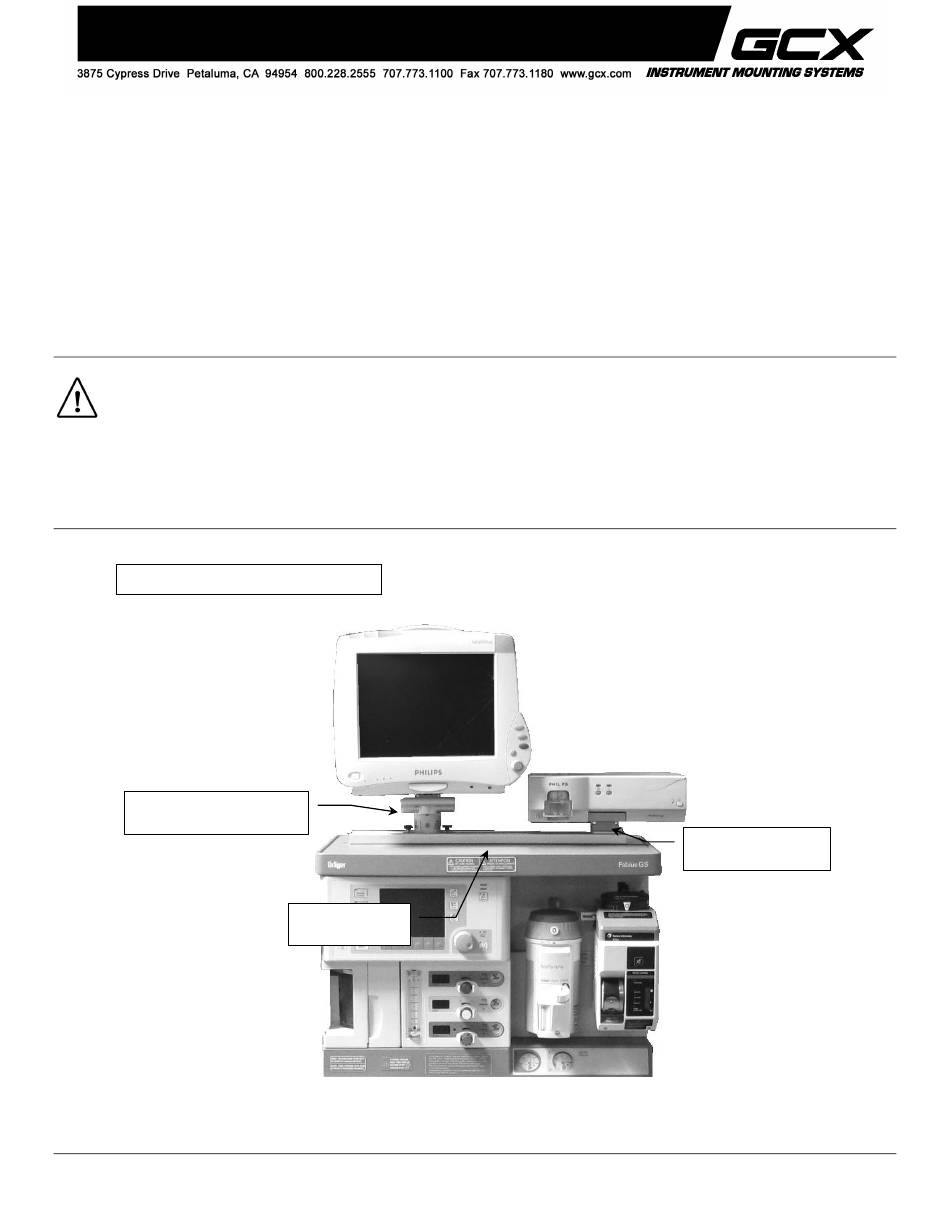

- Page 1 Installer: When installation is completed, provide these instructions and all related documentation to the end user for future reference. Mounts for MP20/30/40/50/60/70 Low Profile Column for Monitor (pages 3 - 4) Horizontal Mount for G5 (page 5) Top Plate/Channel (pages 2 - 3) DU-AG-0021-100 Rev A 4/15/08 GCX Corp. Page 1 of 6...
- Page 2 3. Align four (4) mounting holes in Top Plate with corresponding holes in top of machine (drilled in step 2). Fasten Top Plate to machine with four (4) M5 x 30mm Pan Head Machine Screws (PHMS) Top Plate/Channel M5 x 30mm PHMS (4) DU-AG-0021-100 Rev A 4/15/08 GCX Corp. Page 2 of 6...
- Page 3 (right). See "Mounting the Monitor on the Arm" (page 6) for instructions specific to this type of mounting plate. Do Not Attach Table Top Mount if MP20/30 Monitor is Equipped with This Mounting Interface DU-AG-0021-100 Rev A 4/15/08 GCX Corp. Page 3 of 6...
- Page 4 Spacer Spacer 2. Insert two (2) M6 x 16mm PHMS through bottom of Mounting Adapter and thread into mounting holes in bottom of monitor. M6 x 16 mm PHMS (2) DU-AG-0021-100 Rev A 4/15/08 GCX Corp. Page 4 of 6...
- Page 5 3. Tighten two (2) Phillips-head set screws at rear of Horizontal Mount to prevent movement of Mount (below right). See page 5 for photo of Horizontal Channel Mount installed on top of Fabius GS. Insert Horizontal Mount In Channel Set Screws (Rear of Mount) DU-AG-0021-100 Rev A 4/15/08 GCX Corp. Page 5 of 6...
- Page 6 Cleaning the Mounting Assembly CAUTION: GCX makes no claims regarding the efficacy of the listed chemicals or processes as a means for controlling infection. Consult your hospital’s infection control officer or epidemiologist. To clean or sterilize mounted devices or accessory equipment, refer to the specific instructions delivered with those products.
