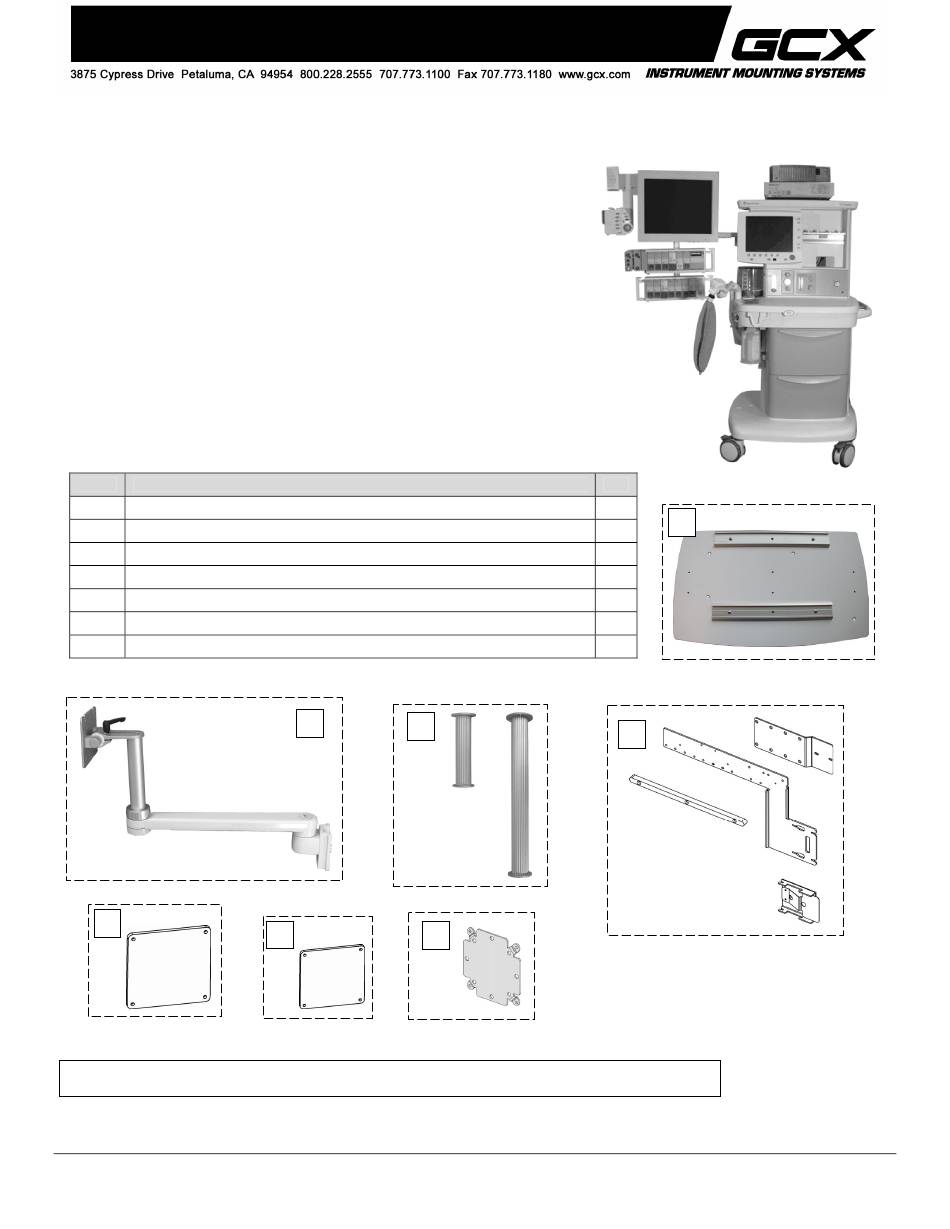

Philips MP90 Mounting Kit with 16'' M-Series Arm for Datex Ohmeda Avance Anesthesia Machine
The purpose of this guide is to describe installation of the Mounting Kit
on the anesthesia machine.
Parts Reference
The following separate installation kits comprise the MP90 installation
kit (hardware not shown):
Item #
Description
1
M-Series Arm (16'' Arm with 6'' Riser)
2
Down Post Kit (6'' and 12'' Posts)
3
Top Plate/Camlock Rail Assembly (includes hardware & installation guide)
4
Display/Remote Speedpoint Mounting Kit (includes hardware & installation guide)
5
VESA Mounting Adapter (includes hardware & installation guide)
6
Spacer, 15'' Display
7
Spacer, 17'' Display
7
Tools required: Refer to separate installation guides for installation kits shown on this page.
Installation Guide
1
2
6
5
Qty
1
3
1
1
1
1
1
1
4
DU-AG-0019-10 Rev A 3/20/06 GCX Corp Page 1 of 6
Advertisement
Related Manuals for GCX AG-0019-10
Summary of Contents for GCX AG-0019-10
- Page 1 Display/Remote Speedpoint Mounting Kit (includes hardware & installation guide) VESA Mounting Adapter (includes hardware & installation guide) Spacer, 15'' Display Spacer, 17'' Display Tools required: Refer to separate installation guides for installation kits shown on this page. DU-AG-0019-10 Rev A 3/20/06 GCX Corp Page 1 of 6...
- Page 2 Threaded Mounting Holes (4) Base Plate/Camlock Rail Assembly Mounting Devices in Camlock Rails Mount EGM in camlock rails according to Philips mounting instructions. CPU may be mounted on top of EGM as shown. DU-AG-0019-10 Rev A 3/20/06 GCX Corp Page 2 of 6...
- Page 3 1. Insert Slide (rear of Arm) in top of channel and guide to bottom of channel. Using the 1/8'' hex wrench provided, tighten two (2) socket head set screws at bottom of Slide. Tighten Set Screws DU-AG-0019-10 Rev A 3/20/06 GCX Corp Page 3 of 6...
- Page 4 VESA Mounting Adapter from Mounting Kit for 75/100 VESA Compatible Flat Panel Displays. M8031B (15'') Display Spacer Remote Speedpoint Bracket Mounting Plate Upper Screws M4 x 16mm PHMS (2) Lower Screws M4 x 12mm PHMS (2) DU-AG-0019-10 Rev A 3/20/06 GCX Corp Page 4 of 6...
- Page 5 Down Post. A Philips-supplied clamp is required for each FMS mounted. Photo shows two (2) FMS units mounted on a 12'' Down Post. FMS (2) Mounted on Down Post DU-AG-0019-10 Rev A 3/20/06 GCX Corp Page 5 of 6...
- Page 6 Periodically check all mounting hardware. Tighten fasteners and adjust as necessary for optimal operation. Cleaning the Mounting System CAUTION: GCX makes no claims regarding the efficacy of the listed chemicals or processes as a means for controlling infection. Consult your hospital’s infection control officer or epidemiologist. To clean or sterilize mounted instruments or accessory equipment, refer to the specific instructions delivered with those products.
