Purpose:

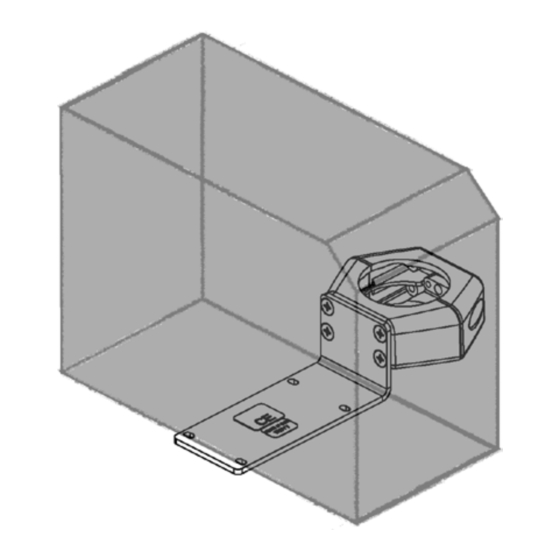

To describe the installation of the mounting options for the GE Healthcare PRN-50M Plus
Parts Reference

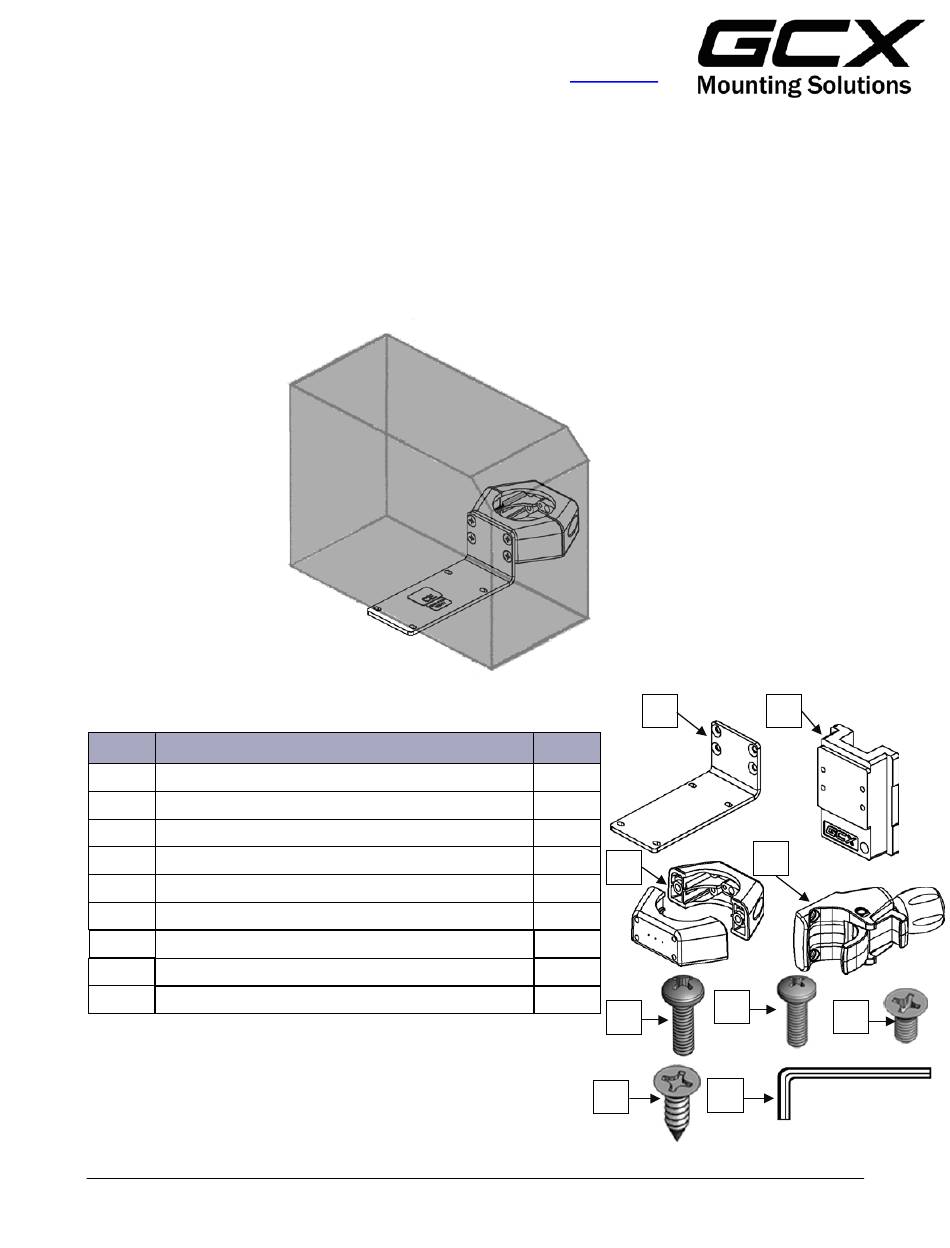

The following parts and hardware are included in this installation kit:
Description
Item #
1
Mounting Adaptor for PRN-50M Plus
2
Wall Channel Slide
3
Clamping Blocks for 2" Diameter Post
4
Pole/ Rail Clamp
5
10-32 x 9/16 Pan Head Machine Screw (PHMS)
6
M4 x 12 Pan Head Machine Screw (PHMS)
7
10-32 x 3/8 Flat Head Machine Screws (FHMS)
8
#10 x 5/8 Flat Head Sheet Metal Screws (FHSMS)
9
1/8" Hex Wrench
Tools Required:
•
1/8" Hex Wrench (provided)
•
Phillips Screwdriver (not provided)
Installation Guide
Mounting Assembly for PRN-50M Plus
(Refer to qualified personnel)
DU-GEM-0026-56 Rev A 10/06/14 GCX Corp Page 1 of 3
www.gcx.com
1
Qty
1
1
1
1
3
2
4
2
4
1
6
5
9
8
2
4
7
